1 1 points eBook Print References A crane is oriented so that the end of the 25-m boom AO lies in the yz plane.

image text in transcribedimage text in transcribedimage text in transcribed

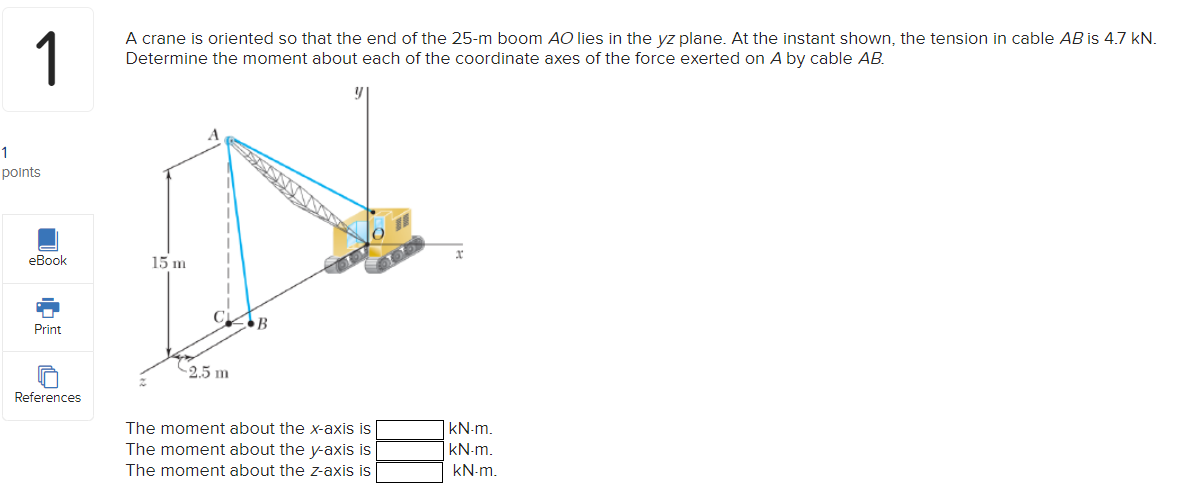

1 1 points eBook Print References A crane is oriented so that the end of the 25-m boom AO lies in the yz plane. At the instant shown, the tension in cable AB is 4.7 kN. Determine the moment about each of the coordinate axes of the force exerted on A by cable AB. 15 m -2.5 m B The moment about the x-axis is The moment about the y-axis is The moment about the z-axis is KN-m. KN-m. KN-m. 2 1 points eBook * of Print References The 0.611.00-m lid ABCD of a storage bin is hinged alongside AB and is held open by looping cord DEC over a frictionless hook at E. If the tension in the cord is 63 N, determine the moment about each of the coordinate axes of the force exerted by the cord at D. 0.3 m E 0.7 m 0.11 m 0.71 m B The moment about each of the coordinate axes of the force exerted by the cord at Dare MX- and Mz= N-m. |N.m, My= N-m, 3 1 points A force P of magnitude 500 lb acts on the frame shown at point E. Determine the moment of P about a line joining points O and D. 10 in. 30 in. B D eBook E 7.5 in. Print 7.5 in. References G 10 in. x 10 in. H The moment of P about a line joining points O and D is Ib-in.
