1. For the beam shown in the figures below, construct the bending moment and shear force diagrams for the beam using the relationships between

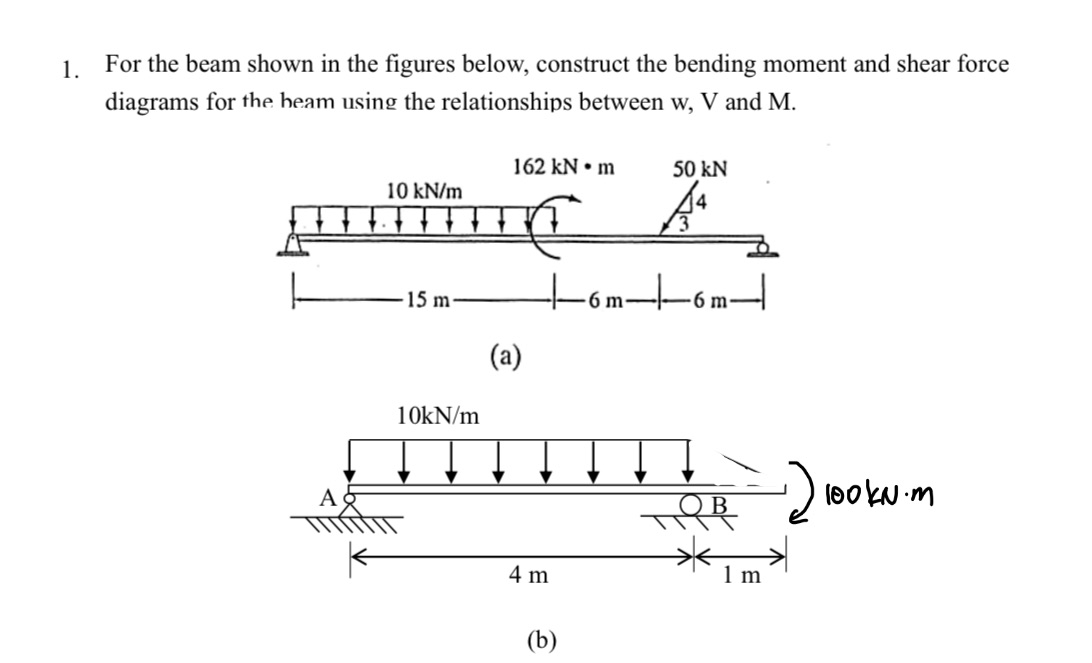

1. For the beam shown in the figures below, construct the bending moment and shear force diagrams for the beam using the relationships between w, V and M. 10 kN/m 162 kN m 50 kN |6m|6m| m- 15 m 10kN/m (a) 4 m (b) 1 m 100kn.m
