$1$ Sample Solution $\backslash$table$[[$Area$,\backslash$table TOPOLOGY

BACKGROUND

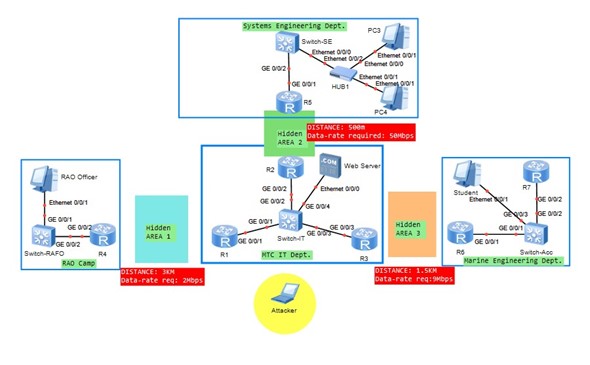

The RAO officer at RAO camp and the student at the Marine Engineering Dept. are trying to access the Web Server in the IT Department through the network above.

There are missing technologies, protocols, devices, and connections in the hidden areas $1,2$ and $3.$ Your task is to investigate the possible technologies, protocols, devices, and communication media that should be placed in the missing areas in order to achieve connectivity and security.

Additionally, while choosing the possible media to use, you must consider their effectiveness and cost for the given distances and required data rates.

Moreover, security is very important in the above network, therefore you also need to investigate security threats imposed by the attacker and how to protect the network from those threats.

There can be any devices and communication media hidden inside each area. e$.$g$.$ switches, routers, hubs, access points, UTP cables, optical fiber cables, etc...

Table $1$ below must be used to help students in investigating the optimal network media solution $($in terms of cost vs$.$ performance$)$

TASKS

$1-$ Investigate what technologies, protocols, communication media, and devices should be used in the hidden area $1,$ area $2,$ and area $3$ considering the geographical distances, cost effectiveness, security, and performance efficiency $($minimum data$-$rate required$).$

$2-$ Students are expected to use their proposed devices, technologies, and protocols to achieve connectivity from the RAO officer and the student to the Web server.

$3-$ Students are required to write a report $($with a minimum of $800$ words$),$ containing, as sections, the following: a$-$ Introduction b$-$ Problem statement c$-$ Proposed technologies, protocols, and devices d$-$ Justification of using the proposed technologies, protocols, and devices.

Use a table $($or tables$)$ in this section, a not real example, may not work: Table $1$ Sample Solution

Area Device, protocol, or technology used Justification Alternatives

AREA $12$ S$5700$ switches R$1$ should be $....$ R $4$ should be$....$ We can use $2$ hubs instead, because, etc...

$1$ AR$2220$ router in the middle of switches To connect the new switches We can use AR$1220$ router, because, etc...

$1$ Hub connected to R$1$ To do$,$ etc. $....$ we can use S$5700$ switch instead, bec

e$-$ Based on table $1,$ what will be the chosen communication media used between all buildings?

f$-$ Justify your answer in point $($e$)$ using numbers $($data$-$rate required vs$.$ cost vs$.$ distance$)$ You must use a table $($tables$)$ based on the previous table $($in point d$)$ in this section, a not real example, may not work $($Please note that costs, maximum length and data$-$rate can be found in table $4$ at the end of this report :

Table $2$ Sample Solution

Area Direct or Indirect connection Details Type Total

Length Total

Cost Justification

AREA

$1$ Indirect From R$1$ to the new AR$2200$ UTP$-5100$m $350$ OMR Because it is cheaper yet can deliver the same data$-$rate as

UTP$-6$

From AR$2220$ to the new switch UTP$-550$m Because etc...

etc... etc... etc... Because etc...

AREA

$2$ Direct R$2$ to R$5$ UTP$-6$ etc... etc... etc...

g$-$ Final topology. Redraw the topology after inserting the new devices and media. $($Screenshot$)$ h$-$ Addressing and Subnetting tables for each building $($IT dept., Systems Engineering Dept. RAO campus, and students accommodation$)$

i$-$ Verification of connectivity $($Screenshots of pings between RAO officer, the student, and the web server$)$ j$-$ Protocols used, a not real example, may not work:

Table $3$ Sample Solution

Location Protocol Used Justification

Systems Engineering Dept.

LAN OSPF For intranet routing

etc...

etc...

k$-$ Security threats: what are the possible security threats in this scenario, and in your opinion what devices or mechanisms you should use in order to prevent such security threats.

l$-$ Conclusion: you should mention the reasons why a certain device worked or did not work, limitations of certain technologies or devices that did not achieve connectivity, and challenges you may have faced during working with the topology.

Table $4$ Types of media that can be used $($Some are dummy data$)$

Type of communication media Range $($in meters$)$ Max. Data Rate Cost $($OMR per meter$)$

Cat $5$ UTP Up to $100$ Up to $100$ Mbps $1$

Enhanced Cat $5$ UTP Up to $100$ Up to $1000$ Mbps $1\mathrm{.}2$

Cat $6$ UTP Up to $100$ Up to $10$ Gbps $1\mathrm{.}5$

Coaxial Cables $200-500$ Up to $10$ Mbps $1\mathrm{.}3$

Shielded Foil Twisted

Pair Up to $100$ Up to $100$ Mbps $1\mathrm{.}4$

Cat $7$ Shielded$-$

Screen Twisted Pair Up to $100$ Up to $15$ Gbps $2\mathrm{.}2$

Fiber Optic Cables $2000-100,000100$ Mbps $1$ Gbps $5$

$$ Note: You may need to use a repeater for distances beyond the maximum length of a certain cable, the cost of each repeater is $15$ OMR

m$-$ Assuming you have given the $192\mathrm{.}168\mathrm{.}30\mathrm{.}0/24$ network address to subnet the above topology. Determine the number of networks needed and th
