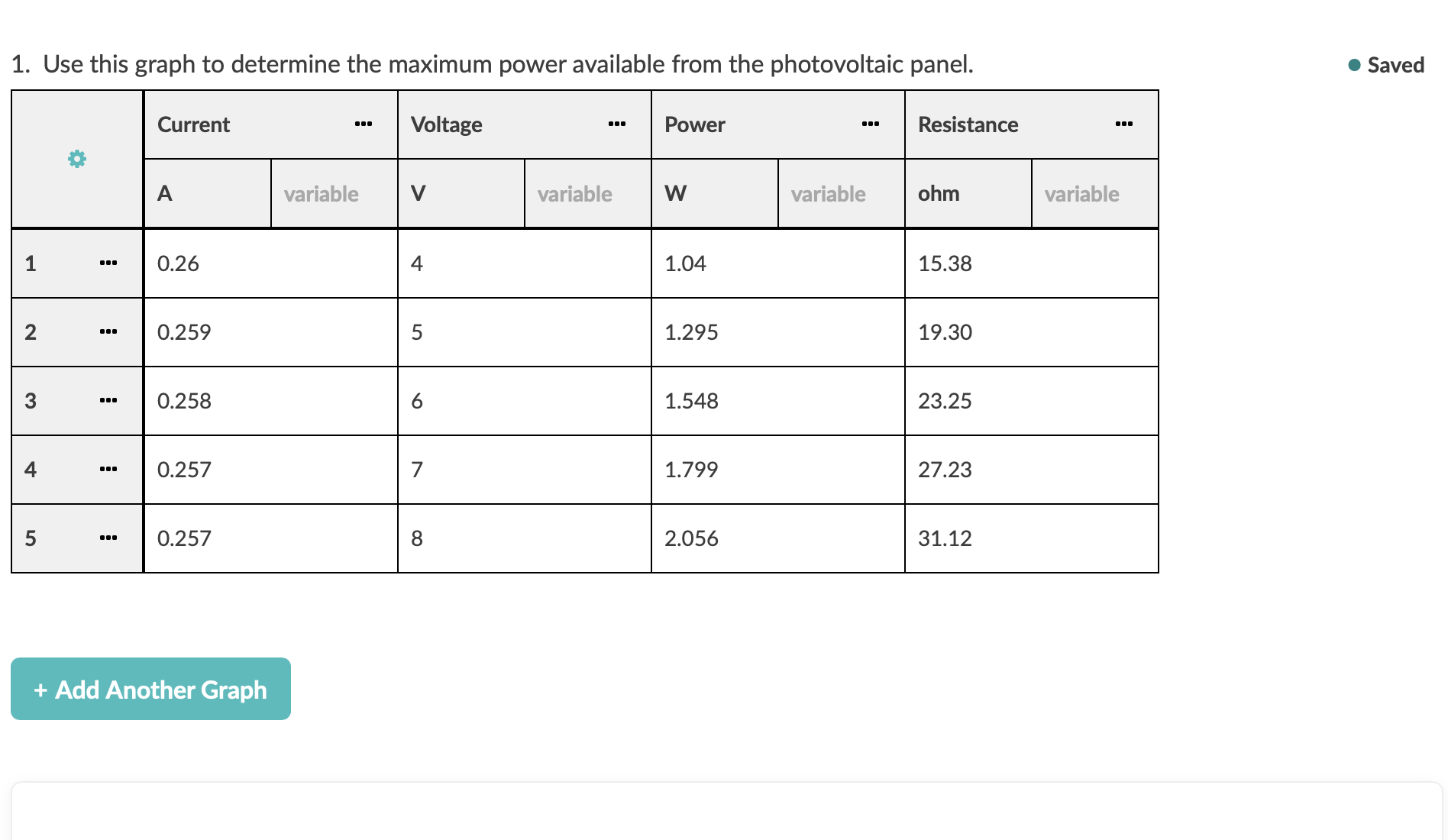

1. Use this graph to determine the maximum power available from the photovoltaic panel. Resistance + Add Another Graph I Saved power= IV vs R=

image text in transcribedimage text in transcribedimage text in transcribedimage text in transcribedimage text in transcribed

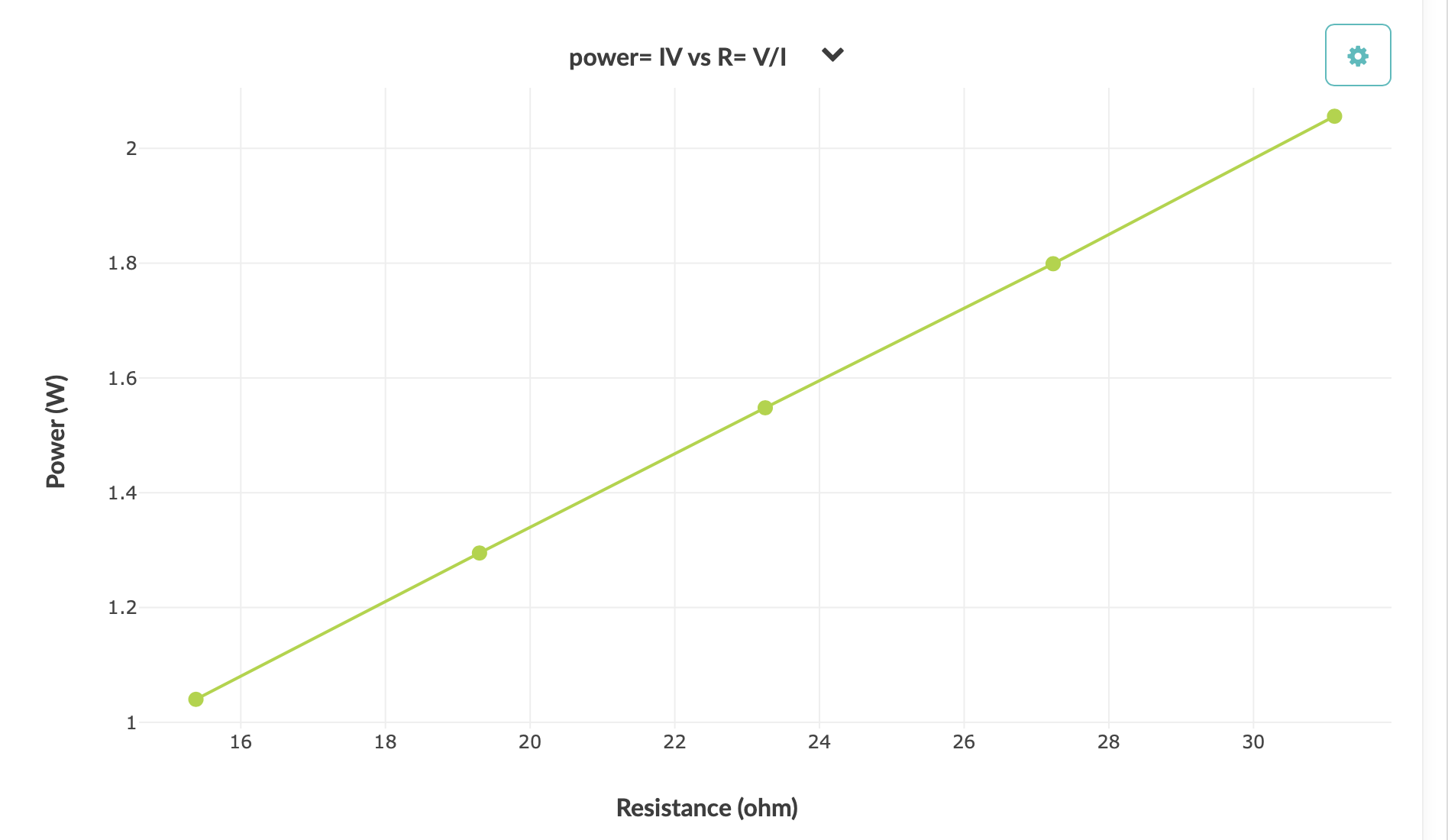

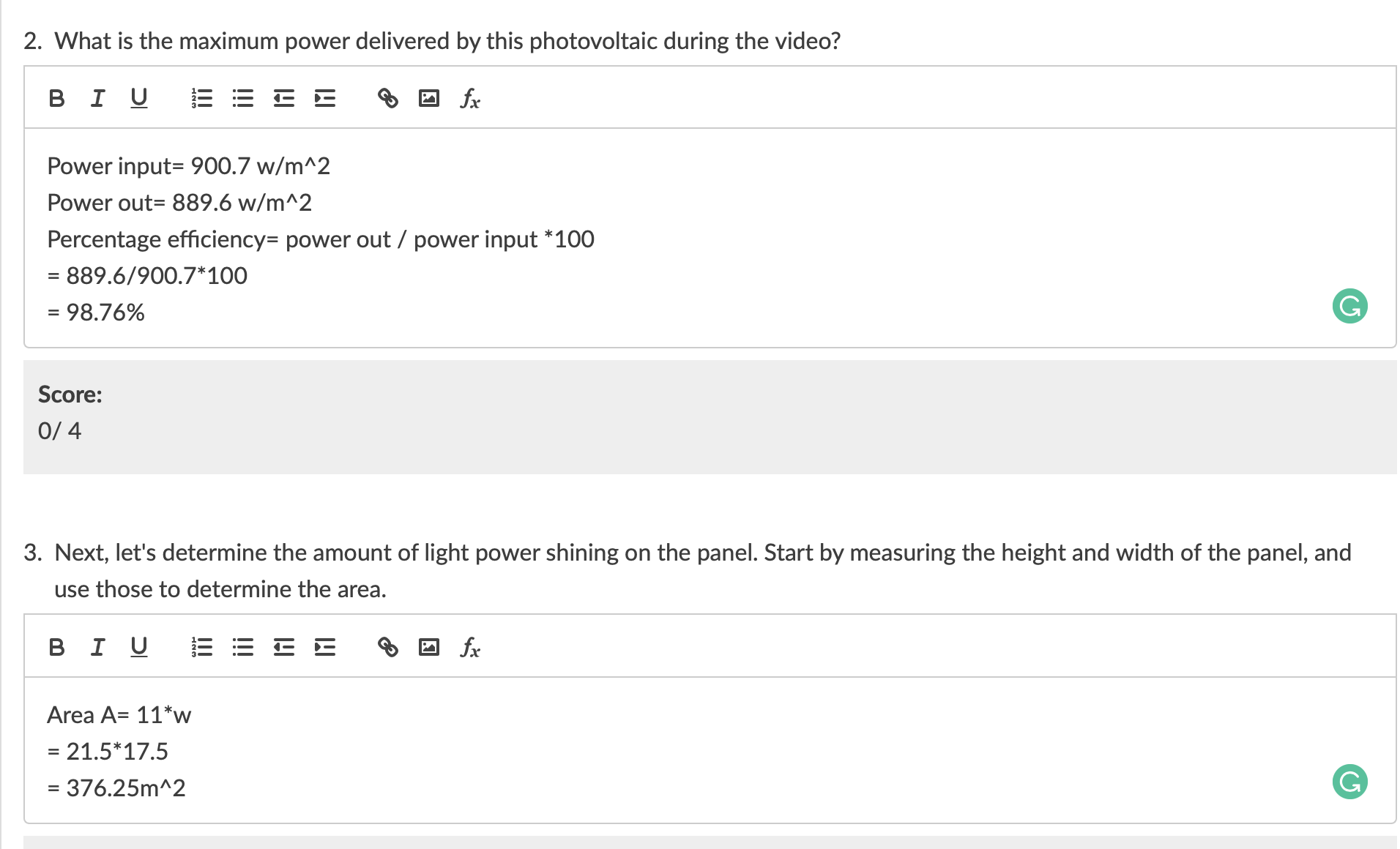

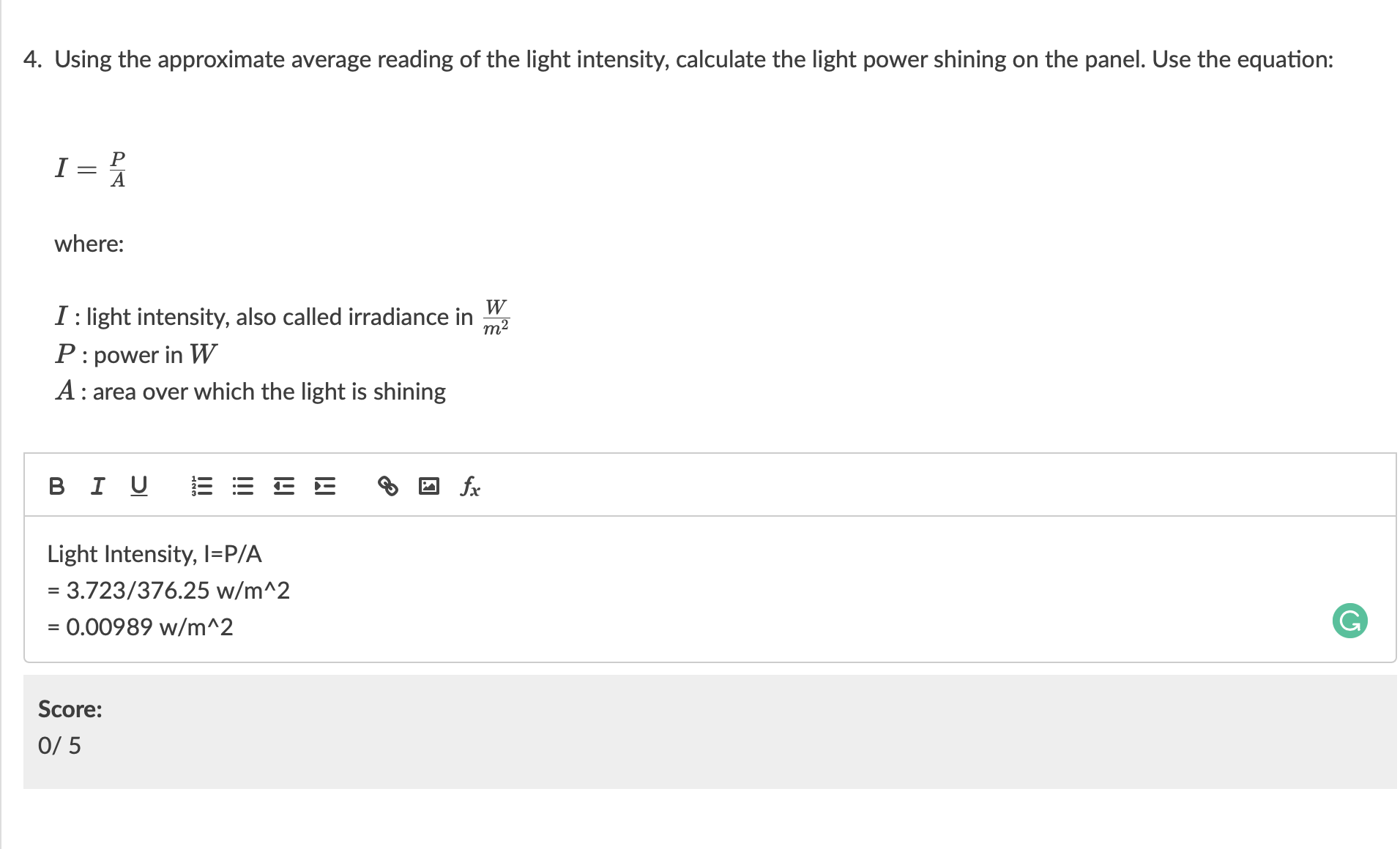

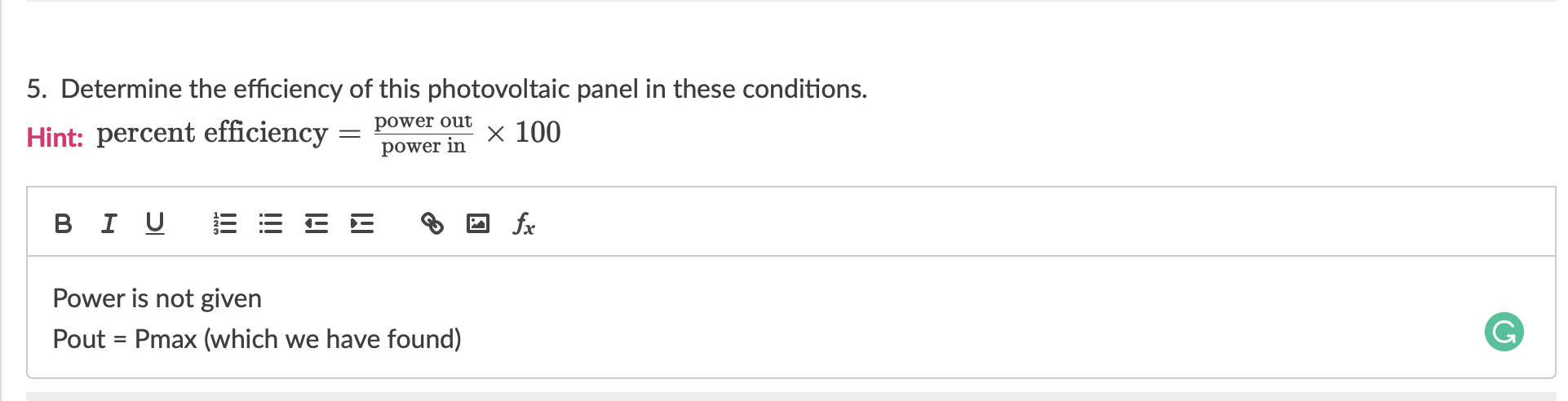

1. Use this graph to determine the maximum power available from the photovoltaic panel. Resistance + Add Another Graph I Saved power= IV vs R= V/I V N 1.8 1.6 Power (W) 1.4 1.2 16 18 20 22 24 26 28 30 Resistance (ohm)2. What is the maximum power delivered by this photovoltaic during the video? BIU EEEE Of Power input= 900.7 w/m^2 Power out= 889.6 w/m^2 Percentage efficiency= power out / power input *100 = 889.6/900.7*100 = 98.76% G Score: 0/ 4 3. Next, let's determine the amount of light power shining on the panel. Start by measuring the height and width of the panel, and use those to determine the area. BIU FEFE Of Area A= 11*w = 21.5*17.5 = 376.25m^2 G4. Using the approximate average reading of the light intensity, calculate the light power shining on the panel. Use the equation: I = A where: I : light intensity, also called irradiance in my P : power in W A : area over which the light is shining BIVBEEE Light Intensity, I=P/A = 3.723/376.25 w/m^2 = 0.00989 w/m^2 G Score: 0/ 55. Determine the efficiency of this photovoltaic panel in these conditions. Hint: percent efficiency = power out power in X 100 BIU fx Power is not given Pout = Pmax (which we have found) G
