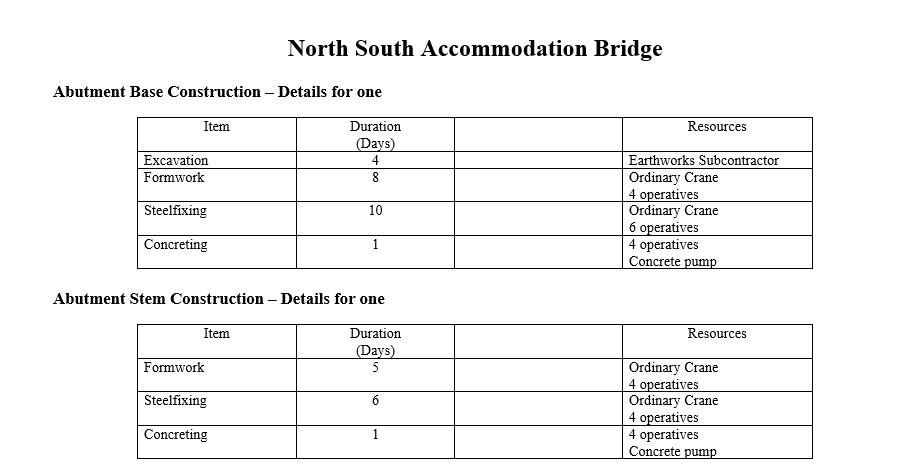

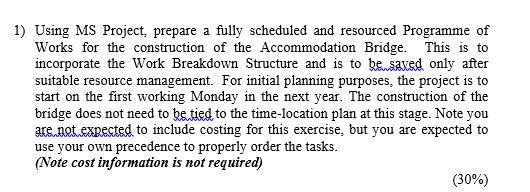

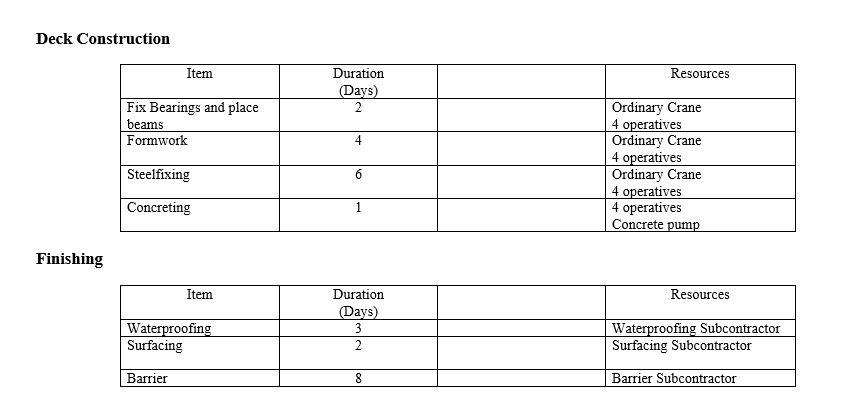

1) Using MS Project, prepare a fully scheduled and resourced Programme of Works for the construction of the Accommodation Bridge. This is to incorporate the Work Breakdown Structure and is to be saved only after suitable resource management. For initial planning purposes, the project is to start on the first working Monday in the next year. The construction of the bridge does not need to be tied to the time-location plan at this stage. Note you are not expected to include costing for this exercise, but you are expected to use your own precedence to properly order the tasks. (Note cost information is not required) (30%) North South Accommodation Bridge Abutment Base Construction - Details for one Item Resources Duration (Days) 4 8 Excavation Formwork Steelfixing 10 Earthworks Subcontractor Ordinary Crane 4 operatives Ordinary Crane 6 operatives 4 operatives Concrete pump Concreting 1 Abutment Stem Construction - Details for one Item Resources Duration (Days) 5 Formwork Steelfixing 6 Ordinary Crane 4 operatives Ordinary Crane 4 operatives 4 operatives Concrete pump Concreting 1 Deck Construction Item Resources Duration (Days) 2 Fix Bearings and place beams Formwork Steelfixing Ordinary Crane 4 operatives Ordinary Crane 4 operatives Ordinary Crane 4 operatives 4 operatives Concrete pump 6 Concreting 1 Finishing Item Resources Waterproofing Surfacing Duration (Days) 3 2 Waterproofing Subcontractor Surfacing Subcontractor Barrier 8 Barrier Subcontractor Access Road Long Section Junction to A65 Quarry 1 2 3 6 8 9 10 Chainage (km) 7.5 km Culvert 0.5 km Overhead electricity line diversion 3 km Culvert 5 km Accommodation Bridge Cut Fill Cut Fill Cut 20000m 40000m 20000m 60000m 10000 m 10000 m 15000m 1) Using MS Project, prepare a fully scheduled and resourced Programme of Works for the construction of the Accommodation Bridge. This is to incorporate the Work Breakdown Structure and is to be saved only after suitable resource management. For initial planning purposes, the project is to start on the first working Monday in the next year. The construction of the bridge does not need to be tied to the time-location plan at this stage. Note you are not expected to include costing for this exercise, but you are expected to use your own precedence to properly order the tasks. (Note cost information is not required) (30%) North South Accommodation Bridge Abutment Base Construction - Details for one Item Resources Duration (Days) 4 8 Excavation Formwork Steelfixing 10 Earthworks Subcontractor Ordinary Crane 4 operatives Ordinary Crane 6 operatives 4 operatives Concrete pump Concreting 1 Abutment Stem Construction - Details for one Item Resources Duration (Days) 5 Formwork Steelfixing 6 Ordinary Crane 4 operatives Ordinary Crane 4 operatives 4 operatives Concrete pump Concreting 1 Deck Construction Item Resources Duration (Days) 2 Fix Bearings and place beams Formwork Steelfixing Ordinary Crane 4 operatives Ordinary Crane 4 operatives Ordinary Crane 4 operatives 4 operatives Concrete pump 6 Concreting 1 Finishing Item Resources Waterproofing Surfacing Duration (Days) 3 2 Waterproofing Subcontractor Surfacing Subcontractor Barrier 8 Barrier Subcontractor Access Road Long Section Junction to A65 Quarry 1 2 3 6 8 9 10 Chainage (km) 7.5 km Culvert 0.5 km Overhead electricity line diversion 3 km Culvert 5 km Accommodation Bridge Cut Fill Cut Fill Cut 20000m 40000m 20000m 60000m 10000 m 10000 m 15000m
