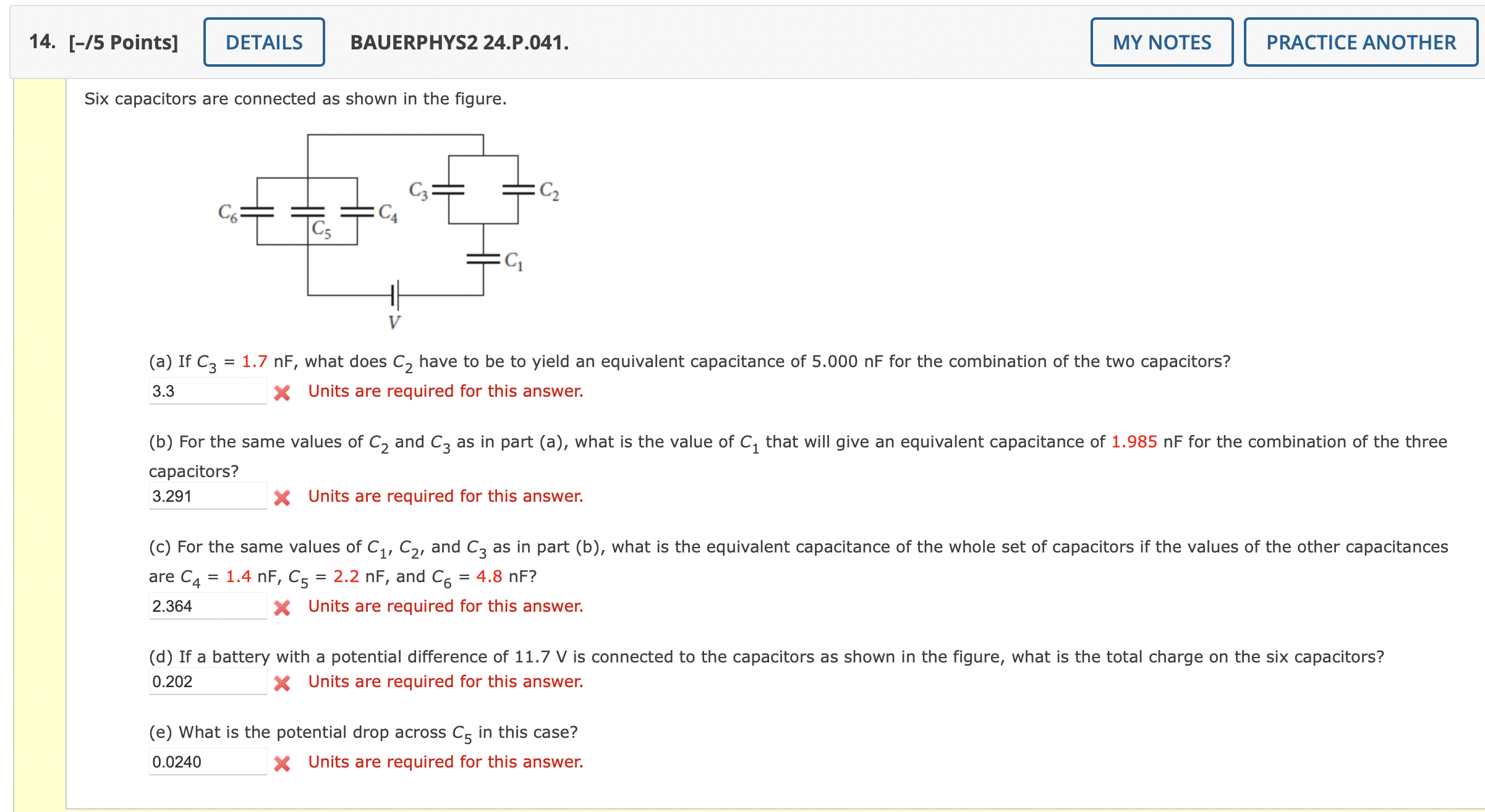

14. [-I5 Points] DETAILS BAUERPHYSZ 24.P.041. MY NOTES PRACTICE ANOTHER Six capacitors are connected as shown in the gure. (a) If C3 = 1.7 nF, what does C2 have to be to yield an equivalent capacitance of 5.000 nF for the combination of the two capacitors? 3.3 x Units are required for this answer. (b) For the same values of C2 and C3 as in part (a), what is the value of C1 that will give an equivalent capacitance of 1.985 nF for the combination of the three capacitors? 3.291 x Units are required for this answer. (c) For the same values of C1, C2, and C3 as in part (b), what is the equivalent capacitance of the whole set of capacitors if the values of the other capacitances are C4 = 1.4 nF, C5 = 2.2 nF, and C6 = 4.8 nF? 2.364 X Units are required for this answer. (d) If a battery with a potential difference of 11.7 V is connected to the capacitors as shown in the figure, what is the total charge on the six capacitors? 0.202 x Units are required for this answer. (e) What is the potential drop across C5 in this case? 0.0240 x Units are required for this
