[15 points] AC ANALYSIS - Find V. in the circuit below, using the source transformation technique. 0 = (1(-j4)/(Z1+5))*V_s = 1.95 + j1.56 = 2.5exp(j38.66deg)

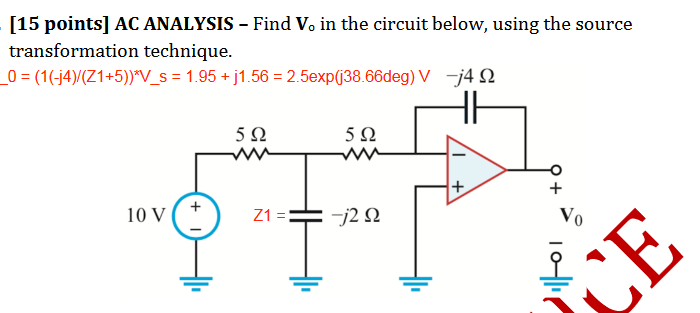

[15 points] AC ANALYSIS - Find V. in the circuit below, using the source transformation technique. 0 = (1(-j4)/(Z1+5))*V_s = 1.95 + j1.56 = 2.5exp(j38.66deg) V -j4 0 50 50 + 10 V + Z1 = Vo 1 -01

Step by Step Solution
