$20$ points

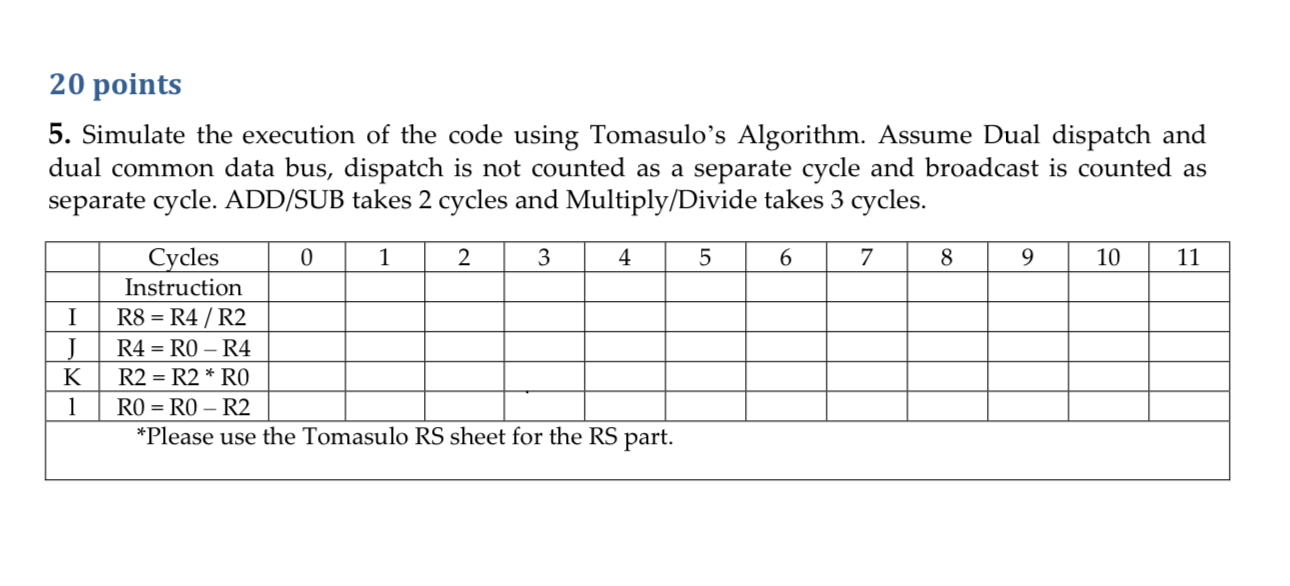

Simulate the execution of the code using Tomasulo's Algorithm. Assume Dual dispatch and

dual common data bus, dispatch is not counted as a separate cycle and broadcast is counted as

separate cycle. ADD$/$SUB takes $2$ cycles and Multiply$/$Divide takes $3$ cycles.
