2 25 points Determine the force in each member below using the Method of Joints. Use F1 = 61 kN, F2 = 92 kN and

image text in transcribed

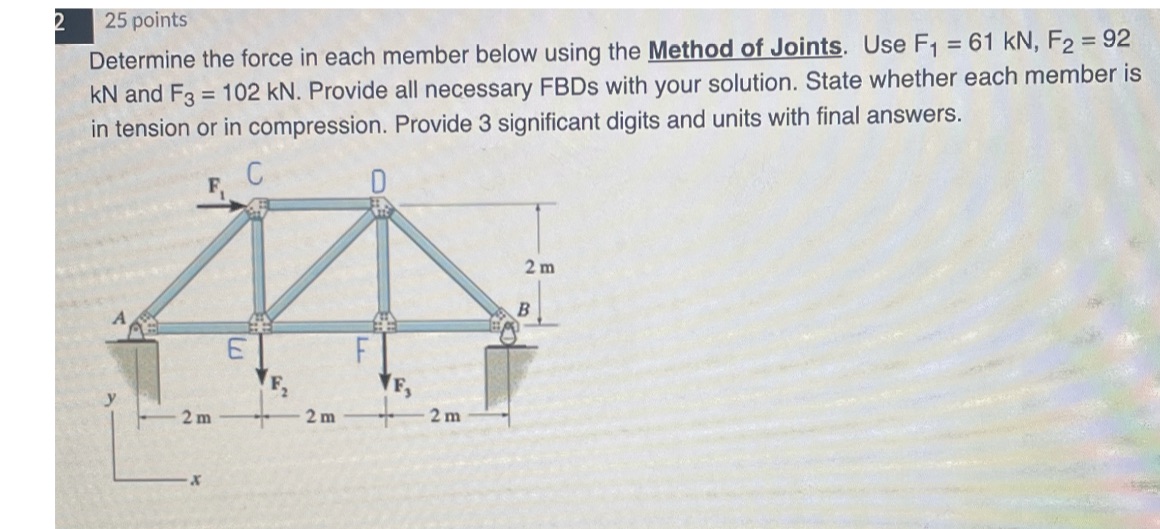

2 25 points Determine the force in each member below using the Method of Joints. Use F1 = 61 kN, F2 = 92 kN and F3 = 102 kN. Provide all necessary FBDs with your solution. State whether each member is in tension or in compression. Provide 3 significant digits and units with final answers. F. C D 2 m B E F 2 m 2 m 2 m X
