Question

1 Approved Answer

2. For the system shown below state the system type, and find the steady state error for an input of 50u(t), 50tu(t), 50tu(t), R(s)

image text in transcribed

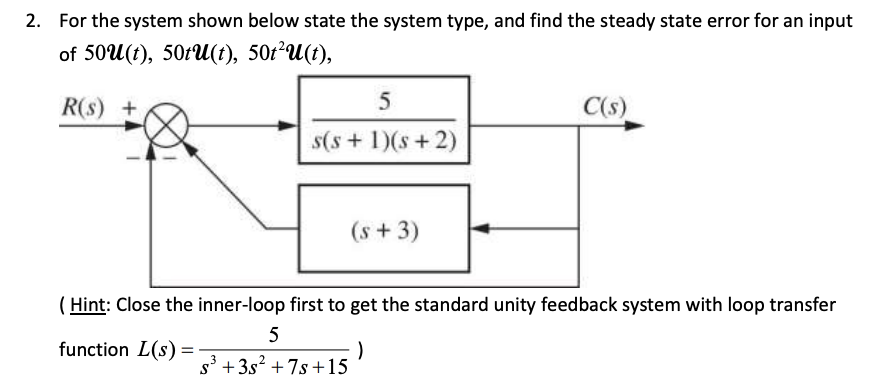

2. For the system shown below state the system type, and find the steady state error for an input of 50u(t), 50tu(t), 50tu(t), R(s) + 5 C(s) s(s+ 1)(s+2) (s+3) (Hint: Close the inner-loop first to get the standard unity feedback system with loop transfer 5 function L(s): = s3+3s+7s+15
