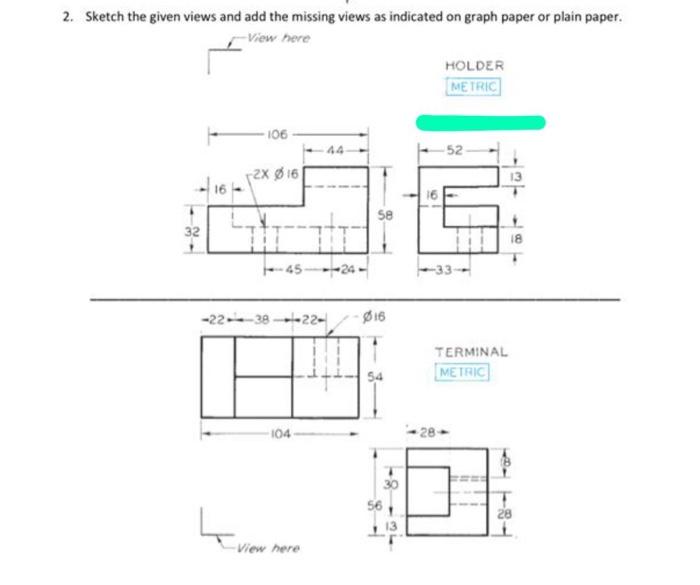

2. Sketch the given views and add the missing views as indicated on graph paper or plain paper. -View here 32 106 2X 016

image text in transcribed

2. Sketch the given views and add the missing views as indicated on graph paper or plain paper. -View here 32 106 2X 016 -45- HOLDER METRIC 44 52 58 58 -22-38-22- 016 -104- 18 TERMINAL METRIC 28 13 View here
