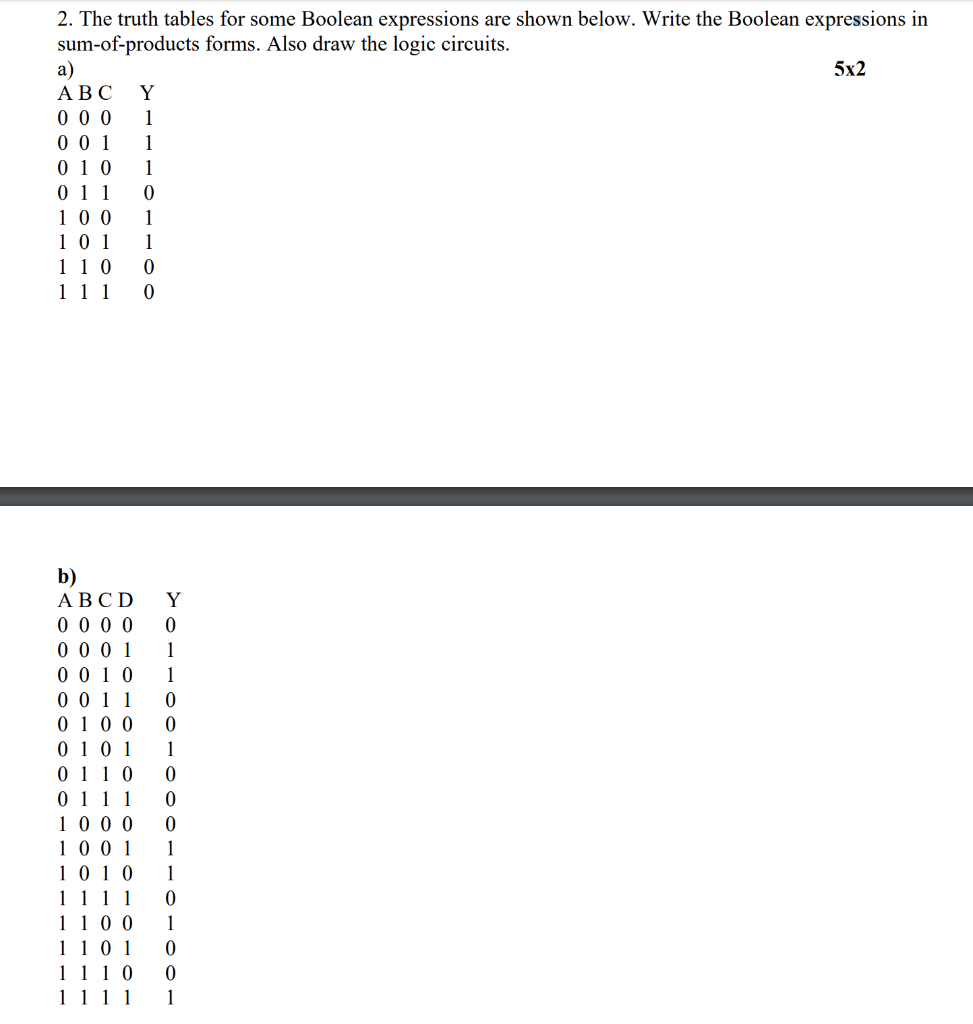

2. The truth tables for some Boolean expressions are shown below. Write the Boolean expressions in sum-of-products forms. Also draw the logic circuits. a) 5x2

image text in transcribed

2. The truth tables for some Boolean expressions are shown below. Write the Boolean expressions in sum-of-products forms. Also draw the logic circuits. a) 5x2 ABC Y 0001 001 1 0 1 0 1 011 0 100 1 101 1 110 0 111 0 b) ABCD Y 0 0 0 0 0 0001 1 0 0 1 0 1 0011 0 0100 0 0101 1 01100 0111 0 10000 1001 1 10101 1111 0 1100 1 1101 0 11100 1111 1
