2) Using the slope deflection method, determine the support moments, reactions at the external supports, and then draw to scale the shear force and bending

image text in transcribed

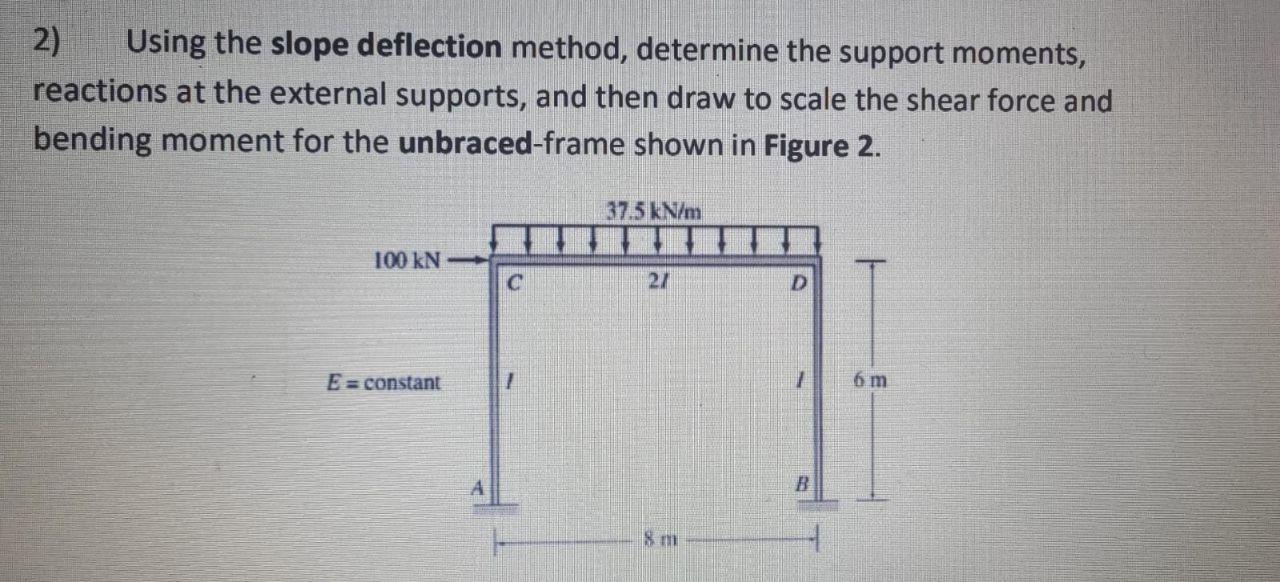

2) Using the slope deflection method, determine the support moments, reactions at the external supports, and then draw to scale the shear force and bending moment for the unbraced-frame shown in Figure 2. 37.5 kN/m 100 kN - 27 D E = constant 1 6 m A B 8 m
