3. Consider the following capacitors under charge constant condition. (a) Plot E,V through the capacitor, one with a dielectric slab and the other with both

image text in transcribed
image text in transcribed

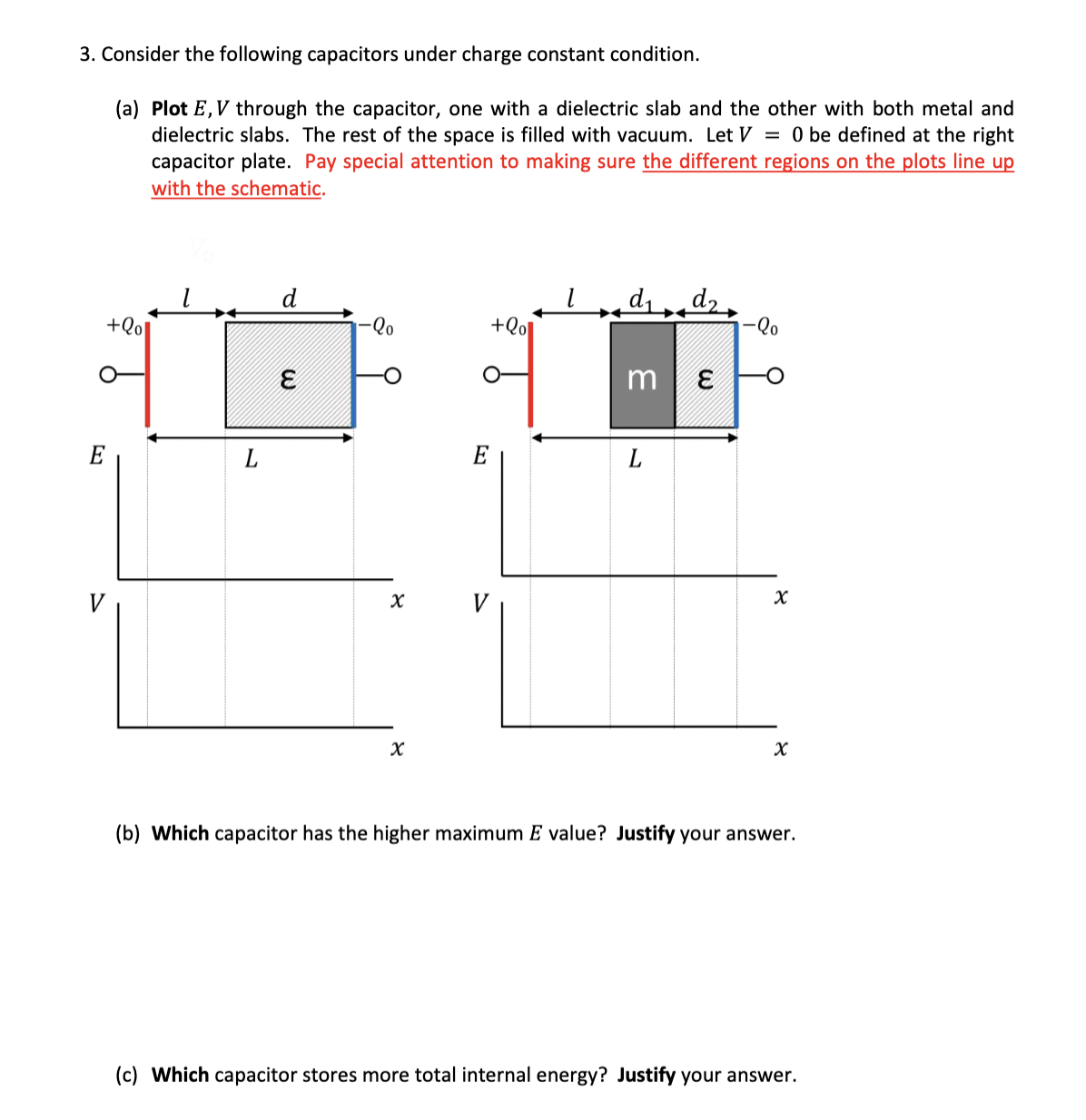

3. Consider the following capacitors under charge constant condition. (a) Plot E,V through the capacitor, one with a dielectric slab and the other with both metal and dielectric slabs. The rest of the space is filled with vacuum. Let V = 0 be defined at the right capacitor plate. Pay special attention to making sure the different regions on the plots line up with the schematic. l d l d] dz +00 '00 'l' '00 . 4:- E L V x x (b) Which capacitor has the higher maximum E value? Justify your answer. (c) Which capacitor stores more total internal energy? Justify your
