3. Consider the machine M below. What is the state set Q? Is this a Moore machine or a Mealy machine? Give the behavior q

image text in transcribed

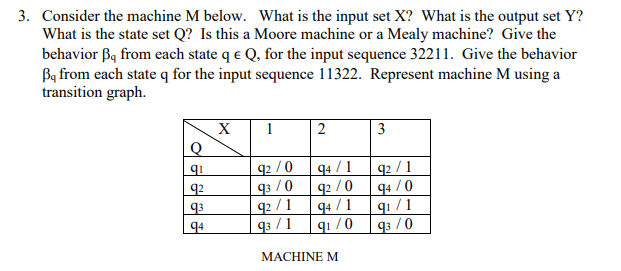

3. Consider the machine M below. What is the state set Q? Is this a Moore machine or a Mealy machine? Give the behavior q from each state q Q, for the input sequence 3221 I. Give the behavior Ba from each state q for the input sequence 11322. Represent machine M using a transition graph. What is the input set X? What is the output set Y? qps0 MACHINE M
