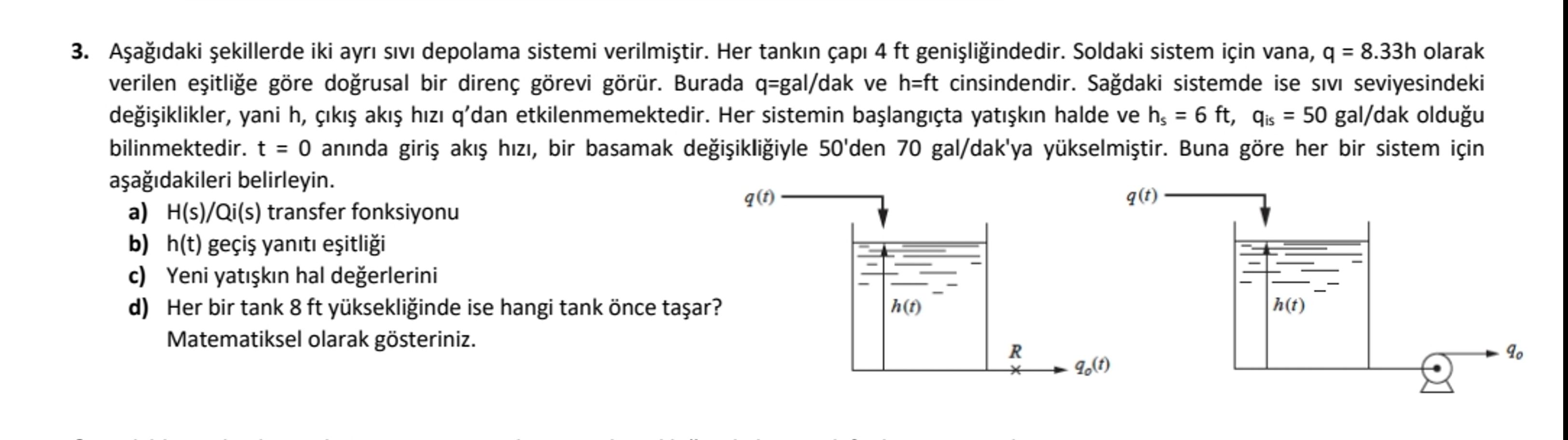

3 . Two separate liquid storage systems are given in the figures below. Each tank is 4 ft wide in diameter. Valve for left system

3.Two separate liquid storage systems are given in the figures below. Each tank is 4 ft wide in diameter. Valve for left system as q =8.33h.It acts as a linear resistance according to the given equation. Where q = gal / min and h = ft. In the system on the right, liquid level changes, h, are not affected by the outlet flow rate q. Each system is initially at steady state and hs =6 ft, qis =50 gal / min. is known. At time t =0 the inlet flow rate increased with one step change from 50 to 70 gal / min. Accordingly, for each system
determine the following
a) H (s)/ Qi (s) transfer function
b) h (t) transition response equation
c) New steady state values
d) Which tank will overflow first if each tank is 8 feet high?
Show it mathematically.
