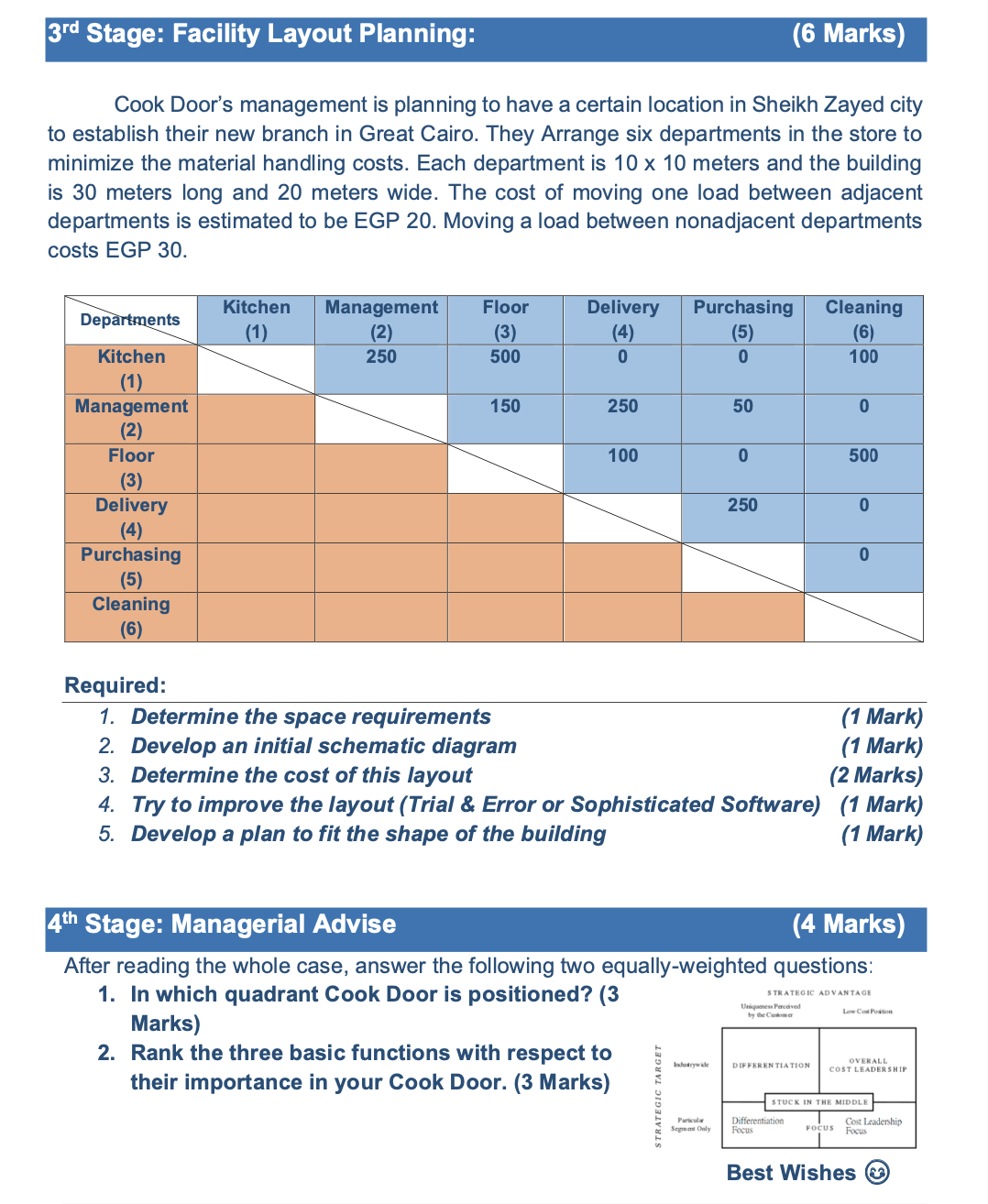

3rd Stage: Facility Layout Planning: (6 Marks) Cook Door's management is planning to have a certain location in Sheikh Zayed city to establish their new branch in Great Cairo. They Arrange six departments in the store to minimize the material handling costs. Each department is 10 x 10 meters and the building is 30 meters long and 20 meters wide. The cost of moving one load between adjacent departments is estimated to be EGP 20. Moving a load between nonadjacent departments costs EGP 30. Kitchen Management Floor Delivery Purchasing Cleaning Departments (1) (2) (3) Kitchen 250 500 (4) (5) (6) 0 0 100 (1) Management (2) Floor (3) Delivery (4) Purchasing (5) Cleaning (6) Required: 1. Determine the space requirements 150 250 50 0 2. Develop an initial schematic diagram 3. Determine the cost of this layout 100 0 500 250 0 0 (1 Mark) (1 Mark) (2 Marks) 4. Try to improve the layout (Trial & Error or Sophisticated Software) (1 Mark) 5. Develop a plan to fit the shape of the building (1 Mark) 4th Stage: Managerial Advise (4 Marks) After reading the whole case, answer the following two equally-weighted questions: 1. In which quadrant Cook Door is positioned? (3 Marks) 2. Rank the three basic functions with respect to their importance in your Cook Door. (3 Marks) STRATEGIC TARGET STRATEGIC ADVANTAGE Uniquess Parceived by the Customer Low Cost Position OVERALL Industrywide DIFFERENTIATION COST LEADERSHIP Particular Segment Only STUCK IN THE MIDDLE Differentiation Focus FOCUS Cost Leadership Focus Best Wishes
