4. Writ e a behavioral description of the state machine described by the following state diagram. Write a test bench for testing the functionality af

image text in transcribed

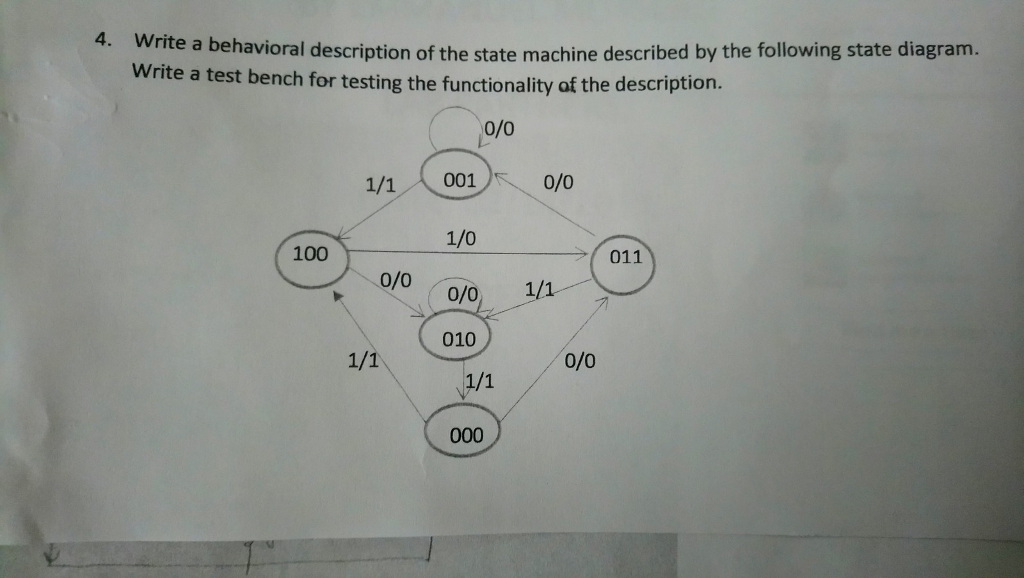

4. Writ e a behavioral description of the state machine described by the following state diagram. Write a test bench for testing the functionality af the description. 0/0 1/1 001 o/o 0/0 1/0 100 011 0/0 010 0/0 4. Writ e a behavioral description of the state machine described by the following state diagram. Write a test bench for testing the functionality af the description. 0/0 1/1 001 o/o 0/0 1/0 100 011 0/0 010 0/0
