Question

1 Approved Answer

5 ft 60 5 ft -7 ft B 6 ft Determine the smallest force F that must be applied along the rope in order

image text in transcribedimage text in transcribedimage text in transcribedimage text in transcribed

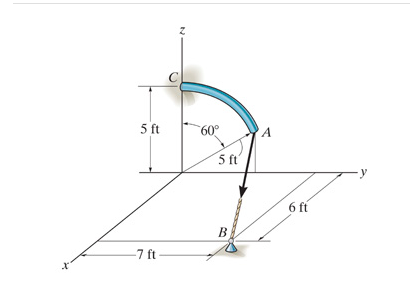

5 ft 60 5 ft -7 ft B 6 ft Determine the smallest force F that must be applied along the rope in order to cause the curved rod, which has a radius of 5 ft, to fail at the support C. This requires a moment of M = 55 lb-ft to be developed at C. Express your answer to three significant figures and include the appropriate units. The force F = {500 i - 200 j - 500 k} lb acts at the end of the beam. (Figure 1) Figure 1.5 ft B x 0.25 ft F 8 ft 1 of 1 Determine the x, y, and z components of the moment of this force about point A. Enter the components of the moment separated by commas. Express your answers in pound-feet to three significant figures.
