Question: * 6 - 7 6 . Determine the horizontal and vertical components of force which the pins at A and B exert on the frame.

*6-76. Determine the horizontal and vertical components of force which the pins at A and B exert on the frame.
Prob. 6-76
Ho
Te ?bar(c)
Ga
Ho
Un
/epubcfi/6/220[%3Bvnd.vst.idref%3DP70010177010000000000...
Figure 6-74/75 Full Alternative Text

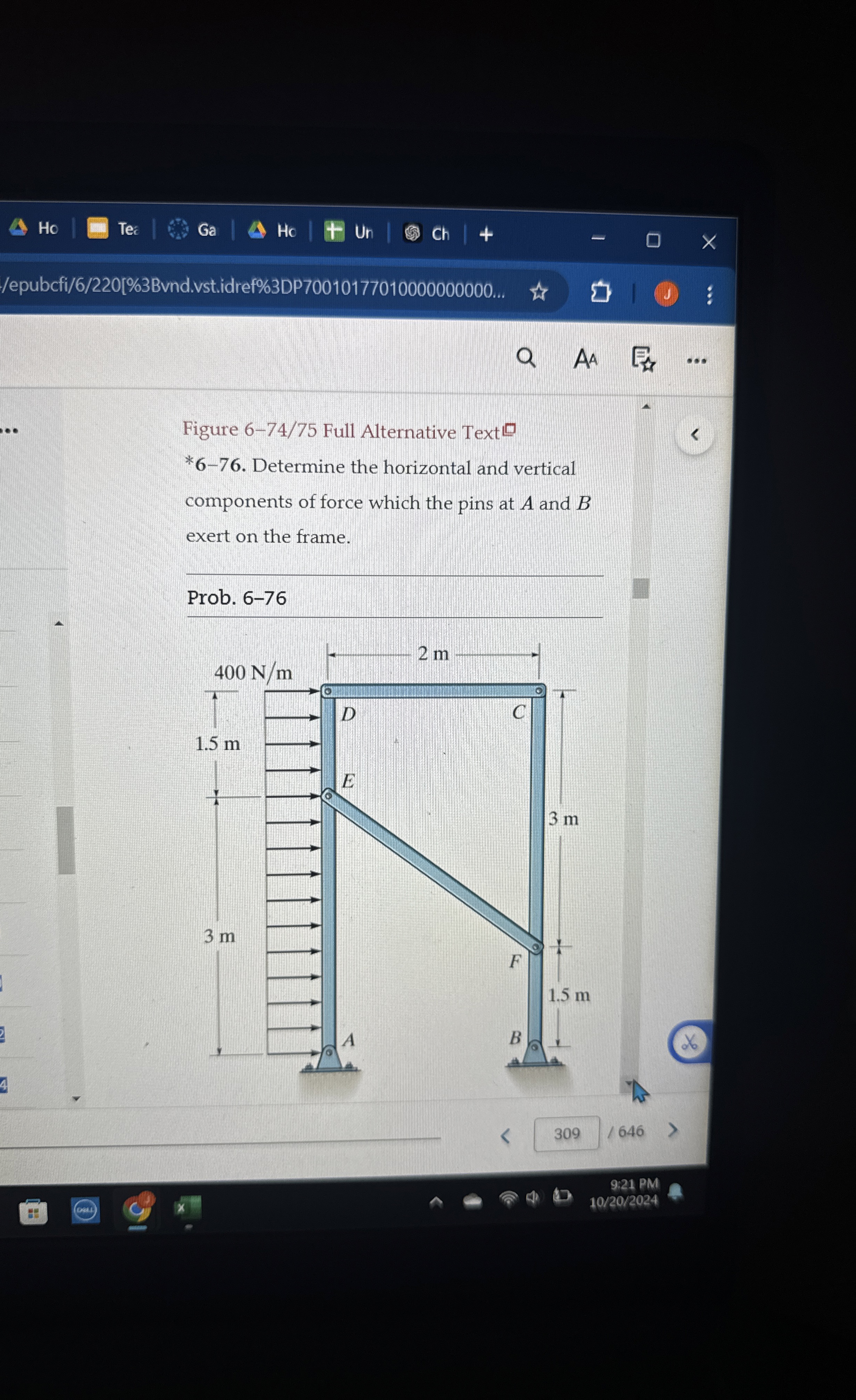

*6-76. Determine the horizontal and vertical components of force which the pins at A and B exert on the frame.
Prob. 6-76
309
1646
9:21 PM
1020?2024
* 6 - 7 6 . Determine the horizontal and vertical

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Determine the horizontal and vertical components of force that pins A and C exert on the two-member frame. 3 m C -3 m 400 N/m 500 N/m B 600 N/m

Q:

Determine the horizontal and vertical components of force that pins A and B exert on the frame. 4 m A -3 m- B C 2 kN/m

Q:

Determine the horizontal and vertical components of force that pins A and C exert on the frame. Given: F = 500 N a = 0.8 m d = 0.4 m b = 0.9 m e = 1.2 m c = 0.5 m = 45deg B F
