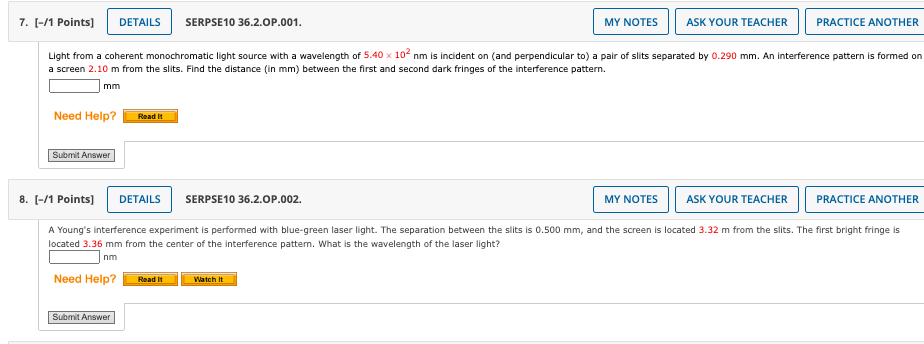

7. [-/1 Points] DETAILS SERPSE10 36.2.OP.001. MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER Light from a coherent monochromatic light source with a wavelength of 5.40 x 10" nm is incident on (and perpendicular to) a pair of slits separated by 0.290 mm. An interference pattern is formed on a screen 2.10 m from the slits. Find the distance (In mm) between the first and second dark fringes of the interference pattern. mm Need Help? Read It Submit Answer 8. [-/1 Points] DETAILS SERPSE10 36.2.OP.002. MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER A Young's interference experiment is performed with blue-green laser light. The separation between the slits is 0.500 mm, and the screen is located 3.32 m from the slits. The first bright fringe is located 3.36 mm from the center of the interference patter. What is the wavelength of the laser light? nm Need Help? Read It Watch It Submit Answer10. [-/1 Points] DETAILS SERPSE10 37.2.OP.008. MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER A laser beam is normally incident on a single slit with width 0.560 mm. A diffraction pattern forms on a screen a distance 1.35 m beyond the slit. The distance between the positions of zero intensity on both sides of the central maximum is 2.32 mm. Calculate the wavelength of the light (in nm). nm Need Help? Read It Submit Answer 11. [-/1 Points] DETAILS SERPSE10 37.4.OP.014. MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER Light from a helium-neon laser, with 1 = 632.8 nm, is normally incident on a diffraction grating, and first-order maximum occurs at # = 19.90. Calculate the spacing (in um) between adjacent grooves In the grating. Hm Need Help? Read It Submit Answer 12. [-/6 Points] DETAILS SERPSE10 37.4.P.018. MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER Three discrete spectral lines occur at angles of 10.7", 13.6, and 14.3" in the first-order spectrum of a grating spectrometer. (Assume that the light is incident normally on the gratings.) (a) If the grating has 3 680 slits/cm, what are the wavelengths of the light? (Enter your answers from smallest to largest.) nm nm nm "b) At what angles are these lines found in the second-order spectrum? (Enter your answers from smallest to largest.) Need Help? Read It Watch It Submit Answer5. [-/4 Points] DETAILS SERPSE10 35.4.OP.020. MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER A thin lens has a focal length of 25.0 cm. (a) Find the location of the image (in cm from the lens) formed by the lens when an object is placed p. = 27.5 cm in front of the lens. (Enter a negative distance if the image is in front of the lens.) cm from the lens Choose the correct description of the image. (Select all that apply.) O upright O enlarged O reduced O real O virtual O inverted (b) Find the location of the image (in cm from the lens) formed by the lens when an object is placed p, = 23.1 cm in front of the lens. (Enter a negative distance if the image is in front of the lens.) cm from the lens Choose the correct description of the image. (Select all that apply.) O enlarged O real O virtual O upright O inverted O reduced Need Help? Read It
