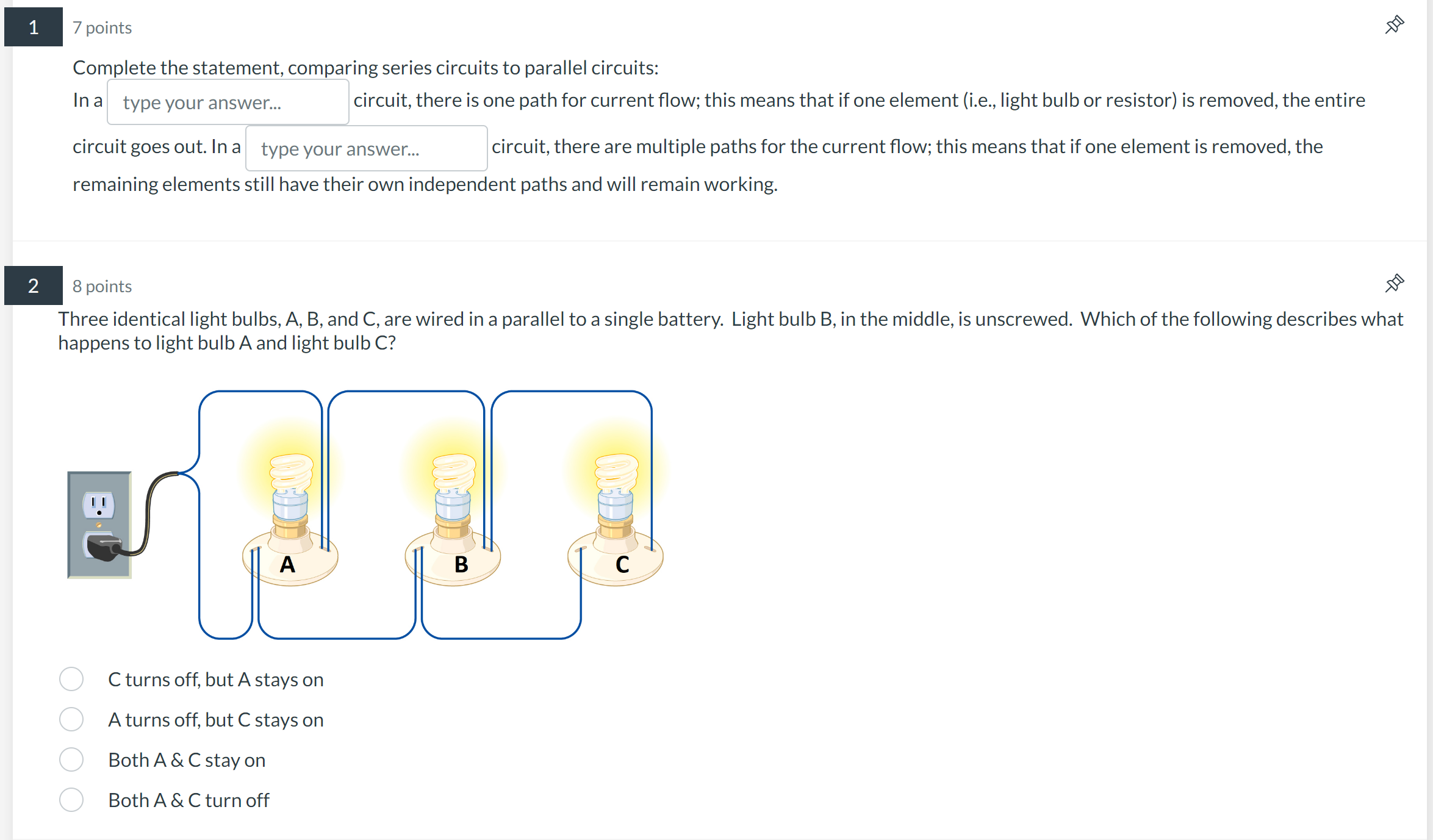

7 points Q Complete the statement, comparing series circuits to parallel circuits: In a type your answer... circuit, there is one path for current ow; this means that if one element (i.e., light bulb or resistor) is removed, the entire circuit goes out. In a type your answer... circuit, there are multiple paths for the current ow; this means that if one element is removed, the remaining elements still have their own independent paths and will remain working. 8 points Three identical light bulbs, A, B, and C, are wired in a parallel to a single battery. Light bulb B, in the middle, is unscrewed. Which of the following describes what happens to light bulb A and light bulb C? C turns off, but A stays on A turns off, but C stays on Both A & C stay on Both A & C turn off 8 points Q Match the following for resistors/bulbs wired in parallel. Current m is ZERO. Voltage is SPLIT/SHARED amongst all resistors/bulbs. is CONSTANT (the same) for all resistors/bulbs. 8 points Match the following for resistors/bulbs wired in parallel. Current V Voltage m is ZERO. is SPLIT/SHARED amongst all resistors/bulbs. > is CONSTANT (the same) for all resistors/bulbs. 8 points An ammeter can be used to measure current. To measure the current that passes through bulb A, the ammeter may only be placed at point 2 may be placed at points 2 or 11 may be placed at points 1 or 12 may be placed anywhere 8 points Q Three identical light bulbs, A, B, and C, are wired in parallel and connected to a 36 volt battery. The current through light bulb C is 20 amps. What is the value of the voltage across bulb C? Type your answerm n 8 points Three resistors, with resistances of 3 Q, 6 Q, and 7 Q are wired in parallel. What is the equivalent resistance in ohms (Q) of these three resistors? Note: Enter answer to one decimal place. Type your answer... 8 points There are three identical resistors, R1, R2, and R3, wired in parallel to a single battery. The voltage across each resistor is 8 volts. What is the total voltage of the battery? R1 R2 R3 Type your answer... a 5 points Q Given two resistors in parallel, where the current through the rst resistor is 2.0 A, the current through the second resistor is 0.5 A, and the power lost in the rst resistor is 10 W, calculate the voltage across the rst resistor in volts (V). Note: Enter answer as a whole number. Type your answer... 19 5 points Given two resistors in parallel, where the current through the first resistor is 2.0 A, the current through the second resistor is 0.5 A, and the power lost in the first resistor is 10 W, calculate the resistance of the first resistor in ohms (1). Note: Enter answer to one decimal place. Type your answer... 10 5 points Given two resistors in parallel, where the current through the first resistor is 2.0 A, the current through the second resistor is 0.5 A, and the power lost in the first resistor is 10 W, calculate the resistance of the second resistor in ohms (). Note: Enter answer as a whole number. Type your answer... 11 5 points Given two resistors in parallel, where the current through the first resistor is 2.0 A, the current through the second resistor is 0.5 A, and the power lost in the first resistor is 10 W, calculate the equivalent resistance of the circuit in ohms ($). Note: Enter answer as a whole number. Type your answer... 12 5 points Given two resistors in parallel, where the current through the first resistor is 2.0 A, the current through the second resistor is 0.5 A, and the power lost in the first resistor is 10 W, calculate the total power lost in the circuit in watts (W). Note: Enter answer to one decimal place. Type your answer...5 points Q Three resistors with resistances of 39, 49, and 120 are in parallel. If the total current running through the circuit is 60A, calculate the equivalent resistance of the circuit in Q.\\ Note: Enter answer to one decimal place. Type your answer... 5 points Q Three resistors with resistances of 30, 49, and 129 are in parallel. If the total current running through the circuit is 60A, calculate the voltage of the battery in V Note: Enter answer as a whole number. Type your answer... 5 points > Three resistors with resistances of 30, 49, and 129 are in parallel. If the total current running through the circuit is 60A, calculate the current through the rst resistor in A. Note: Enter answer as a whole number. Type your answer... 5 points Three resistors with resistances of 30, 49, and 129 are in parallel. If the total current running through the circuit is 60A, calculate the current through the second resistor in A. Note: Enter answer to one decimal place. Type your
