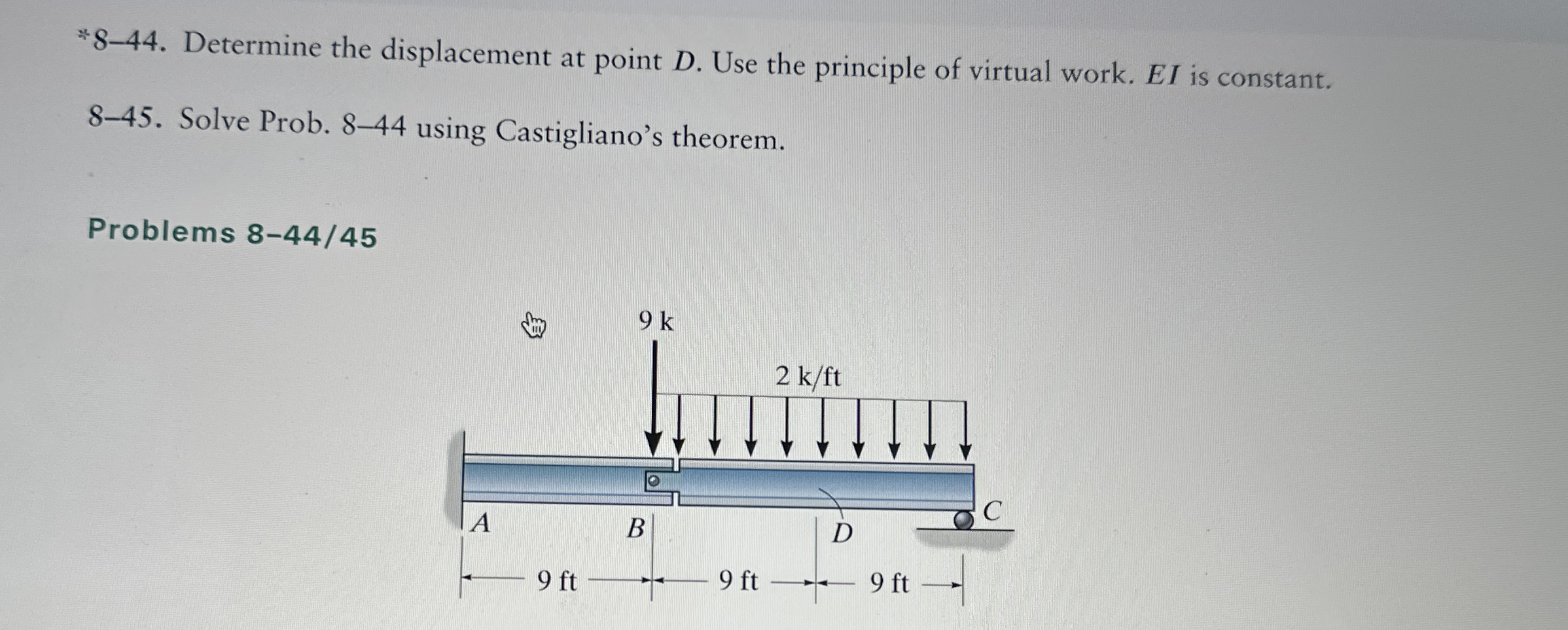

Question: * 8 - 4 4 . Determine the displacement at point D . Use the principle of virtual work. E I is constant. 8 -

*8-44. Determine the displacement at point D. Use the principle of virtual work. EI is constant.
8-45. Solve Prob. 8-44 using Castigliano's theorem.
Only solve 8-45
* 8 - 4 4 . Determine the displacement at point D

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
