8085 processor is a popular processor that is usually used to explain how microprocessors work. The processor is an 8-bit microprocessor and can access a

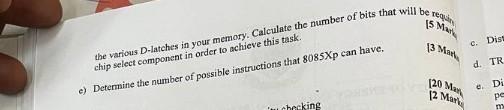

image text in transcribed

image text in transcribed

8085 processor is a popular processor that is usually used to explain how microprocessors work. The processor is an 8-bit microprocessor and can access a maximum of 64KB memory. You are to design an upgrade of the 8085 microprocessor with enhance features. Your upgraded microprocessor will be called 8085Xp, which should have a 32 bit address bus and 16 bits bidirectional data bus for transferring data to and from the memory as well as the lower order of the address values. a) Draw and label buses that connects the 8085 processor and a memory module. [4 Marks] b) Draw and label buses that connects the 8085Xp processor and a memory module. [6 Marks] c) Determine the amount of memory that can be accessed by the 8085Xp processor. [2 Marks] d) Assuming that each memory chip on your memory module of your 8085Xp upgrade can store IMB. You will therefore require a chip select in order to read/write data to and from the various D-latches in your memory. Calculate the num ctions that 8085Xp can have
