Question: * 9 - 4 0 . Use the method of virtual work and determine the slope at A of the beam made from steel. E

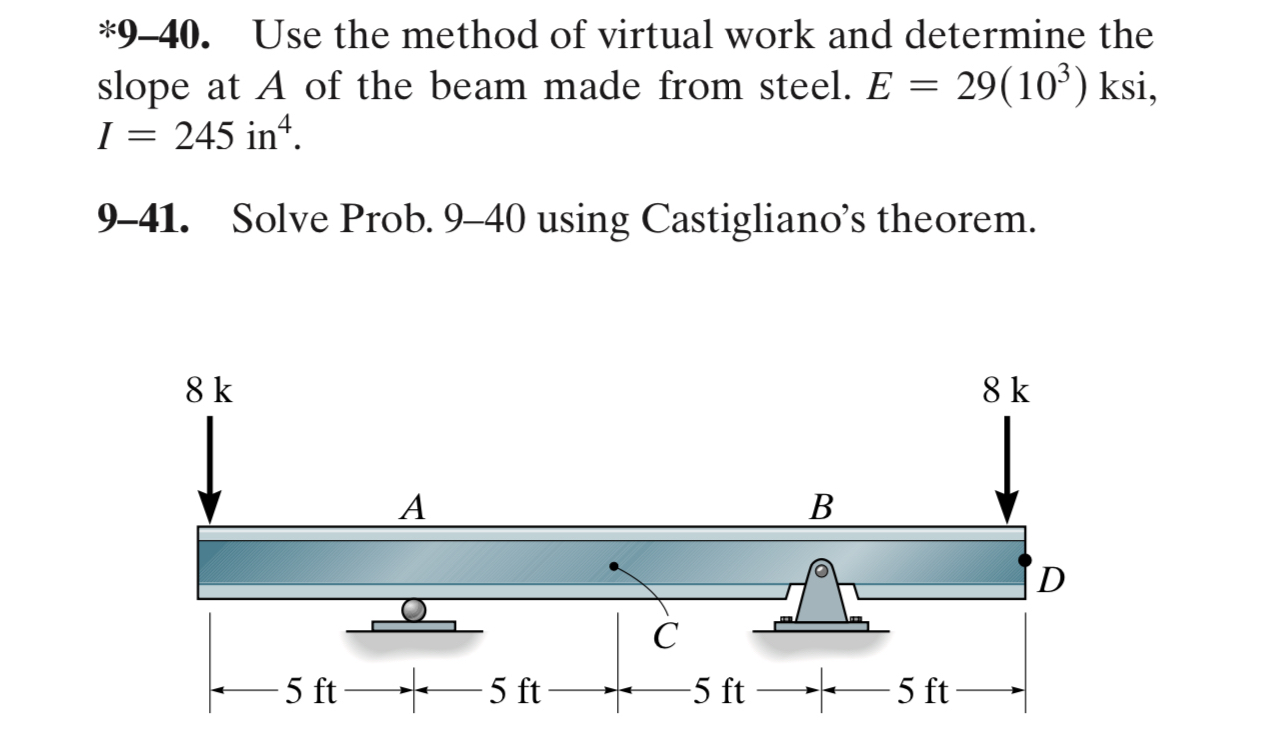

*9-40. Use the method of virtual work and determine the slope at A of the beam made from steel. E=29(103)ksi,I=245 in ?4.
9-41. Solve Prob. 9-40 using Castigliano's theorem.
Solve both methods
* 9 - 4 0 . Use the method of virtual work and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
