Question

1 Approved Answer

Posted on Sep 08, 2024

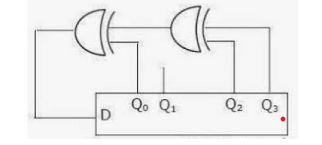

A 4 - bit shift register, which shifts 1 bit to the right at every clock pulse, The D input is derived from Q 0

4 -

bit shift register, which shifts

1

bit to the right at every clock pulse, The D input is derived from Q

0,

2

and Q

3

through two

2 -

input XOR gates as shown in figure. a

)

At what values should the shift register be initialized so that the pattern

(1101)

occurs after the second clock pulse?
