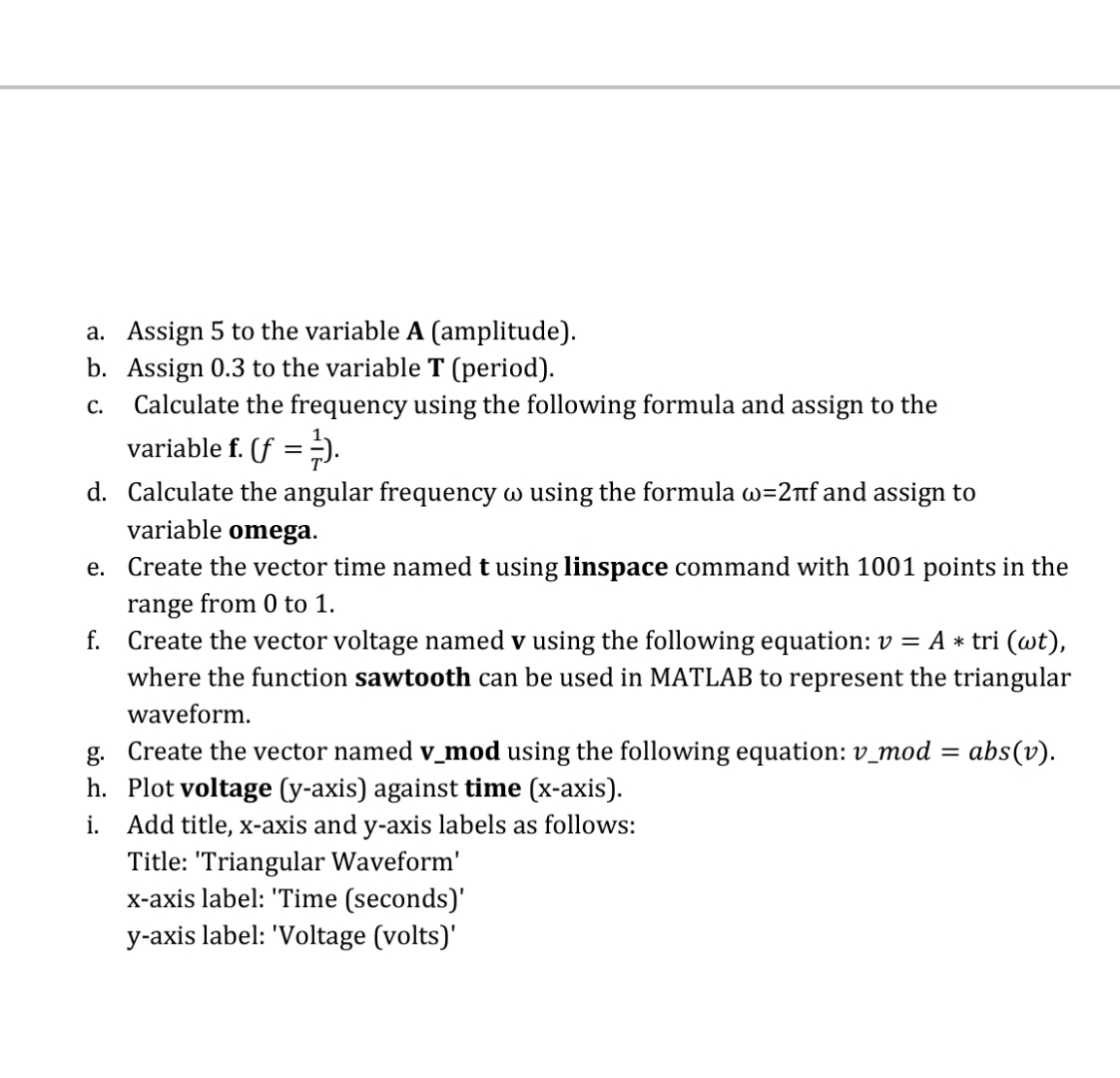

a . Assign 5 to the variable A ( amplitude ) . b . Assign 0 . 3 to the variable T ( period )
a Assign to the variable amplitude
b Assign to the variable period
c Calculate the frequency using the following formula and assign to the variable f
d Calculate the angular frequency using the formula and assign to variable omega.
e Create the vector time named using linspace command with points in the range from to
f Create the vector voltage named using the following equation: where the function sawtooth can be used in MATLAB to represent the triangular waveform.
g Create the vector named vmod using the following equation: mod
h Plot voltage yaxis against time axis
i Add title, axis and axis labels as follows:
Title: 'Triangular Waveform'
xaxis label: 'Time seconds
yaxis label: 'Voltage volts
