( a ) Convert the following continuous transfer function G ( s ) = 4 ( 2 s + 1 ) ( 3 s +

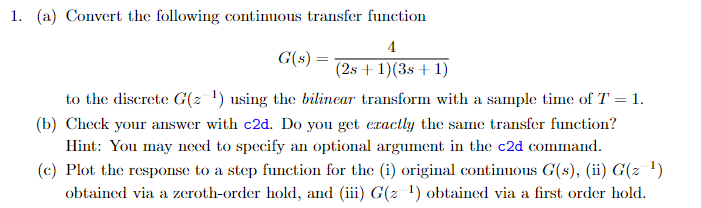

(a) Convert the following continuous transfer function
G(s)=4(2s+1)(3s+1)
to the discrete G(z-1) using the bilinear transform with a sample time of T=1.
(b) Check your answer with c2d. Do you get exactly the same transfer function?
Hint: You may need to specify an optional argument in the c2d command.
(c) Plot the response to a step function for the (i) original continuous G(s),(ii)G(z-1)
obtained via a zeroth-order hold, and (iii)G(z-1) obtained via a first order hold.
