A rectangular loop of wire with sides H = 29 cm and W = 75 cm carries current I2 = 0.204 A. An infinite straight

image text in transcribedimage text in transcribed
image text in transcribedimage text in transcribed

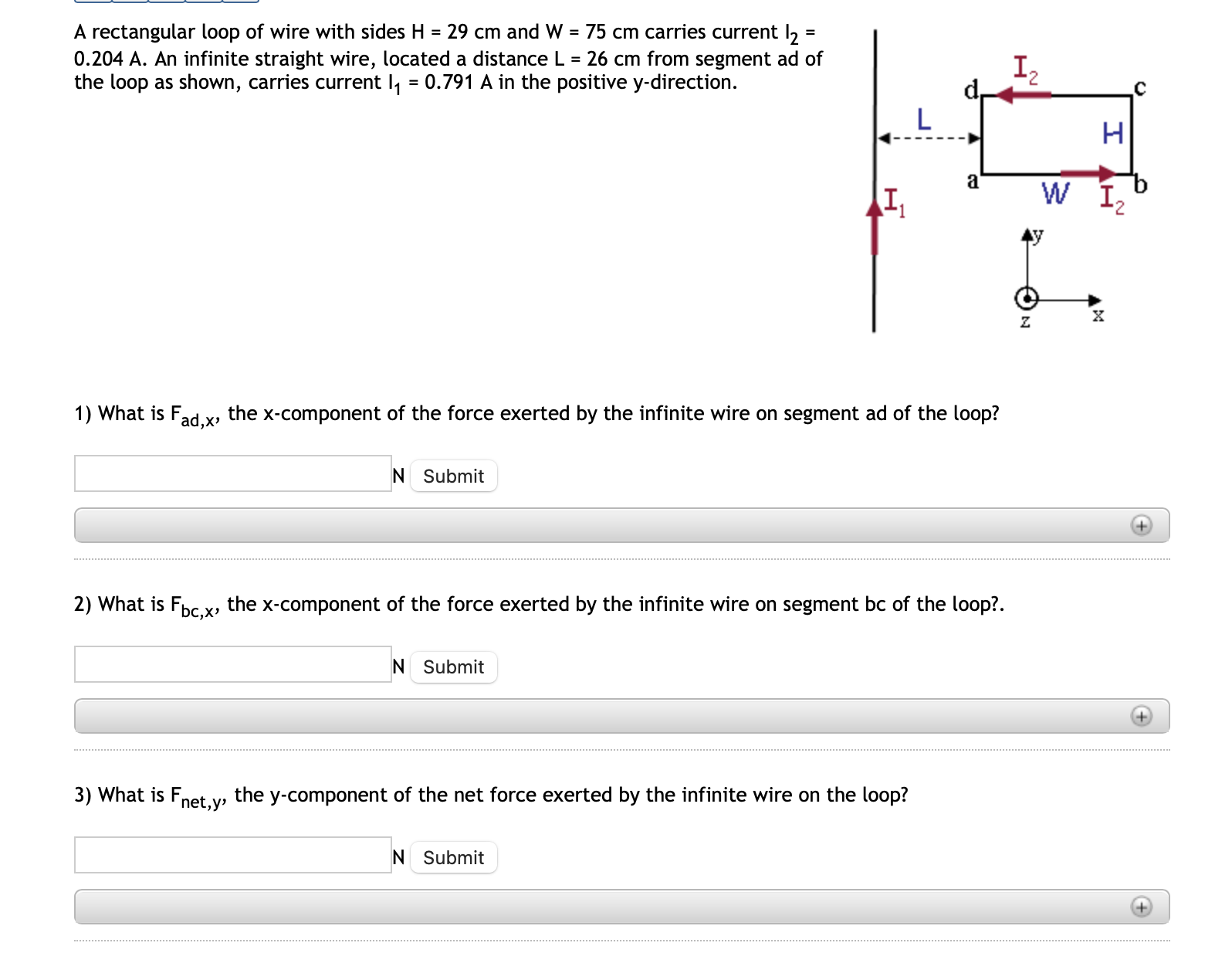

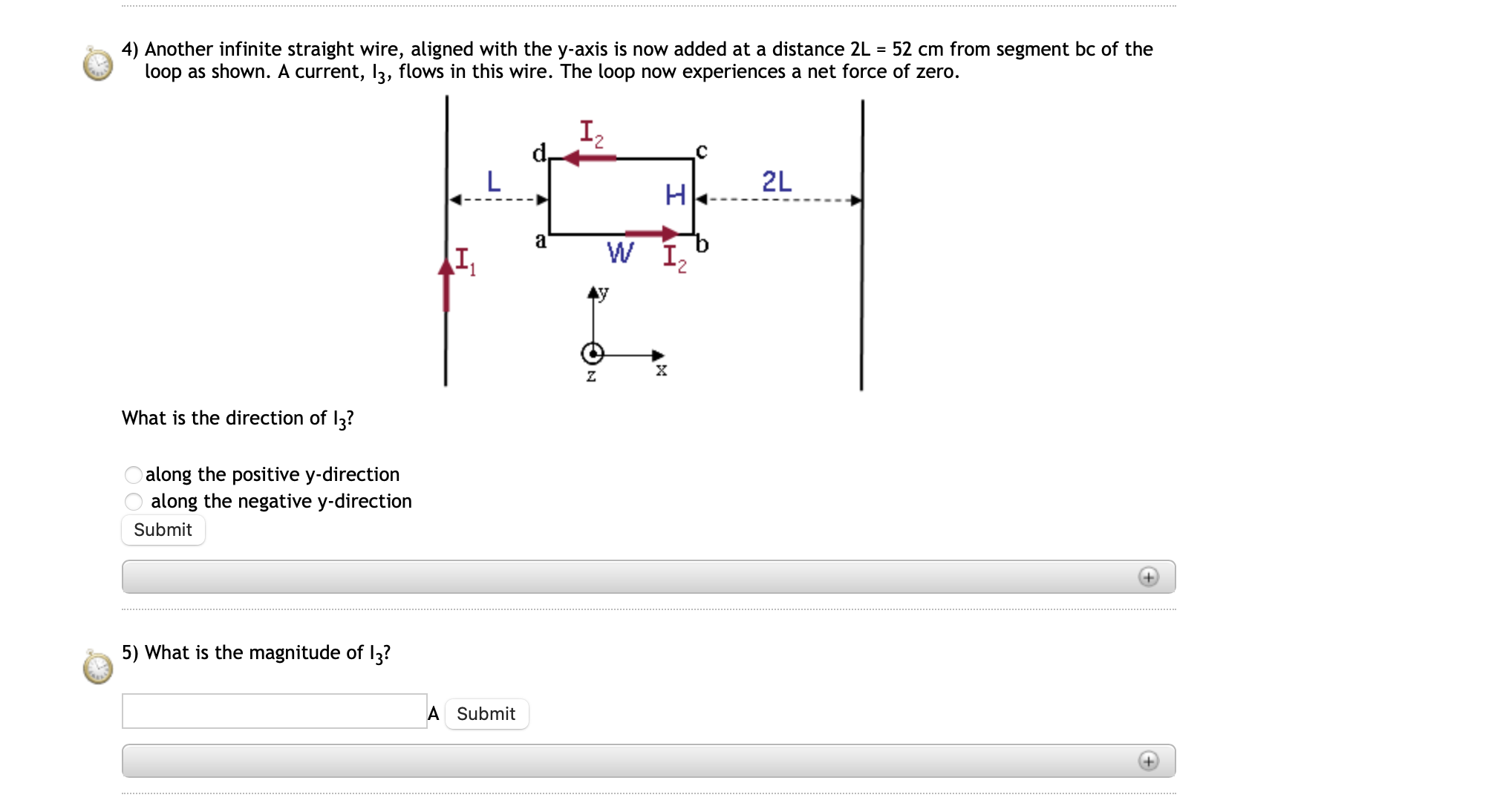

A rectangular loop of wire with sides H = 29 cm and W = 75 cm carries current I2 = 0.204 A. An infinite straight wire, located a distance L = 26 cm from segment ad of I the loop as shown, carries current I1 = 0.791 A in the positive y-direction. 2 1) What is Fad,x: the x-component of the force exerted by the infinite wire on segment ad of the loop? N Submit + 2) What is Fbc,X! the x-component of the force exerted by the infinite wire on segment bc of the loop?. N Submit + 3) What is Fnet,y' the ycomponent of the net force exerted by the infinite wire on the loop? N Submit 4) Another infinite straight wire, aligned with the y-axis is now added at a distance 2L = 52 cm from segment bc of the V loop as shown. A current, I3, flows in this wire. The loop now experiences a net force of zero. What is the direction of I3? along the positive y-direction along the negative y-direction Submit 5) What is the magnitude of I3? K} A Submit
