Activity Components

Understanding the Requirements:

Your activity involves creating a Python program that facilitates a Command Line Interface

Tool for Data Analysis.

The program should guide user with a step$-$by$-$step instruction, from choosing desired

CSV file for loading the data into the program, to preparing the data, analyzing the data

to the final visualization of the processed data.Designing and Implementing the Solution:

Design a modular solution that consists of functions to perform each stage of Data

Analysis. There are four stages of Data Analysis involved in this task:

Load Data;

Clean and prepare data;

Analyze data;

Visualize and present the data.

Each stage of Data Analysis will ask user to interact through Command Line and select in

which way data should be processed.

Implement a main function that presents all four stages to the user in a first place and

then, open initial stage $-$ Load Data. Data should be loaded from the CSV file and print

loaded data.

During 'Load Data' stage, user is asked to provide absolute or relative path to the CSV file.

Program will print all the columns and ask the user to choose which one should be

processed. In case user chooses non$-$numerical column, program reports error and asks

user to choose numerical column again. After user chooses correct column, values of the

column will be saved in the array as a string. Program should provide feedback if data is

loaded correctly. After loading data, program should print the table and shift into Cleaning

and Preparing data stage.

In 'Cleaning and prepare data' stage, program should replace all empty values from

numerical column with the replacement value. Convert numerical values from the string

to numerical type and exchange empty values with user's selection. This stage will offer

user with submenu, to ask if replacement value for empty cells should be:

minimum value in the column

maximum value in the column

average value calculated from all the values in the column.

After completing the second stage, program should take user into the 'Analyze Data'

Stage. For the purpose of this program, analyzing will be considered sorting the data in

ascending or descending order. Use Insertion sort to sort the array. Program will offer

user with two options:

Ascending order

Descending order

Final stage, 'Visualize the data', will print out all of the values in sorted order by printing

the name of the column and one $\text{'}*\text{'}$ character for each $5$ units of the sorted value. Which

means if the value is between $4$ and $0$ it will print one $\text{'}*\text{'}$ character, if value is between

$10$ and $5$ it will print $\text{'}**\text{'},$ if the values is between $11$ and $15,$ it will print $\text{'}***\text{'}$ and it will

follow the pattern until reaching value of $100.$ For the values of $100$ and above program

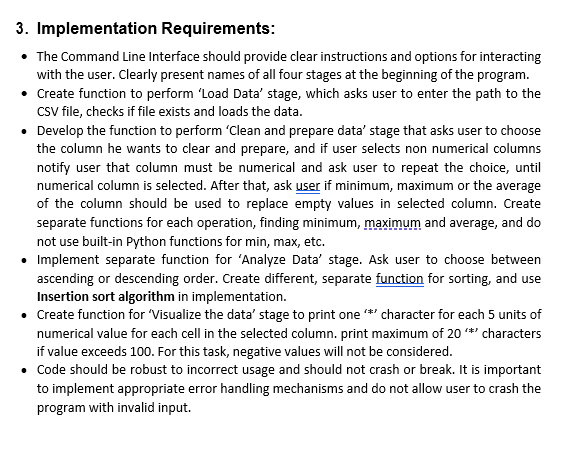

will just print maximum of ${20}^{\text{'}*\text{'}}$ characters.Implementation Requirements:

The Command Line Interface should provide clear instructions and options for interacting

with the user. Clearly present names of all four stages at the beginning of the program.

Create function to perform 'Load Data' stage, which asks user to enter the path to the

CSV file, checks if file exists and loads the data.

Develop the function to perform 'Clean and prepare data' stage that asks user to choose

the column he wants to clear and prepare, and if user selects non numerical columns

notify user that column must be numerical and ask user to repeat the choice, until

numerical column is selected. After that, ask user if minimum, maximum or the average

of the column should be used to replace empty values in selected column. Create

separate functions for each operation, finding minimum, maximum and average, and do

not use built$-$in Python functions for min, max, etc.

Implement separate function for 'Analyze Data' stage. Ask user to choose between

ascending or descending order. Create different, separate function for sorting, and use

Insertion sort algorithm in implementation.

Create function for 'Visualize the data' stage to print one ${?}^{\text{'}**\text{'}}$ character for each $5$ units of

numerical value for each cell in the selected column. print maximum of ${20}^{t*}$ characters

if value exceeds $100.$ For this task, negative values will not be considered.

Code should be robust to incorrect usage and should not crash or break. It is important

to implement appropriate error handling mechanisms and do not allow user to crash the

program with invalid input.
