ALL DONE IN EXCEL SOLVER_ PLS SHOW FORMULAS ILL LIKE (:

You are the analytics coordinator for F.C., the 2020 Independent Presidential candidate. Mr. C wishes to travel from California (approximately at the California end of Route 66 in Santa Monica) to Chicago, Illinois in a fleet of electric cars while campaigning during the election process.

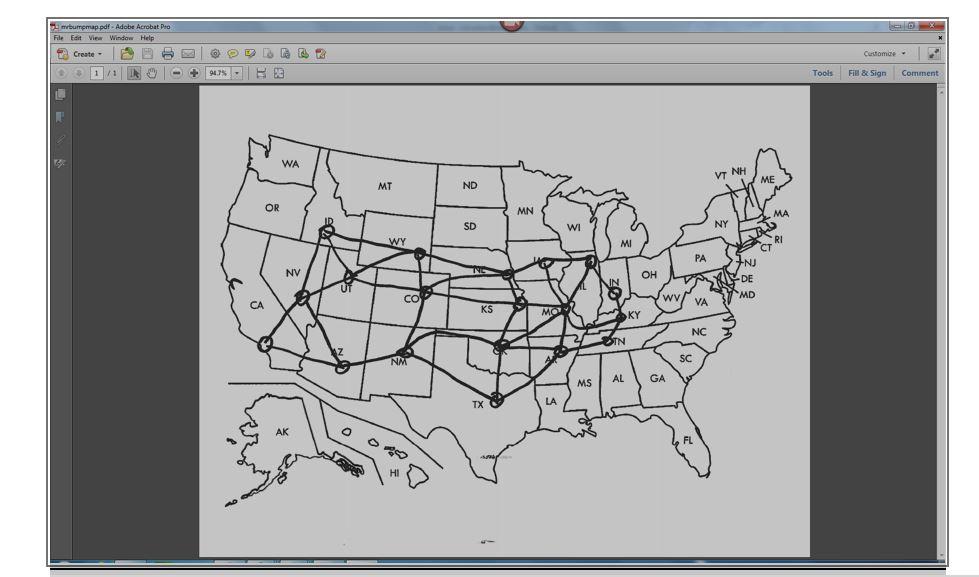

Mr. C doesnt need to exactly follow (in reverse) the old Route 66, and has given you some parameters on possible ways to travel from CA to IL (using two digit state codes). The map showing possible links and nodes in your Road Rally network is provided. There are 19 nodes and 34 (bi-directional) links. Distances are provided (assume distances are the same regardless of the direction a link is traveled).

Mr. C wishes to find the least distance way to go from CA to IL. There are a few additional requirements he wishes you to meet in his planned route.

Each state, other than CA and IL, has an exposure value representing the value accrued to the candidate if he passes through that state. (It is provided to you in a separate table). Your path should visit states such that at least 115 exposure points are obtained.

Additionally, Mr. C wishes to make campaign stops and give speeches at at least 4 different recharging station hubs during the road rally event. There are a total of 8 hubs accessible in the planned area of travel four of them located on links in the road rally network and four of them associated with nodes (states). The planned path should pass through at least 4 of these linksodes.

Determine the optimal path of the road rally. Explain the solution by showing how it meets the exposure and recharging hub requirements as you trace its path across the county.

Comment: Dont double count anything - I would suggest not allowing loops in your path unless you can do so without double counting. Obviously, the optimal route must pass the smell test (i.e. no subtours). And friendly reminder Mr. C can travel in either direction on a link. Data is listed on the back. Map is shown under separate cover.

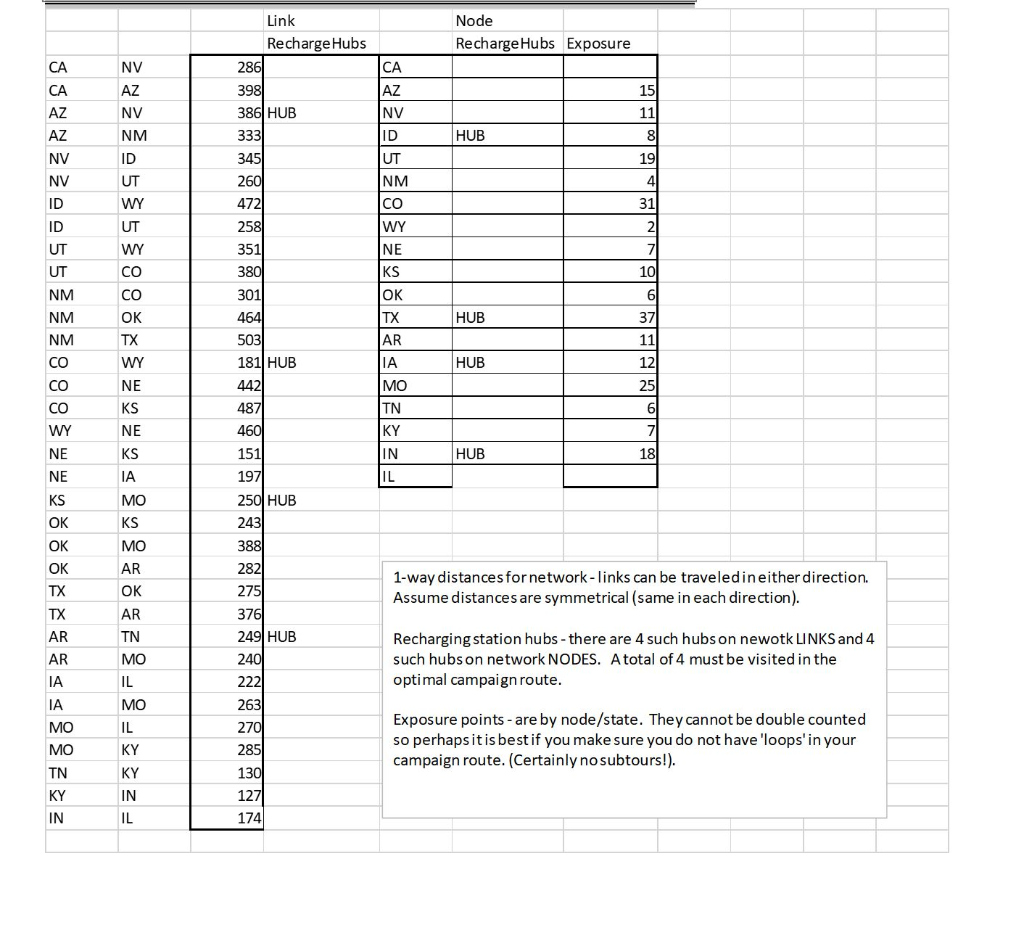

mbumpmap pdf - Adobe Acrobat Pro File Edit View Window Help Create @ DE R Custome Fi & Sign Comment Tools ND V NH the MN X05 WY WA MD K MSAL GA 7 oo S Link Recharge Hubs Node Recharge Hubs Exposure 286 CA NV AZ NV NM HUB SSAN e e 55 398 386 HUB 333 345 260 472 UT NM WOHNHAU EU 258 WY NE 351 380 301 NM NM NM 464 HUB 503 CO HUB WY NE KS NE KS 181 HUB 442 4871 460 KY IN HUB 151 197 MO MO AR 250 HUB 243 388 282 2751 376 249 HUB 240 2221 263 1-way distances for network-links can be traveledineither direction. Assume distances are symmetrical (same in each direction). Recharging station hubs - there are 4 such hubs on newotk LINKS and 4 such hubs on network NODES. A total of 4 must be visited in the optimal campaign route. Exposure points - are by node/state. They cannot be double counted so perhaps it is best if you make sure you do not have 'loops'in your campaign route. (Certainly no subtours!). MO TN KY KY 285 130 127 174 IN IN IL mbumpmap pdf - Adobe Acrobat Pro File Edit View Window Help Create @ DE R Custome Fi & Sign Comment Tools ND V NH the MN X05 WY WA MD K MSAL GA 7 oo S Link Recharge Hubs Node Recharge Hubs Exposure 286 CA NV AZ NV NM HUB SSAN e e 55 398 386 HUB 333 345 260 472 UT NM WOHNHAU EU 258 WY NE 351 380 301 NM NM NM 464 HUB 503 CO HUB WY NE KS NE KS 181 HUB 442 4871 460 KY IN HUB 151 197 MO MO AR 250 HUB 243 388 282 2751 376 249 HUB 240 2221 263 1-way distances for network-links can be traveledineither direction. Assume distances are symmetrical (same in each direction). Recharging station hubs - there are 4 such hubs on newotk LINKS and 4 such hubs on network NODES. A total of 4 must be visited in the optimal campaign route. Exposure points - are by node/state. They cannot be double counted so perhaps it is best if you make sure you do not have 'loops'in your campaign route. (Certainly no subtours!). MO TN KY KY 285 130 127 174 IN IN IL
