AR6) code? /** * Vertex shader program * * @todo [STUDENT] the vertex shader is by-and-large completed for you */ var VSHADER_SOURCE =` attribute vec4

image text in transcribed AR6) code?

/**

* Vertex shader program

*

* @todo [STUDENT] the vertex shader is by-and-large completed for you

*/

var VSHADER_SOURCE =`

attribute vec4 a_Position;

attribute vec4 a_Normal;

uniform mat4 u_ModelViewMatrix; // ModelView matrix

uniform mat4 u_ModelViewProjectionMatrix; // ModelViewProjectionMatrix (= ProjectionMatrix * ModelViewMatrix)

uniform mat4 u_NormalMatrix; // Transformation matrix for normals (maps model to OpenGL Eye coordinates)

varying vec3 v_Normal_ecs; // normal in OpenGL eye coordinates

varying vec3 v_Position_ecs; // position in OpenGL eye coordinates

void main() {

// Calculate vertex in Normalized Device Coordinates

gl_Position = u_ModelViewProjectionMatrix * a_Position;

// Calculate the vertex position in OpenGL Eye (akka 'view') coordinates

v_Position_ecs = vec3(u_ModelViewMatrix * a_Position);

v_Normal_ecs = normalize(vec3(u_NormalMatrix * a_Normal));

}

`;

/**

*

* Fragment shader program

*

* @todo [STUDENT] REQUIRED: additions are required to this shader to calculate specular reflection and material emission

* Note: the reason for passing in the light position in Eye coordinates (and not World coordinates) should become

* clear to you as you implement the specular reflection calculation... It will reduce calculations and also avoids

* having to pass the Eye's world coordinates position to the shader.

*/

var FSHADER_SOURCE =`

#ifdef GL_ES

precision mediump float;

#endif

uniform vec3 u_LightColor; // Light color

uniform vec3 u_LightPosition_ecs; // Position of the light source in OpenGL eye coordinates

uniform vec3 u_AmbientLight; // Ambient light color

uniform vec3 u_DiffuseReflection; // material diffuse reflection

uniform vec3 u_AmbientReflection; // material ambient reflection

uniform vec3 u_SpecularReflection; // material specular reflection

uniform float u_SpecCoef; // material specular reflection coefficient

uniform vec3 u_Emission; // material emission reflection

varying vec3 v_Normal_ecs; // interpolated normal of fragment in OpenGL eye coordinates

varying vec3 v_Position_ecs; // interpolated position of fragment in OpenGL eye coordinates

void main() {

// Normalize the normal because it is interpolated and not 1.0 in length any more

vec3 normal = normalize(v_Normal_ecs);

// Calculate the light direction and make it 1.0 in length

vec3 lightDirection = normalize(u_LightPosition_ecs - v_Position_ecs);

// The dot product of the light direction and the normal

float nDotL = dot(lightDirection, normal);

vec3 diffuse;

if (nDotL > 0.0)

// Calculate the final color from diffuse reflection and ambient reflection

diffuse = u_LightColor * u_DiffuseReflection.rgb * nDotL;

else

diffuse = vec3(0,0,0);

vec3 ambient = u_AmbientLight * u_AmbientReflection.rgb;

gl_FragColor = vec4(diffuse + ambient, 1);

}

`;

function main() {

/**

* Wartell's Boiler plate section for generating Demo and Skeleton App_Title

*/

let skeleton = true;

if (skeleton) {

document.getElementById("App_Title").innerHTML += "-Skeleton " + product_version();

}

/**

* [DEBUGGING] Run some unit tests

*/

/* enable for debugging only */

if (0) {

/* runs some module unit tests and then exit */

Mat3_test();

Mat4_test();

return;

}

/**

* Setup WebGL

*/

// Retrieve element

const canvas = document.getElementById('webgl');

// Get the rendering context for WebGL

const gl = getWebGLContext(canvas);//, true);

if (!gl) {

console.log('Failed to get the rendering context for WebGL');

return;

}

const litShader3D = new LitShader3D(gl, VSHADER_SOURCE, FSHADER_SOURCE, true);

const litBox = new LitBox_Beta(litShader3D);

// Set the clear color and enable the depth test

gl.clearColor(0.0, 0.0, 0.0, 1.0);

gl.enable(gl.DEPTH_TEST);

var

startLightPosition = new Vec4(0, 0, 10, 1),

lightPosition = new Vec4(startLightPosition);

const lightColor = [0.8, 0.8, 0.8]; // Set the light color (white)

const world_to_eye = new Mat4(); // M_eye

var eyeStart = new Vec4(0, 0, 6, 1);

var eye = new Vec4(eyeStart);

var upVectorStart = new Vec4(0, 1, 0, 0);

var upVector = new Vec4(upVectorStart);

/* Note, skeleton code leaves the modelViewMatrix and projection as Identity matrices,

* This creates a projection that is an orthogonal parallel projection and looking down the negative z-axis.

*/

/**

* Create object to make all animated objects and values available to animateFrame

* @type {{angle: number}}

*/

var scene = {

angle : 0,

autoRotate : true

};

// set clear color and depth buffer

gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT);

/**

** Set Event Handlers

**

** Student Note: the WebGL book uses an older syntax. The newer syntax, explicitly calling addEventListener, is preferred.

** See https://developer.mozilla.org/en-US/docs/Web/API/EventTarget/addEventListener

**/

// Register mouse rotation event handle

const currentAngle = [0.0, 0.0]; // Current rotation angle ([x-axis, y-axis] degrees)

mouseRotation_initEventHandlers(canvas, currentAngle);

// register autorotate event handles

document.getElementById("AutoRotate").addEventListener('change',

(event) => { scene.autoRotate = event.target.checked; }

);

/** @todo [STUDENT] setup event listeners for keyboard keys here for rotation the lightPosition */

/**

** Define the draw callback (i.e. animation loop)

**/

repaint = function(timestamp)

{

// draw and animate all objects for this frame

if (lastTimestamp !== null)

{

/*

* update time stamp

*/

let

delta = timestamp-lastTimestamp; // 'delta' = time that has past between this call and previous call to this repaint function

lastTimestamp = timestamp;

/*

* update/animate geometry, positions, colors, etc. of all JS Objects (Renderable sub-classes, etc.)

*/

animateFrame(delta,scene);

/*

* draw everything

*/

// Clear color and depth buffer

gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT);

// set the Projection matrix

let projectionMatrix = new Mat4();

/*

* @todo [STUDENT] after implementing Mat4.js, enable the next line (this is a canonical place to set the projection matrix)

*/

//projectionMatrix.setPerspective(30, canvas.width/canvas.height, 1, 100);

projection3DStack.loadMatrix(projectionMatrix);

// reset the model view matrix

modelView3DStack.loadIdentity();

// rotate the view based on current values of currentAngle[]

// @todo [STUDENT] REQUIRED: add code here to update eye and upVector variables based on angles in global variable currentAngle[]

// compute viewMatrix (i.e. OpenGL world to OpenGL Eye transform)

let viewMatrix = new Mat4();

viewMatrix.setIdentity();

/*

* @todo [STUDENT] after implementing Mat4.js, this is a canonical place to compute the view matrix

* and update the modelView stack; hence, enable next line after completing Mat4.js

*/

// viewMatrix.lookAt(eye.x, eye.y, eye.z, 0, 0, 0, upVector.x, upVector.y, upVector.z);

// put view matrix on modelView stack

modelView3DStack.loadMatrix(viewMatrix);

world_to_eye.set(viewMatrix); // remember world_to_eye transform (it will be needed later for converting light's position to OpenGL Eye space)

// auto rotate view about world y-axis

modelView3DStack.rotateY(scene.angle);

// render all Renderable3D objects and do all WebGL drawing..

/**

* The skeleton code just calls the render method for an example class 'litBox' (see LitBox_Beta and

* associated classes in Renderable3D.js)

*

* @todo [STUDENT] REQUIRED: replace this next line with pile of code that renders the cube of spheres using your implementation

* of class Mat4Stack, it's matrix stack transform functions, and your implementation of class Sphere

*/

litBox.render();

// some debug output

if (debug.showDelta)

console.log("Delta: "+delta);

// some debug output

if (debug.showCurrentAngle)

console.log("CurrentAngle: "+currentAngle[0] + " " + currentAngle[1]);

}

lastTimestamp = timestamp;

// request another call to repaint function to render next frame

requestAnimationFrame(repaint);

};

/**

** Start Animation Loop

**/

requestAnimationFrame(repaint);

}

const ANGLE_STEP = 10.0;

/**

* @description Update all graphical objects for next animation frame

*

* @todo [STUDENT] (as needed) add to this function

*/

function animateFrame(delta,scene)

{

// Update the current rotation angle (adjusted by the elapsed time)

if (scene.autoRotate) {

let angle = scene.angle + (ANGLE_STEP * delta) / 1000.0;

if (angle > 360)

angle = angle % 360;

scene.angle = angle;

}

/**

@todo [STUDENT] (as needed) add code to do other automatic updates to any animated object properties in the scene

*/

}

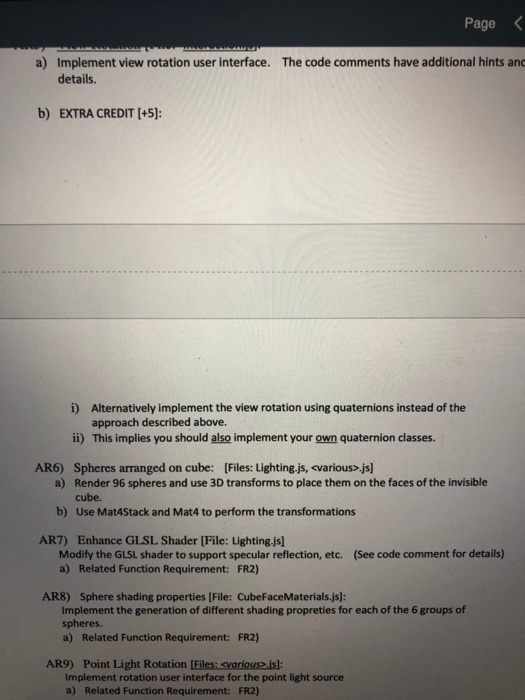

Page a) Implement view rotation user interface. details. The code comments have additional hints and b) EXTRA CREDIT [+5): i) Alternatively implement the view rotation using quaternions instead of the approach described above. i) This implies you should also implement your own quaternion classes. AR6) Spheres arranged on cube: [Files: Lighting.js.
