ASSESSMENT DESCRIPTION: This assignment is group - based. Each group will have 3 - 4 students. You can continue with the same group as for

ASSESSMENT DESCRIPTION:
This assignment is group-based. Each group will have 3-4 students. You can continue with the same
group as for the previous assessment. In this assignment you will be designing and configuring a
network for a university that has a Class B IP address of 172.1.0.0/16. There are two faculties and
each faculty requires two separate subnets: one for staff and another for students. The faculty names
and the number of hosts in each subnet are given below:
Faculty of Arts: 350 students and 160 staff members
Faculty of IT: 700 students and 280 staff members
Part 0
Declare team members contributions in the table below:
Team Member Contribution
(%)
Responsibilities for the Project
Part 1
Divide the allocated address space between department subnets as per requirements. Summarize
the IP subnets and masks in a table like this:
Faculty Network Address Host IP Address Range Subnet Mask
Arts - Students
Arts - Staff
IT Students
IT - Staff
Part 2
Construct the following network topology in GNS3 or Packet Tracer simulator. Ensure that all the
hostnames and network addresses are well labelled.
Fig. 1. Network design
Part 3
Configure the router using the assigned hostnames and IP address.
Part 4
Setup Virtual PC (VPC) in each of the four subnets as shown above. The virtual PCs provide
lightweight PC environment to execute tools such as ping, and trace route. For each faculty create
two VPCs for students and two VPCs for staff. Each VPC should be able to ping the other VPC in the
same subnet.
Part 5
Configure the access control list (ACL) on Router01 such that any traffic from Students subnets are
blocked from entering the staff subnet. Traffic to and from other subnets should pass through. Pinging
staff VPCs (in both faculties) from students VPCs should fail. In other words, student in each faculty
should not be able to ping any staff computer in any faculty. Students can only ping students VPCs in
any faculty. Staff members can ping any VPC (staff and students in any faculty).
Part 6
Configure DHCP services on Router01 such that all VPCs can get IP addresses
dynamically assigned.
Part 7
Use the following checklist to ensure you network is configured correctly.
Test
IT student VPC cannot ping IT staff VPC
IT student VPC cannot ping Arts staff VPC
IT student VPC can ping Arts VPC
Arts student VPC can ping IT student VPC
IT staff VPC can ping Arts staff VPC
Arts staff VPC can ping IT staff VPC
IT staff VPC can ping IT student VPC
IT staff VPC can ping Arts student VPC
Arts staff VPC can ping IT student VPC
Arts staff VPC can ping Arts student VPC
For each of your routers make sure to save your running configuration using the command write mem
For the VPCs use the save filename command to save the configurations to a file.
Finally save the GNS3(or Packet Tracer) project, i.e., the topology together with the startup configs.
Zip the GNS3(or Packet Tracer) project folder and submit it on Moodle with your report. Make sure
your submission is complete and has all the necessary files to run the simulation.
ASSESSMENT SUBMISSION:
The assignment must be submitted online in Moodle. The submission must include a Zip file for the
GNS3(or Packet Tracer) project and an MS Word or PDF file for the report. Only one member of each
team must submit the files.
The name of all team members and their contribution level (percentage) must be shown on the first
page of the report (use the table provided in Part 0).
The report must include annotated screenshots as evidence for completion of each part. You need to
have a separate section for each part and briefly explain what you did for that part, and then insert
screenshots for the steps taken to complete that part. Each screenshot must have a short annotation
(one line or two).
all screenshots, the date and time of the computer must be clearly shown in the
corner (look at the sample below). Make sure the date and time of your computer is
correct.
Note: If you miss either the report or the GNS3(or Packet Tracer) file, you wont receive any mark. In
order to receive a mark for your submission, it is mandatory to present a demo of your
project to your lecturer during week 12. Failure to do so will result in a zero mark for your
submission. The lecturer has the discretion to adjust team contributions based on individual
contributions to the demo. It is important to demonstrate your active participation and
contribution to the project during the demo to ensure fair grading and assessment.

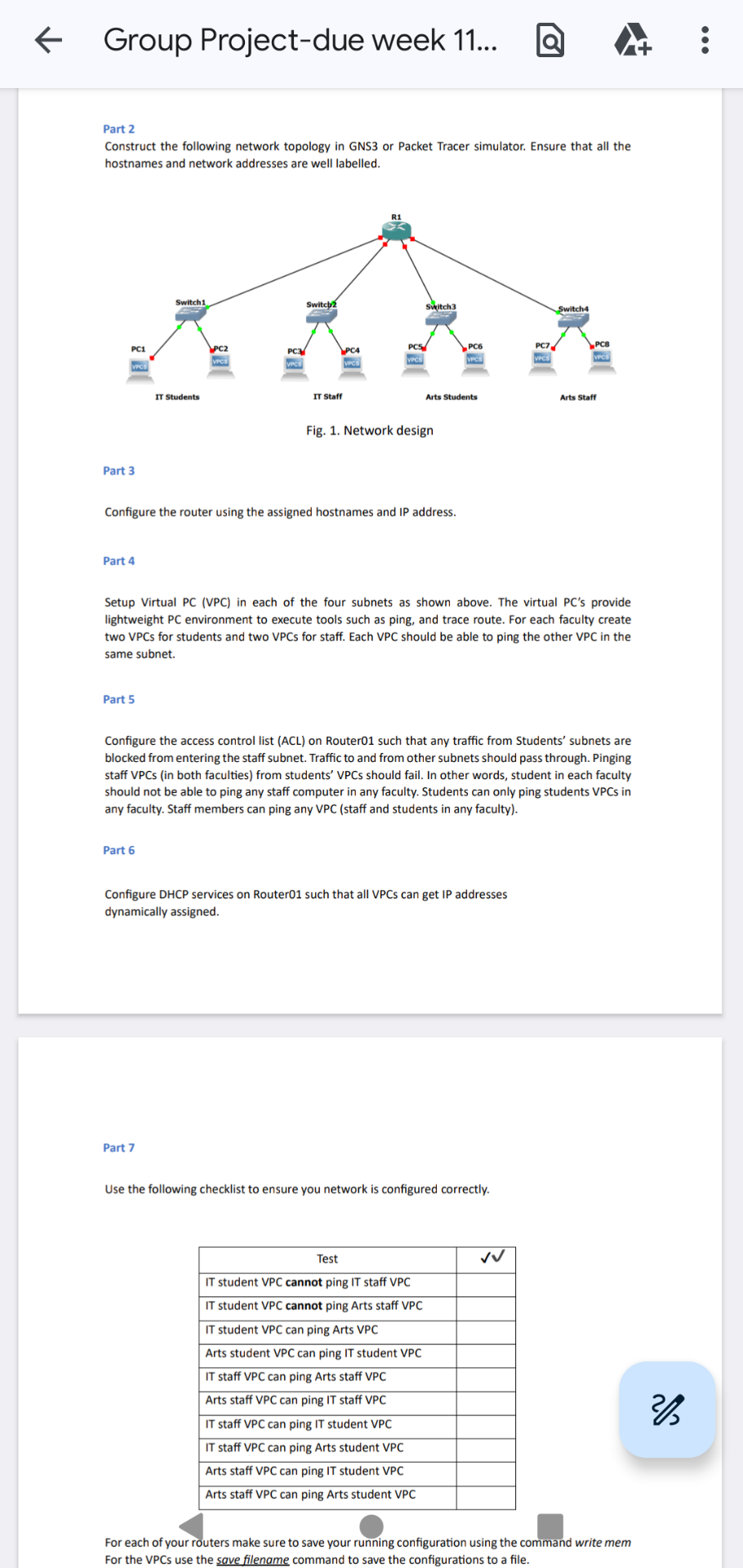

Group Project-due week 11...
Part 2
Construct the following network topology in GNS3 or Packet Tracer simulator. Ensure that all the hostnames and network addresses are well labelled.
Part 3
Configure the router using the assigned hostnames and IP address.
Part 4
Setup Virtual PC (VPC) in each of the four subnets as shown above. The virtual PC's provide lightweight PC environment to execute tools such as ping,
image text in transcribed
