Assignment 1 Construct a truth table for the following Boolean expressions: a . ( A + B ' + C ) ( A ' +

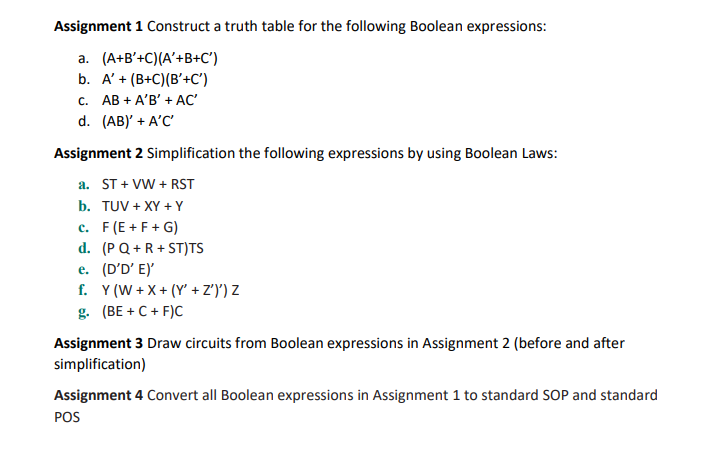

Assignment 1 Construct a truth table for the following Boolean expressions:
a.(A+B'+C)(A'+B'+C')
b.A'+(B+C)(B'+C')
c.AB+A'B'+AC'
d.(AB)'+A'C'
Assignment 2 Simplification the following expressions by using Boolean Laws:
a.ST+VW+RST
b. TUV+xY+Y
c.F(E+F+G)
d.(PQ+R+ST)TS
e.(D'D'E)'
f.Y(W+x+(Y'+Z')')Z
g.(BE+C+F)C
Assignment 3 Draw circuits from Boolean expressions in Assignment 2(before and after
simplification)
Assignment 4 Convert all Boolean expressions in Assignment 1 to standard SOP and standard
POS
