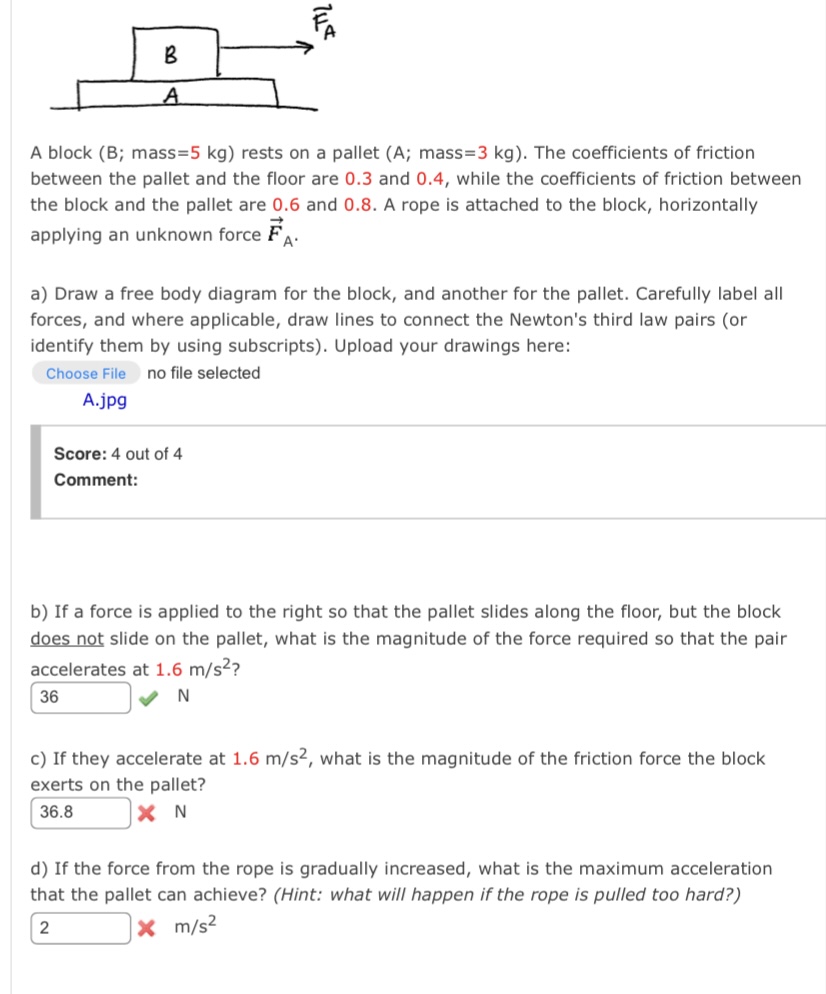

B A A block (B; mass=5 kg) rests on a pallet (A; mass=3 kg). The coefficients of friction between the pallet and the floor are 0.3 and 0.4, while the coefficients of friction between the block and the pallet are 0.6 and 0.8. A rope is attached to the block, horizontally applying an unknown force FA a) Draw a free body diagram for the block, and another for the pallet. Carefully label all forces, and where applicable, draw lines to connect the Newton's third law pairs (or identify them by using subscripts). Upload your drawings here: Choose File no file selected A.jpg Score: 4 out of 4 Comment: b) If a force is applied to the right so that the pallet slides along the floor, but the block does not slide on the pallet, what is the magnitude of the force required so that the pair accelerates at 1.6 m/s2? 36 N c) If they accelerate at 1.6 m/s2, what is the magnitude of the friction force the block exerts on the pallet? 36.8 X N d) If the force from the rope is gradually increased, what is the maximum acceleration that the pallet can achieve? (Hint: what will happen if the rope is pulled too hard?) 2 X m/s2
