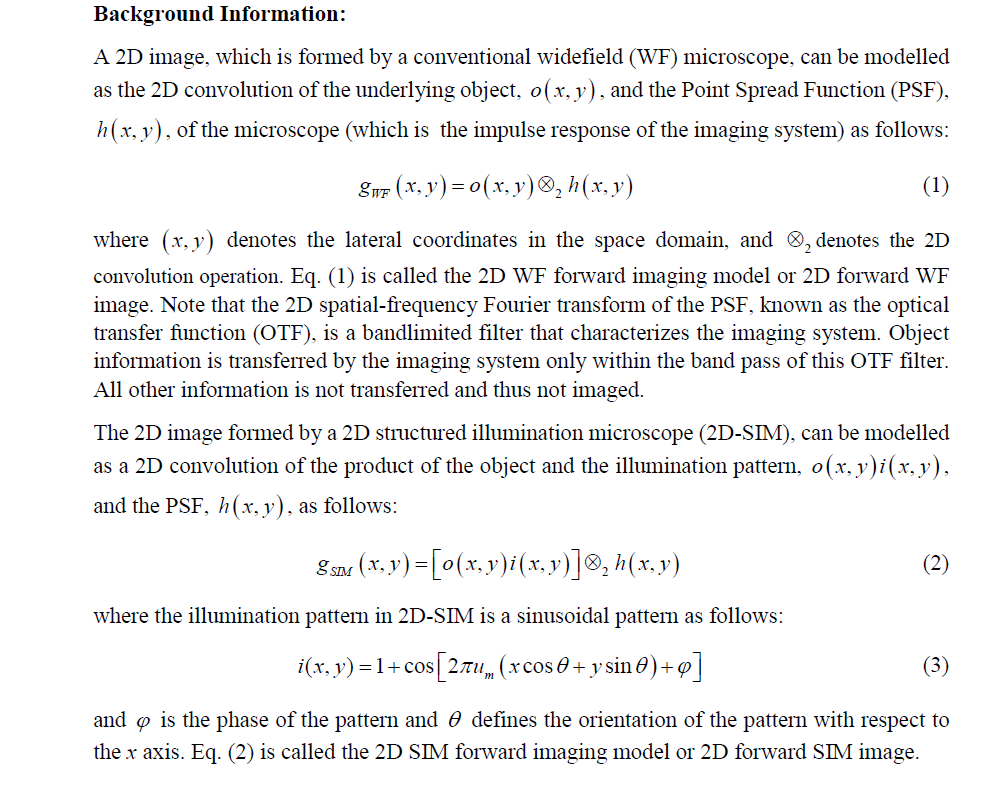

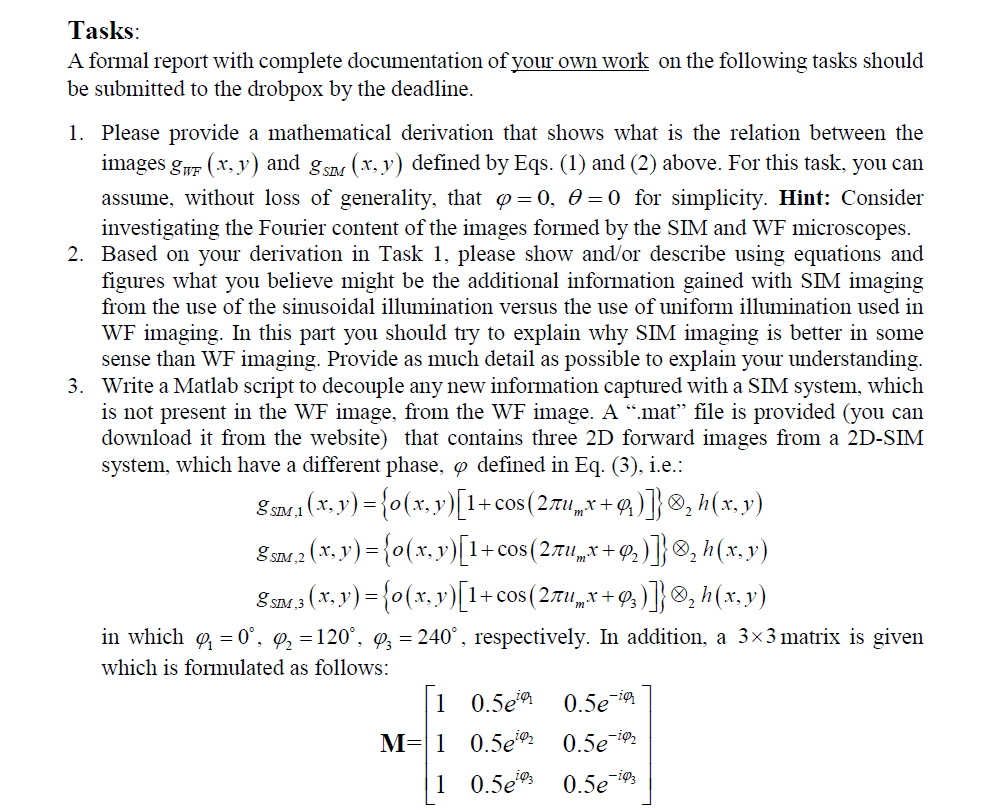

Background Information: A 2D image, which is formed by a conventional widefield (WF) microscope, can be modelled as the 2D convolution of the underlying object, 0(x, y), and the Point Spread Function (PSF), h(x, y), of the microscope (which is the impulse response of the imaging system) as follows: ol SWF(x, y) =0(x, y), h(x, y) (1) where (x, y) denotes the lateral coordinates in the space domain, and , denotes the 2D convolution operation. Eq. (1) is called the 2D WF forward imaging model or 2D forward WF image. Note that the 2D spatial-frequency Fourier transform of the PSF, known as the optical transfer function (OTF), is a bandlimited filter that characterizes the imaging system. Object information is transferred by the imaging system only within the band pass of this OTF filter. All other information is not transferred and thus not imaged. The 2D image formed by a 2D structured illumination microscope (2D-SIM), can be modelled as a 2D convolution of the product of the object and the illumination pattern, o(x, y)i(x, y), and the PSF, h(x, y), as follows: Esiv (x, y) = [o(x, y)i(x, y)], h(x, y) (2) where the illumination pattern in 2D-SIM is a sinusoidal pattern as follows: i(x, y) =1+cos[21u (xcos 0 + y sin 0)+9 ] (3) m and o is the phase of the pattern and a defines the orientation of the pattern with respect to the x axis. Eq. (2) is called the 2D SIM forward imaging model or 2D forward SIM image. Tasks: A formal report with complete documentation of your own work on the following tasks should be submitted to the drobpox by the deadline. 1. Please provide a mathematical derivation that shows what is the relation between the images gwf (x, y) and gs (x, y) defined by Eqs. (1) and (2) above. For this task, you can assume, without loss of generality, that Q=0, 0 =0 for simplicity. Hint: Consider investigating the Fourier content of the images formed by the SIM and WF microscopes. 2. Based on your derivation in Task 1, please show and/or describe using equations and figures what you believe might be the additional information gained with SIM imaging from the use of the sinusoidal illumination versus the use of uniform illumination used in WF imaging. In this part you should try to explain why SIM imaging is better in some sense than WF imaging. Provide as much detail as possible to explain your understanding. 3. Write a Matlab script to decouple any new information captured with a SIM system, which is not present in the WF image, from the WF image. A .mat file is provided (you can download it from the website) that contains three 2D forward images from a 2D-SIM system, which have a different phase, y defined in Eq. (3), i.e.: 1(x, y) = {0(x,y)[1 1+cos(2Au X+9)]}, h(x, y) & sx1,2 (x, y)={0(x, y)[1+cos(27U +22)]}, h(x, y) Esm,3 (x, y)={(x, y)(1+cos(27U X+93)]} , h(x, y) in which Q1 = 0, Q2 = 120, 03 = 240, respectively. In addition, a 3x3 matrix is given which is formulated as follows: i 0.5ei? M=1 0.5e12 1 0.5e 0.5e-19; S SIM,1 = = 1 , = 0.5e-2932 0.5e-12 Your program should take as input the three 2D-SIM images and provide as output the WF image and any other information present in the SIM images. Provide a copy of your Matlab script (by uploading it as a separate document in the dropbox) and figures of the input and output images in both the space and spatial-frequency domains. All figures should appear in your technical report with appropriate figure captions and a discussion explaining them. Be sure to label all figures with appropriate titles and to display scale bars that show the intensity values in images. Your code should be well-commented, ready and easy for me to run so that I can verify that it works. Background Information: A 2D image, which is formed by a conventional widefield (WF) microscope, can be modelled as the 2D convolution of the underlying object, 0(x, y), and the Point Spread Function (PSF), h(x, y), of the microscope (which is the impulse response of the imaging system) as follows: ol SWF(x, y) =0(x, y), h(x, y) (1) where (x, y) denotes the lateral coordinates in the space domain, and , denotes the 2D convolution operation. Eq. (1) is called the 2D WF forward imaging model or 2D forward WF image. Note that the 2D spatial-frequency Fourier transform of the PSF, known as the optical transfer function (OTF), is a bandlimited filter that characterizes the imaging system. Object information is transferred by the imaging system only within the band pass of this OTF filter. All other information is not transferred and thus not imaged. The 2D image formed by a 2D structured illumination microscope (2D-SIM), can be modelled as a 2D convolution of the product of the object and the illumination pattern, o(x, y)i(x, y), and the PSF, h(x, y), as follows: Esiv (x, y) = [o(x, y)i(x, y)], h(x, y) (2) where the illumination pattern in 2D-SIM is a sinusoidal pattern as follows: i(x, y) =1+cos[21u (xcos 0 + y sin 0)+9 ] (3) m and o is the phase of the pattern and a defines the orientation of the pattern with respect to the x axis. Eq. (2) is called the 2D SIM forward imaging model or 2D forward SIM image. Tasks: A formal report with complete documentation of your own work on the following tasks should be submitted to the drobpox by the deadline. 1. Please provide a mathematical derivation that shows what is the relation between the images gwf (x, y) and gs (x, y) defined by Eqs. (1) and (2) above. For this task, you can assume, without loss of generality, that Q=0, 0 =0 for simplicity. Hint: Consider investigating the Fourier content of the images formed by the SIM and WF microscopes. 2. Based on your derivation in Task 1, please show and/or describe using equations and figures what you believe might be the additional information gained with SIM imaging from the use of the sinusoidal illumination versus the use of uniform illumination used in WF imaging. In this part you should try to explain why SIM imaging is better in some sense than WF imaging. Provide as much detail as possible to explain your understanding. 3. Write a Matlab script to decouple any new information captured with a SIM system, which is not present in the WF image, from the WF image. A .mat file is provided (you can download it from the website) that contains three 2D forward images from a 2D-SIM system, which have a different phase, y defined in Eq. (3), i.e.: 1(x, y) = {0(x,y)[1 1+cos(2Au X+9)]}, h(x, y) & sx1,2 (x, y)={0(x, y)[1+cos(27U +22)]}, h(x, y) Esm,3 (x, y)={(x, y)(1+cos(27U X+93)]} , h(x, y) in which Q1 = 0, Q2 = 120, 03 = 240, respectively. In addition, a 3x3 matrix is given which is formulated as follows: i 0.5ei? M=1 0.5e12 1 0.5e 0.5e-19; S SIM,1 = = 1 , = 0.5e-2932 0.5e-12 Your program should take as input the three 2D-SIM images and provide as output the WF image and any other information present in the SIM images. Provide a copy of your Matlab script (by uploading it as a separate document in the dropbox) and figures of the input and output images in both the space and spatial-frequency domains. All figures should appear in your technical report with appropriate figure captions and a discussion explaining them. Be sure to label all figures with appropriate titles and to display scale bars that show the intensity values in images. Your code should be well-commented, ready and easy for me to run so that I can verify that it works
