#### C Programming###

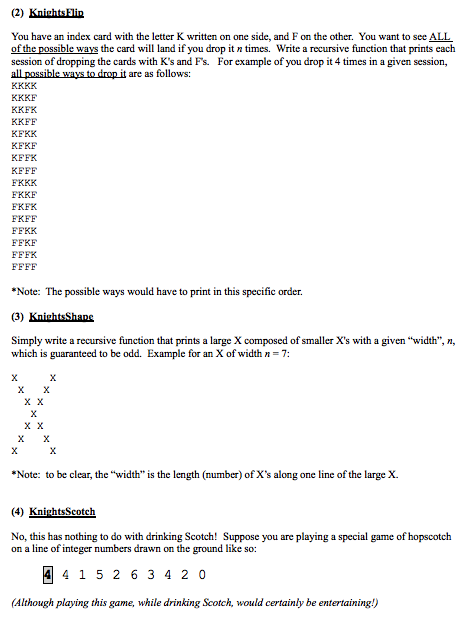

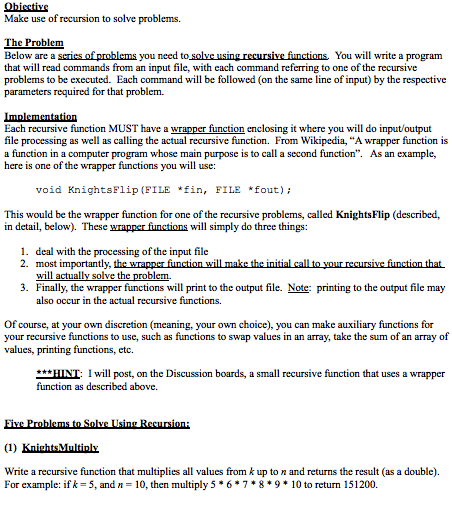

Make use of recursion to solve problems. The Problem Below are a that will read commands from an input file, with each command referring to one of the recursive problems to be executed. Each command will be followed (on the same line of input) by the respective parameters required for that problem. you need to solve using recursive fiunctions You will write a program Each recursive function MUST have a wrapper function enclosing it where you will do input/output file processing as well as calling the actual recursive function. From Wikipedia, "A wrapper function is a function in a computer program whose main purpose is to call a second function". As an example, here is one of the wrapper functions you will use: void KnightsFlip (FILE *fin, FILE *fout); This would be the wrapper function for one of the recursive problems, called KnightsFlip (described, in detail, below). These wrapper functions will simply do three things: 1. deal with the processing of the input file 2. most importantly, 3. Finally, the wrapper functions will print to the output file. Note; printing to the output file may also occur in the actual recursive functions Of course, at your own discretion (meaning, your own choice), you can make auxiliary functions for your recursive functions values, printing functions, etc. to use, such as functions to swap v alues in an array, take the sum of an array o *HINT I will post, on the Discussion boards, a small recursive function that uses a wrapper function as described above. Write a recursive function that multiplies all values from k up to n and returns the result (as a double For example: if k = 5, and n = 10, then multiply 5 * 6 * 7 * 8 * 9 * 10 to return 151200. The number, with a square around it, indicates where you are currently standing. You can move left or right down the line by jumping the number of spaces indicated by the number you are standing on. So if you are standing on a 4, you can jump either left 4 spaces or right 4 spaces. You cannot jump past For example, the first number (4) only allows you to jump right, since there are no numbers to the left that you can jump to. there will be only one zero, which, again, will be at the far right side. Here is how you do that with the above line: Starting 4 1 5 263 4 2 0 position Step 1: 4 415 2 6 3 4 2 0 Jump right Step 2: 4 4 5 26342 0 Jump left Step 3 4 415 2 6 3 4 2 0 Jump right Step 4: 4 4152 63 42 0 Jump right Step 5: 4 4152 6 3 42 0 Jump left Step 6: 4 4152 6342 Jump right Some KnightsScotch lines have multiple paths to 0 from the given starting point. Other lines have no paths to 0, such as the following: 3 1 2 3 0 In this line, you can jump between the 3's, but not anywhere else. You are to write a recursive function that returns an integer 1 (for solvable) or 0 (for not solvable), indicating if you are able to get to the rightmost 0 or not. (5) KnightsDcpot You are working on an engineering project with other students and are in need of 2x4s 2 by 4%) of various lengths. to drive far. Unfortunately, KnightsDepot only carries 2x4s in fixed lengths. So your team will have to purchase the 2x4s and then cut them as needed. Because of your tight college student budget, you want to buy the least number of 2x4s in order to cover the lengths requested by your team. Thankfully, UCF has its very own "Depot" store: KnightsDepot...so you don't have The recursive function you are designing will return the minimum number of 2x4s you need to purchase, in order to cover the lengths requested by your team. Example: Array of 2x4 lengths requested by your team: 6,4, 3, 4, 1, 3 Fixed length of 2x4s at KnightsDepot: 6 (so each purchased 2x4 has a length of 6) A possible arrangement of of 2x4s: 63, 31 {4,14 Minimum number of 2x4s needed to purchase: 4 Wrapper Functions As mentioned, you MUST use the following five wrapper functions EXACTLY as shown: void KnightsMultiply (FILE *fin, FILE fout); void KnightsFlip (FILE *fin, FILE *fout); void KnightsShape (FILE *fin, FILE fout); void KnightsScotch (FILE fin, FILE fout); void KnightsDepot (FILE *fin, FILE fout); You will read in input from a file, "KnightsRecurse.in". Have this AUTOMATED. Do not ask the user to enter "KnightsRecurse.in". You should read in this automatically (this will expedite the grading process). The command. Each command will be followed by relevant data as described below (and this relevant data will be on the same line as the command). and on each line there will be a We will not tell you the number of commands in the file. So how do you know when you've read all the commands in the input file? You can use the

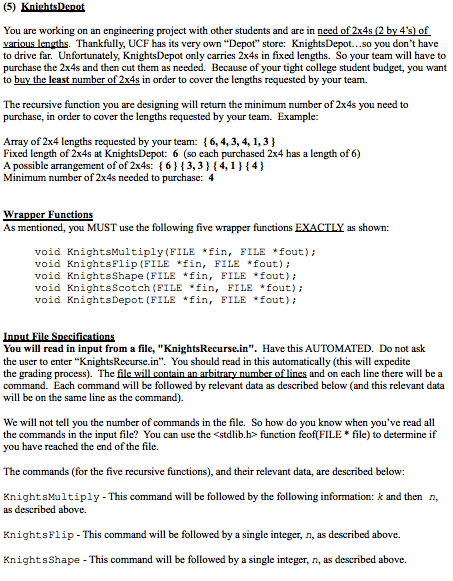

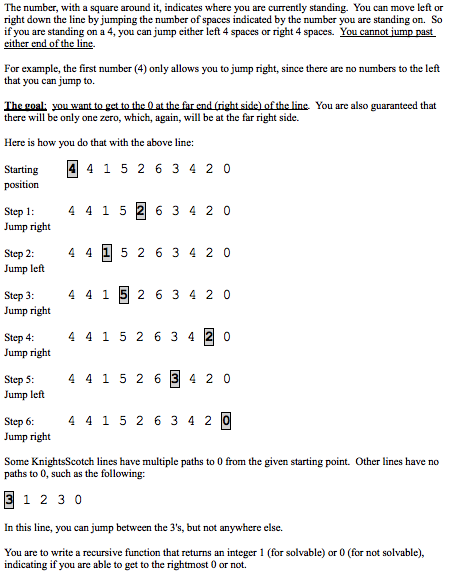

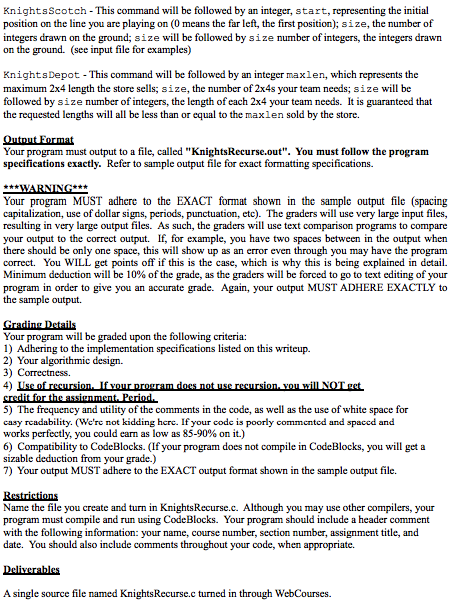

function feof(FILE*file) to determine if you have reached the end of the file. The commands (for the five recursive functions), and their relevant data, are described below: KnightsMultiply This command will be followed by the following information: k and then n, as described above. KnightsFlip - This command will be followed by a single integer, n, as described above. KnightsShape This command will be followed by a single integer, n, as described above. KnightsScotch-This command will be followed by an integer, start, representing the initial position on the line you are playing on (0 means the far left, the first position); size, the number of integers drawn on the ground; size will be followed by size number of integers, the integers drawn on the ground. (see input file for examples) KnightsDepot- This command will be followed by an integer maxlen, which represents the maximum 2x4 length the store sells; size, the number of 2x4s your team needs; size will be followed by size number of integers, the length of each 2x4 your team needs. It is guaranteed that the requested lengths will all be less than or equal to the maxlen sold by the store. Your program must output to a file, called "KnightsRecurse.out". You must follow the program specifications exactly. Refer to sample output file for exact Your program MUST adhere to the EXACT format shown in the sample output file (spacing capitalization, use of dollar signs, periods, punctuation, etc). The graders will use very large input files, resulting in very large output files. As such, the graders will use text comparison programs to compare your output to the correct output. If, for example, you have two spaces between in the output when there should be only one space, this will show up as an error even through you may have the program correct. You WILL get points off if this is the case, which is why this is being explained in detail. Minimum deduction will be 10% of the grade, as the graders will be forced to go to text editing of your program in order to give you an accurate grade. Again, your output MUST ADHERE EXACTLY to the sample output. Your program will be graded upon the following criteria: 1) Adhering to the implementation specifications listed on this writeup. 2) Your algorithmic design. 3) Correctness. 4) 5) The frequency and utility of the comments in the code, as well as the use of white space for casy rcadability. (We're not kidding here. If your code is poorly commented and spaccd and works perfectly, you could earn as low as 85-90% on it.) 6) Compatibility to CodeBlocks. (If your program does not compile in CodeBlocks, you will get a sizable deduction from your grade.) 7) Your output MUST adhere to the EXACoutput format shown in the sample output file. Name the file you create and turn in KnightsRecurse.c. Although you may use other compilers, your program must compile and run with the following information: your name, course number, section number, assignment title, and date. You should also include comments throughout your code, when appropriate. using CodeBlocks. Your program should include a header comment A single source file named KnightsRecurse.c turned in through WebCourses. Make use of recursion to solve problems. The Problem Below are a that will read commands from an input file, with each command referring to one of the recursive problems to be executed. Each command will be followed (on the same line of input) by the respective parameters required for that problem. you need to solve using recursive fiunctions You will write a program Each recursive function MUST have a wrapper function enclosing it where you will do input/output file processing as well as calling the actual recursive function. From Wikipedia, "A wrapper function is a function in a computer program whose main purpose is to call a second function". As an example, here is one of the wrapper functions you will use: void KnightsFlip (FILE *fin, FILE *fout); This would be the wrapper function for one of the recursive problems, called KnightsFlip (described, in detail, below). These wrapper functions will simply do three things: 1. deal with the processing of the input file 2. most importantly, 3. Finally, the wrapper functions will print to the output file. Note; printing to the output file may also occur in the actual recursive functions Of course, at your own discretion (meaning, your own choice), you can make auxiliary functions for your recursive functions values, printing functions, etc. to use, such as functions to swap v alues in an array, take the sum of an array o *HINT I will post, on the Discussion boards, a small recursive function that uses a wrapper function as described above. Write a recursive function that multiplies all values from k up to n and returns the result (as a double For example: if k = 5, and n = 10, then multiply 5 * 6 * 7 * 8 * 9 * 10 to return 151200. The number, with a square around it, indicates where you are currently standing. You can move left or right down the line by jumping the number of spaces indicated by the number you are standing on. So if you are standing on a 4, you can jump either left 4 spaces or right 4 spaces. You cannot jump past For example, the first number (4) only allows you to jump right, since there are no numbers to the left that you can jump to. there will be only one zero, which, again, will be at the far right side. Here is how you do that with the above line: Starting 4 1 5 263 4 2 0 position Step 1: 4 415 2 6 3 4 2 0 Jump right Step 2: 4 4 5 26342 0 Jump left Step 3 4 415 2 6 3 4 2 0 Jump right Step 4: 4 4152 63 42 0 Jump right Step 5: 4 4152 6 3 42 0 Jump left Step 6: 4 4152 6342 Jump right Some KnightsScotch lines have multiple paths to 0 from the given starting point. Other lines have no paths to 0, such as the following: 3 1 2 3 0 In this line, you can jump between the 3's, but not anywhere else. You are to write a recursive function that returns an integer 1 (for solvable) or 0 (for not solvable), indicating if you are able to get to the rightmost 0 or not. (5) KnightsDcpot You are working on an engineering project with other students and are in need of 2x4s 2 by 4%) of various lengths. to drive far. Unfortunately, KnightsDepot only carries 2x4s in fixed lengths. So your team will have to purchase the 2x4s and then cut them as needed. Because of your tight college student budget, you want to buy the least number of 2x4s in order to cover the lengths requested by your team. Thankfully, UCF has its very own "Depot" store: KnightsDepot...so you don't have The recursive function you are designing will return the minimum number of 2x4s you need to purchase, in order to cover the lengths requested by your team. Example: Array of 2x4 lengths requested by your team: 6,4, 3, 4, 1, 3 Fixed length of 2x4s at KnightsDepot: 6 (so each purchased 2x4 has a length of 6) A possible arrangement of of 2x4s: 63, 31 {4,14 Minimum number of 2x4s needed to purchase: 4 Wrapper Functions As mentioned, you MUST use the following five wrapper functions EXACTLY as shown: void KnightsMultiply (FILE *fin, FILE fout); void KnightsFlip (FILE *fin, FILE *fout); void KnightsShape (FILE *fin, FILE fout); void KnightsScotch (FILE fin, FILE fout); void KnightsDepot (FILE *fin, FILE fout); You will read in input from a file, "KnightsRecurse.in". Have this AUTOMATED. Do not ask the user to enter "KnightsRecurse.in". You should read in this automatically (this will expedite the grading process). The command. Each command will be followed by relevant data as described below (and this relevant data will be on the same line as the command). and on each line there will be a We will not tell you the number of commands in the file. So how do you know when you've read all the commands in the input file? You can use the function feof(FILE*file) to determine if you have reached the end of the file. The commands (for the five recursive functions), and their relevant data, are described below: KnightsMultiply This command will be followed by the following information: k and then n, as described above. KnightsFlip - This command will be followed by a single integer, n, as described above. KnightsShape This command will be followed by a single integer, n, as described above. KnightsScotch-This command will be followed by an integer, start, representing the initial position on the line you are playing on (0 means the far left, the first position); size, the number of integers drawn on the ground; size will be followed by size number of integers, the integers drawn on the ground. (see input file for examples) KnightsDepot- This command will be followed by an integer maxlen, which represents the maximum 2x4 length the store sells; size, the number of 2x4s your team needs; size will be followed by size number of integers, the length of each 2x4 your team needs. It is guaranteed that the requested lengths will all be less than or equal to the maxlen sold by the store. Your program must output to a file, called "KnightsRecurse.out". You must follow the program specifications exactly. Refer to sample output file for exact Your program MUST adhere to the EXACT format shown in the sample output file (spacing capitalization, use of dollar signs, periods, punctuation, etc). The graders will use very large input files, resulting in very large output files. As such, the graders will use text comparison programs to compare your output to the correct output. If, for example, you have two spaces between in the output when there should be only one space, this will show up as an error even through you may have the program correct. You WILL get points off if this is the case, which is why this is being explained in detail. Minimum deduction will be 10% of the grade, as the graders will be forced to go to text editing of your program in order to give you an accurate grade. Again, your output MUST ADHERE EXACTLY to the sample output. Your program will be graded upon the following criteria: 1) Adhering to the implementation specifications listed on this writeup. 2) Your algorithmic design. 3) Correctness. 4) 5) The frequency and utility of the comments in the code, as well as the use of white space for casy rcadability. (We're not kidding here. If your code is poorly commented and spaccd and works perfectly, you could earn as low as 85-90% on it.) 6) Compatibility to CodeBlocks. (If your program does not compile in CodeBlocks, you will get a sizable deduction from your grade.) 7) Your output MUST adhere to the EXACoutput format shown in the sample output file. Name the file you create and turn in KnightsRecurse.c. Although you may use other compilers, your program must compile and run with the following information: your name, course number, section number, assignment title, and date. You should also include comments throughout your code, when appropriate. using CodeBlocks. Your program should include a header comment A single source file named KnightsRecurse.c turned in through WebCourses
