Can anyone write the code below by using PIC18F45K80 please This is the code using pic16F877A: // LCD module connections sbit LCD_RS at RD0_bit; sbit

Can anyone write the code below by using PIC18F45K80 please

This is the code using pic16F877A:

// LCD module connections

sbit LCD_RS at RD0_bit;

sbit LCD_EN at RD1_bit;

sbit LCD_D4 at RD2_bit;

sbit LCD_D5 at RD3_bit;

sbit LCD_D6 at RD4_bit;

sbit LCD_D7 at RD5_bit;

sbit LCD_RS_Direction at TRISD0_bit;

sbit LCD_EN_Direction at TRISD1_bit;

sbit LCD_D4_Direction at TRISD2_bit;

sbit LCD_D5_Direction at TRISD3_bit;

sbit LCD_D6_Direction at TRISD4_bit;

sbit LCD_D7_Direction at TRISD5_bit;

unsigned int analog_in;

float light;

char text[ ] = "00.00";

unsigned char duty;

void main() {

int temp=0;

ADC_Init();

LCD_Init();

Lcd_Cmd(_LCD_CLEAR);

Lcd_Cmd(_LCD_CURSOR_OFF);

TRISA = 0x04;

TRISC = 0;

PORTC=0;

TRISB= 0;

TRISD=0;

PORTB=0;

while(1){

Lcd_Cmd(_LCD_CLEAR);

analog_in = ADC_Read(2);

light = (float)analog_in* 500.0 / 1023.0;

FloatToStr_FixLen(light,text,5);

Lcd_Out (1,1,"light");

Lcd_Out_Cp(text);

if (light>400 && temp==0) {

PORTB.B0=1;

PORTB.B1=0;

PORTB.B4=1;

PORTB.B5=0;

Lcd_out(2,1,"w. Open");

delay_ms(1000);

PORTB=0;

temp=1;

}

if(light

PORTB.B0=0;

PORTB.B1=1;

PORTB.B4=0;

PORTB.B5=1;

Lcd_Out(2,1,"w closed");

delay_ms(5000);

PORTB=0;

temp=0;

}

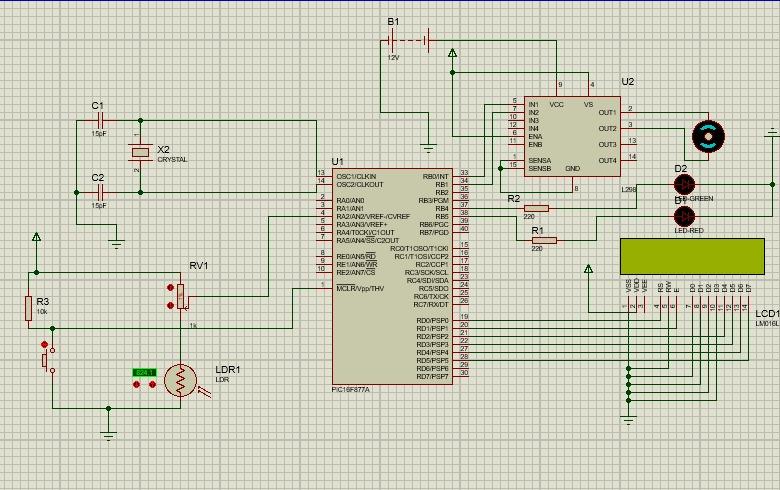

this is circuit simulation: image text in transcribed

Can anyone write the code using PIC18F45K80 please

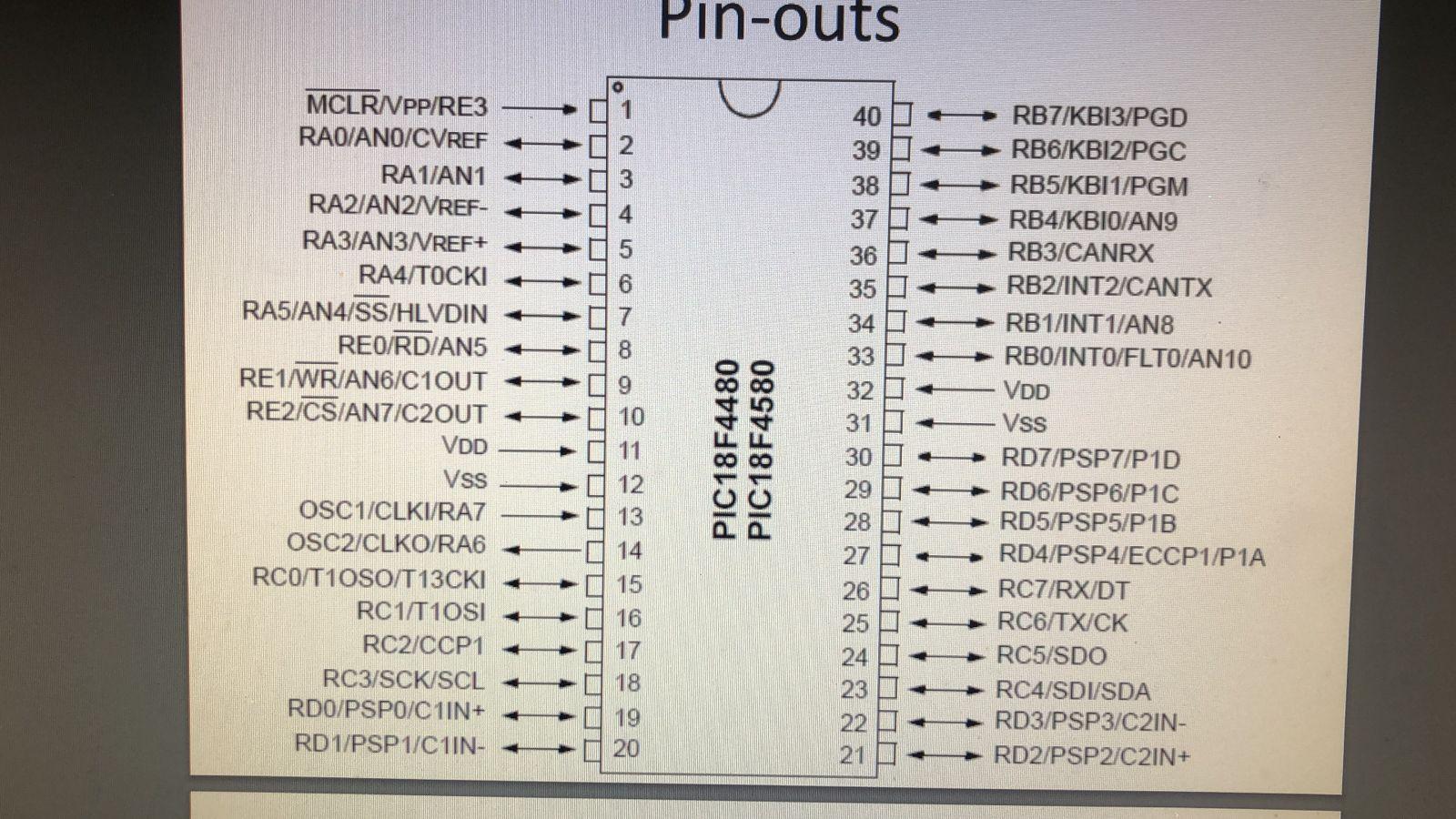

PIC18F45K80 SHOWN BELOW:

image text in transcribed
