Can someone help fix my code? I pasted all my orignal code along with the main objective. It's VHDL code I need this to be

Can someone help fix my code? I pasted all my orignal code along with the main objective. It's VHDL code I need this to be able to compile and simulate ModelSim. Thank you!
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
--Define the data type for a 6-bit word
architecture of word_type is logic(5 down o 0);
--Entity declaration for the memory module
entity memory is
port(
clock:in std_logic;
Ld :in std_logic;
Memin:in word_type;
writeAddr:in std_logic_vector(1 down to 0);
readAddr:in std_logic_vector(1 down to 0);
Memout:out word_type;
);
end entity memory;
--Architecture definition for the memory module
architecture Behavioral of memory is
--Internal signal declaration
signal register:word_type_array(0 to 3):=("000000","000000","000000","000000");
begin
--Process for loading data based on Ld signal
process(clock)
begin
if rising_edge(clock) then
if Ld='1' then
register(to_integer(writeAddr))=Memin;
end if;
end if;
end process;
--Process for selecting output based on readAddr
process(clock)
if rising_edge(clock) then
case readAddr is
when "00"=>Memout=register(0);
when "01"=>Memout=register(1);
when "10"=>Memout=register(2);
when "11"=>Memout=register(3);
when others=>Memout="XXXXXX";--Handle invalid addresses
end case;
end if;
end process;
--Tri-state buffer for output selection
with tri_state_select is signal (2 down to 0) is generate
for i in 0 to 3 loop
Memout(i)=register(i) when tri_state_select(i)='1' else 'Z';
end loop;
end generate;
--Connect tri-state buffers based on readAddr
tri_state_select=("000" when readAddr="00",
"001" when readAddr="01",
"010" when readAddr="10",
"100" when readAddr="11",
othefs=>"000");
end architecture Behavioral;

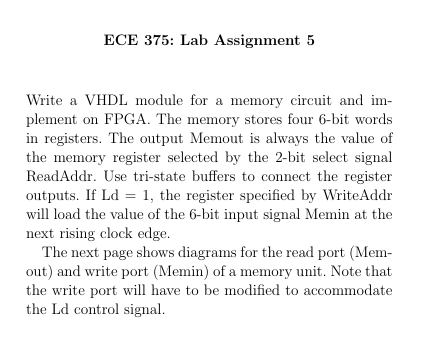

image text in transcribed
