Can you post a link dwg format after doing this?

you can upload to google drive/onedrive

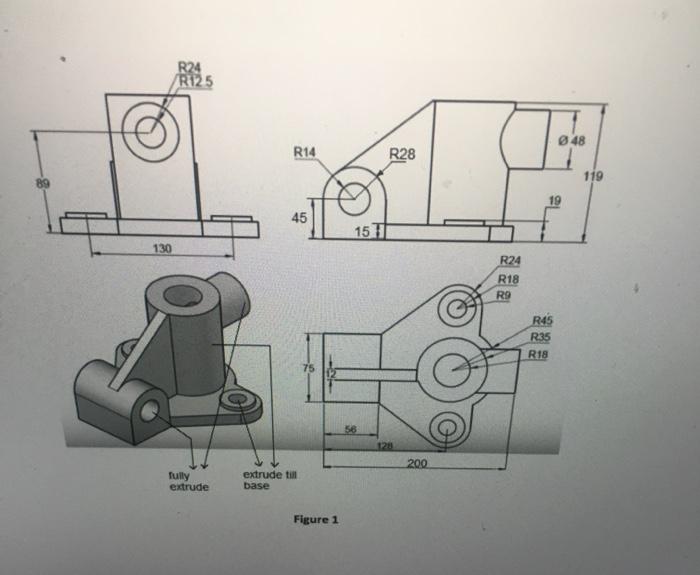

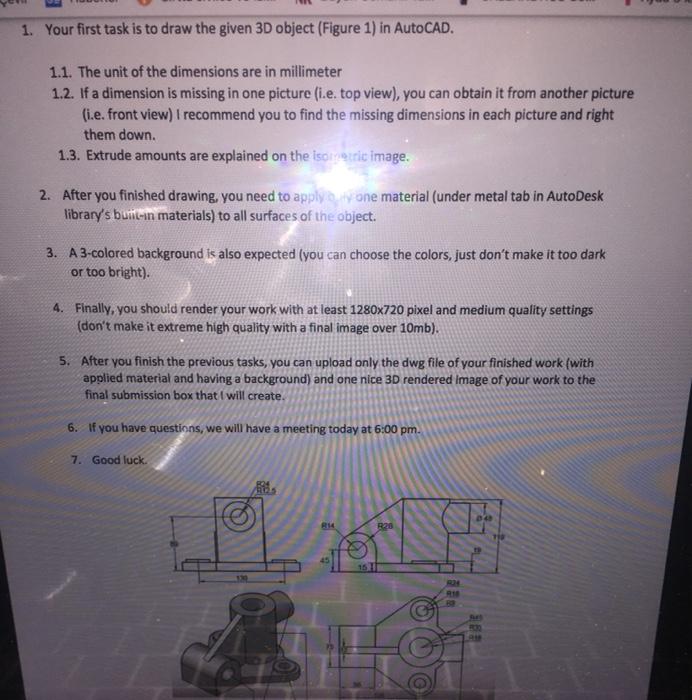

1. Your first task is to draw the given 3D object (Figure 1) in AutoCAD. 1.1. The unit of the dimensions are in millimeter 1.2. If a dimension is missing in one picture (i.e. top view), you can obtain it from another picture (i.e. front view) I recommend you to find the missing dimensions in each picture and right them down. 1.3. Extrude amounts are explained on the isometric image. 2. After you finished drawing, you need to apply one material (under metal tab in AutoDesk library's butiin materials) to all surfaces of the object. 3. A 3-colored background is also expected (you can choose the colors, just don't make it too dark or too bright). 4. Finally, you should render your work with at least 1280x720 pixel and medium quality settings (don't make it extreme high quality with a final image over 10mb). 5. After you finish the previous tasks, you can upload only the dwg file of your finished work (with applied material and having a background) and one nice 3D rendered image of your work to the final submission box that I will create. 6. If you have questions, we will have a meeting today at 6:00 pm. 7. Good luck R14 R24 R125 48 R14 R28 119 19 45 157 130 R24 R18 R9 R45 R35 R18 56 200 fully extrude extrude til base Figure 1
