Can you write out the solution explanation for each box, and answer the questions? 2. Are you ready for the next challenge? Get your right

Can you write out the solution explanation for each box, and answer the questions?

image text in transcribed

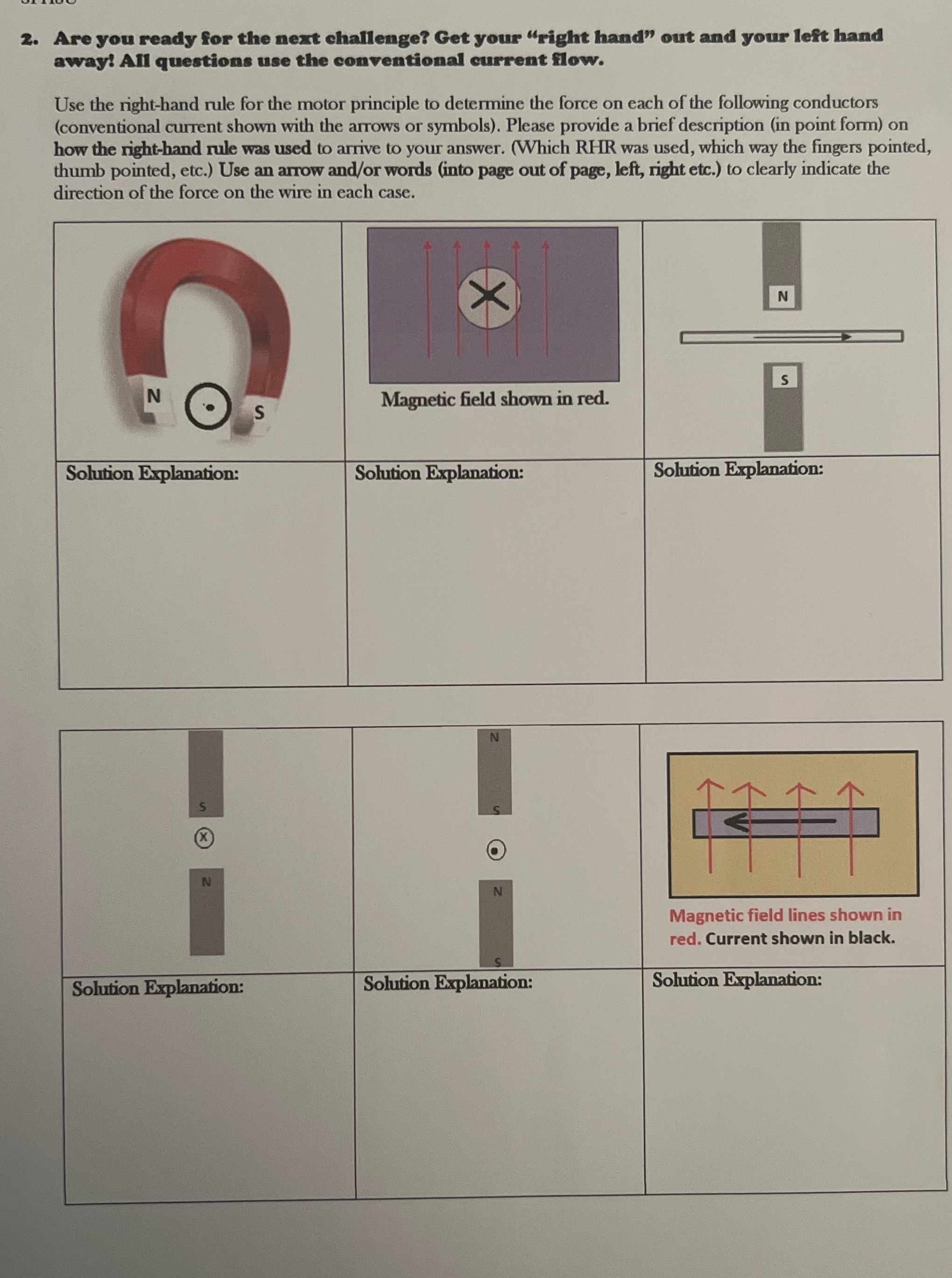

2. Are you ready for the next challenge? Get your "right hand" out and your left hand away! All questions use the conventional current flow. Use the right-hand rule for the motor principle to determine the force on each of the following conductors (conventional current shown with the arrows or symbols). Please provide a brief description (in point form) on how the right-hand rule was used to arrive to your answer. (Which RHR was used, which way the fingers pointed, thumb pointed, etc.) Use an arrow and/or words (into page out of page, left, right etc.) to clearly indicate the direction of the force on the wire in each case. N S O S Magnetic field shown in red. Solution Explanation: Solution Explanation: Solution Explanation: S (X O N N Magnetic field lines shown in red. Current shown in black. Solution Explanation: Solution Explanation: Solution Explanation
