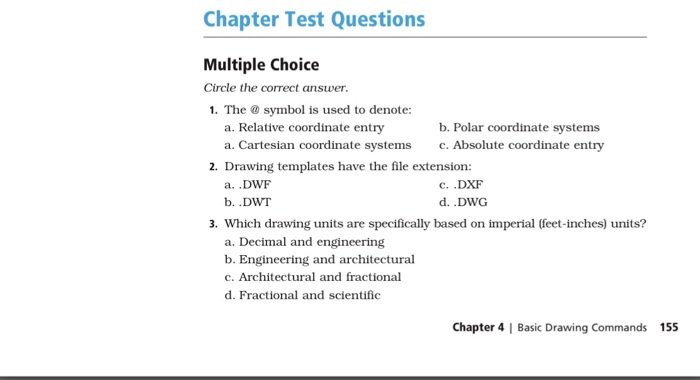

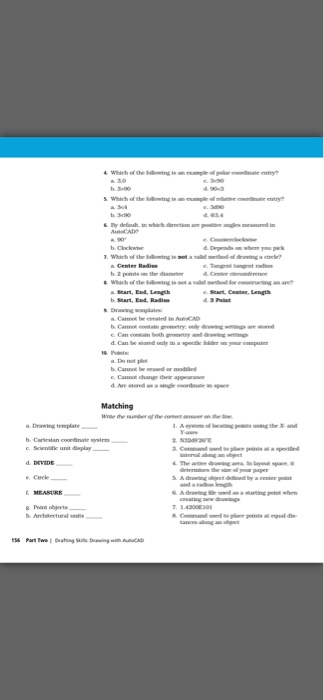

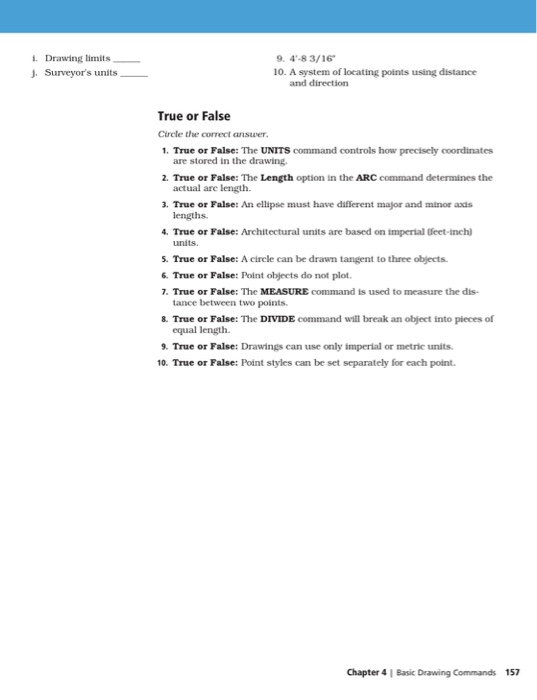

Chapter Test Questions Multiple Choice Circle the correct answer 1. Thesymbol is used to denote: a. Relative coordinate entry a. Cartesian coordinate systems b. Polar coordinate systems c. Absolute coordinate entry 2. Drawing templates have the file extension a. .DWF b. .DWT c. .DXF d. .DWG 3. Which drawing units are specifically based on imperial (feet-inches) units? a. Decimal and engineering b. Engineering and architectural c. Architectural and fractional d. Fractional and scientific Chapter 4 Basic Drawing Commands 155 i. Drawing limits_ J. Surveyor's units- 94-8 3/ 16" 10. A system of locating points using distance and direction True or False Circle the correct answer 1. True or False: The UNITS command controls how precisely coordinates are stored in the drawing. 2. True or False: The Length option in the ARC command determines the actual are length. . True or False: An ellipse must have different major and minor ads lengths 4. True or False: Architectural units are based on imperial (feet-inchl units. 5. True or False: A cirele can be drawn tangent to three objects. 6. True or False: Point objects do not plot 7. True or False: The MEASURE command is used to measure the dis- tance between two points. 8. True or False: The DIVIDE command will break an object into pieces of equal length. 9. True or False: Drawings can use only imperial or metric units. 10. True or False: Point styles can be set separately for each point. Chapter 4 Basc Drawing Commands 157
