image text in transcribed

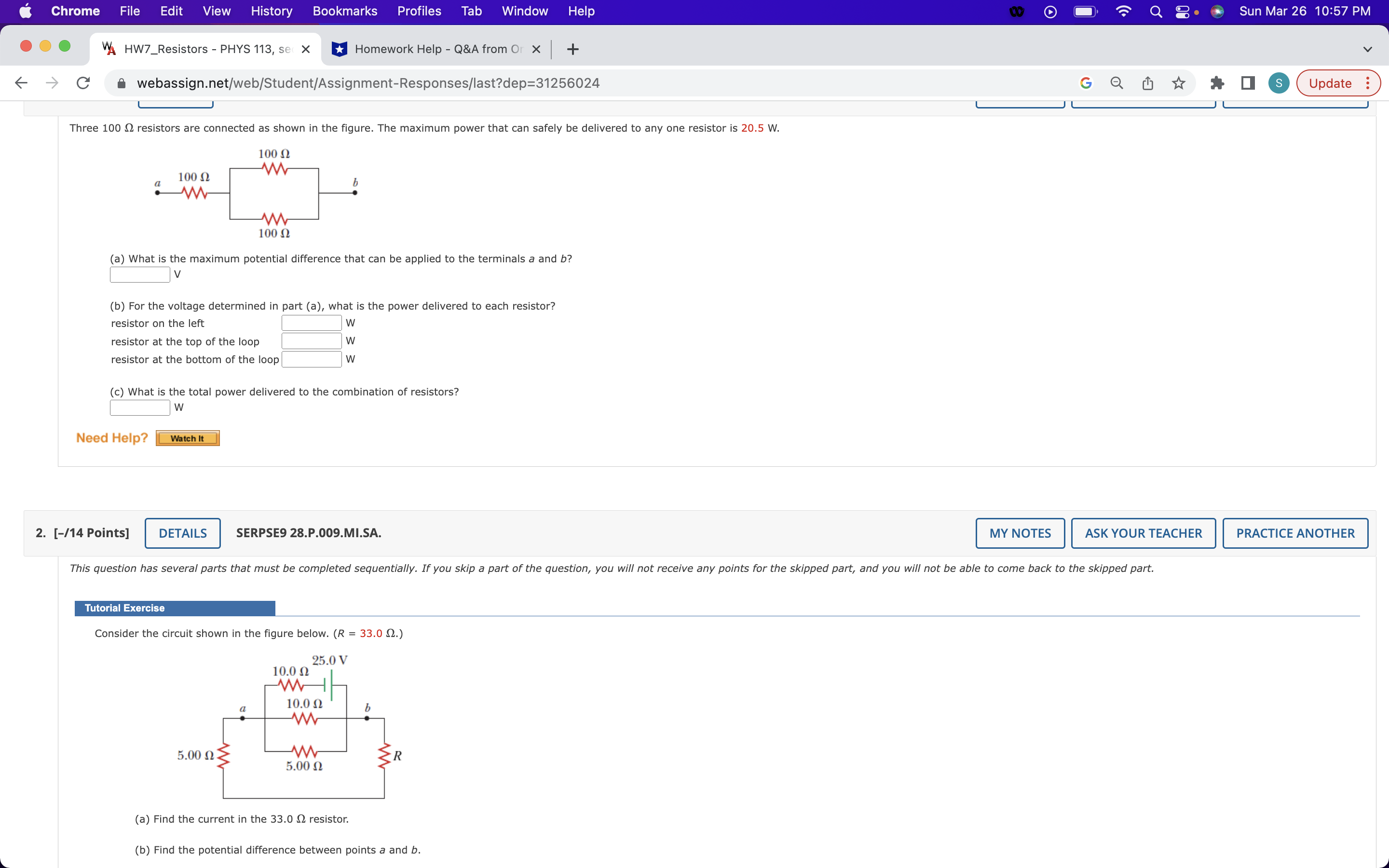

Chrome File Edit View History Bookmarks Profiles Tab Window Help CD 0 7 Q g. Sun Mar 26 10:57 PM ... VA HW7_Resistors - PHYS 113, se X *Homework Help - Q&A from Or x + -> C webassign.net/web/Student/Assignment-Responses/last?dep=31256024 Update : Three 100 0 resistors are connected as shown in the figure. The maximum power that can safely be delivered to any one resistor is 20.5 W. 100 0 100 0 a 100 0 (a) What is the maximum potential difference that can be applied to the terminals a and b? V (b) For the voltage determined in part (a), what is the power delivered to each resistor? resistor on the left resistor at the top of the loop W resistor at the bottom of the loop w (c) What is the total power delivered to the combination of resistors? W Need Help? Watch It 2. [-/14 Points] DETAILS SERPSE9 28.P.009.MI.SA. MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER This question has several parts that must be completed sequentially. If you skip a part of the question, you will not receive any points for the skipped part, and you will not be able to come back to the skipped part. Tutorial Exercise Consider the circuit shown in the figure below. (R = 33.0 0.) 10.0 0 25.0 V 10.0 0 5.00 0z

Step by Step Solution
