Question

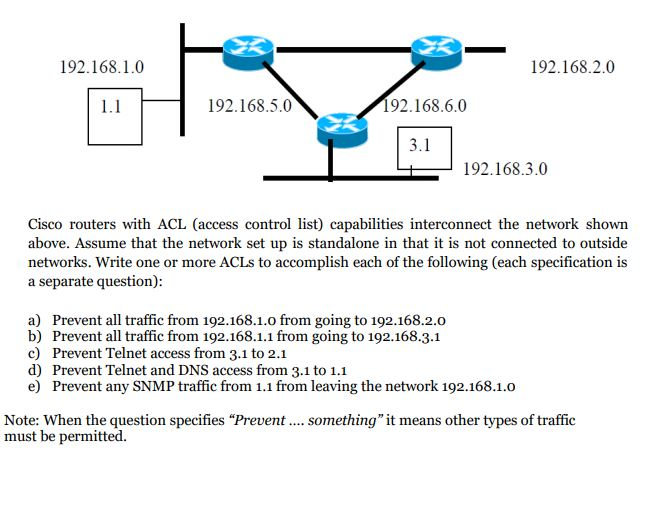

Cisco routers with ACL (access control list) capabilities interconnect the network shown above. Assume that the network set up is standalone in that it is
Cisco routers with ACL (access control list) capabilities interconnect the network shown above. Assume that the network set up is standalone in that it is not connected to outside networks. Write one or more ACLs to accomplish each of the following (each specification is a separate question):
a) Prevent all traffic from 192.168.1.0 from going to 192.168.2.0
b) Prevent all traffic from 192.168.1.1 from going to 192.168.3.1
c) Prevent Telnet access from 3.1 to 2.1
d) Prevent Telnet and DNS access from 3.1 to 1.1
e) Prevent any SNMP traffic from 1.1 from leaving the network 192.168.1.0
