Cold water (at 5C ) flows up through the vertical pipe that is connec to the expansion joint as shown in the figure. Two open-enc

image text in transcribed

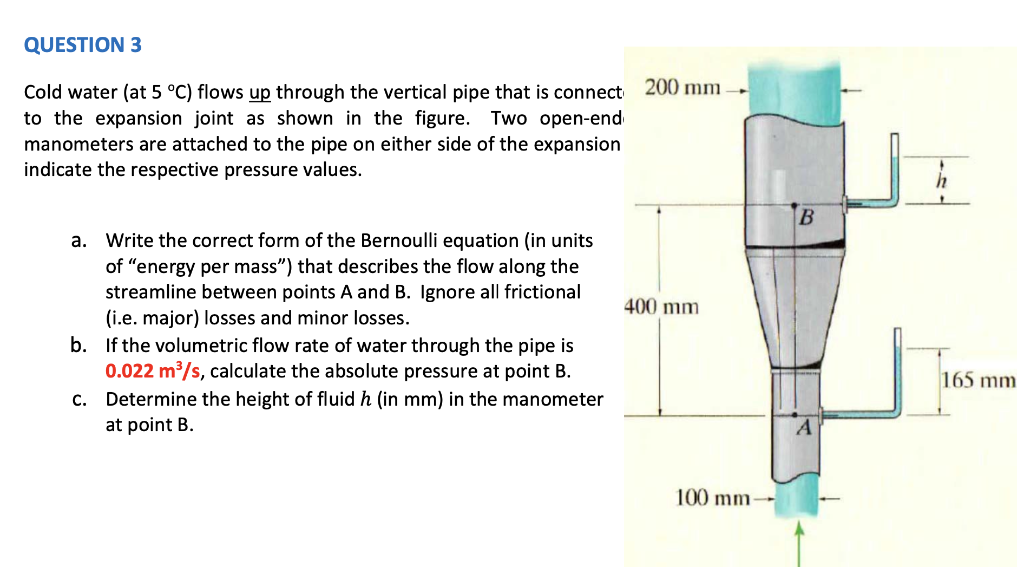

Cold water (at 5C ) flows up through the vertical pipe that is connec to the expansion joint as shown in the figure. Two open-enc manometers are attached to the pipe on either side of the expansion indicate the respective pressure values. a. Write the correct form of the Bernoulli equation (in units of "energy per mass") that describes the flow along the streamline between points A and B. Ignore all frictional (i.e. major) losses and minor losses. b. If the volumetric flow rate of water through the pipe is 0.022m3/s, calculate the absolute pressure at point B. c. Determine the height of fluid h (in mm ) in the manometer at point B
