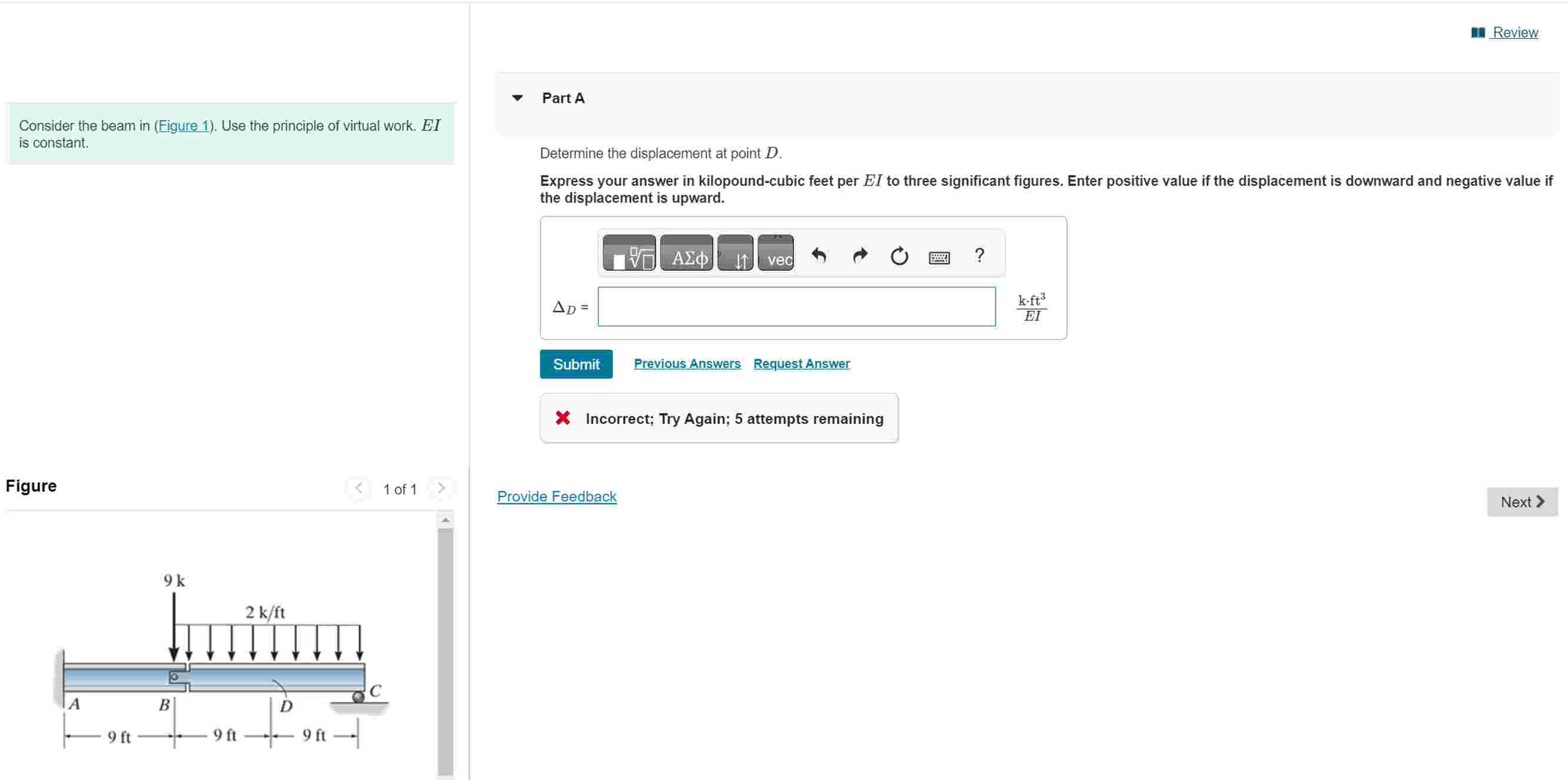

Question: Consider the beam in ( Figure 1 ) . Use the principle of virtual work. EI is constant. Part A Determine the displacement at point

Consider the beam in

(

Figure

1) .

Use the principle of virtual work. EI is constant.

Part A

Determine the displacement at point

\ (

\) .

Express your answer in kilopound

-

cubic feet per EI to three significant figures. Enter positive value if the displacement is downward and negative value if the displacement is upward.

Incorrect; Try Again;

5

attempts remaining

Provide Feedback

Consider the beam in ( Figure 1 ) . Use the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
