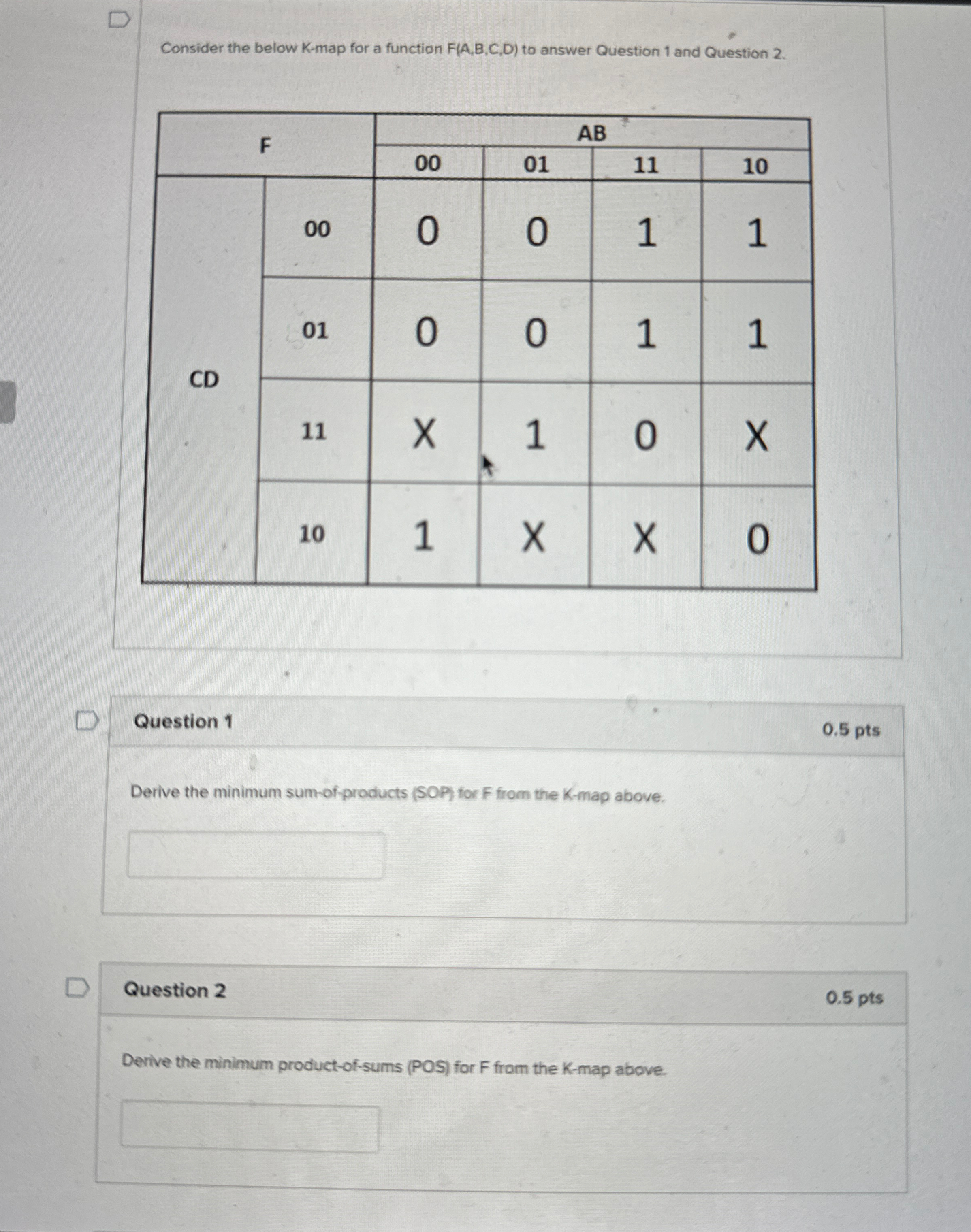

Consider the below K - map for a function F ( A , B , C , D ) to answer Question 1 and Question

Consider the below K-map for a function F(A,B,C,D) to answer Question 1 and Question 2.
\table[[F,AB],[,00,01,11,10,,],[CD,00,0,0,1,1,],[01,0,0,1,1,],[11,x,1,0,x,],[10,1,x,x,0,]]
Question 1
0.5 pts
Derive the minimum sum-of-products (SOP) for F from the K-map above.
Question 2
0.5 pts
Derive the minimum product-of-sums (POS) for F from the K-map above
image text in transcribed
