Consider the following Circuit : a . Write the Boolean expression corresponding to the circuit above b . Draw a circuit for the following Boolean

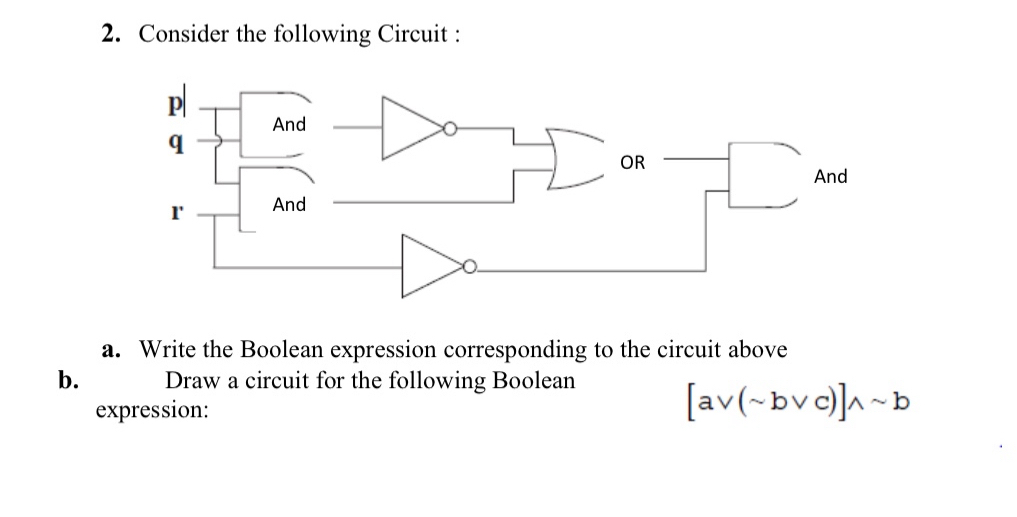

Consider the following Circuit :

.

Write the Boolean expression corresponding to the circuit above

.

Draw a circuit for the following Boolean expression:

[a v v (b v v c)]^{?^{?}} b
