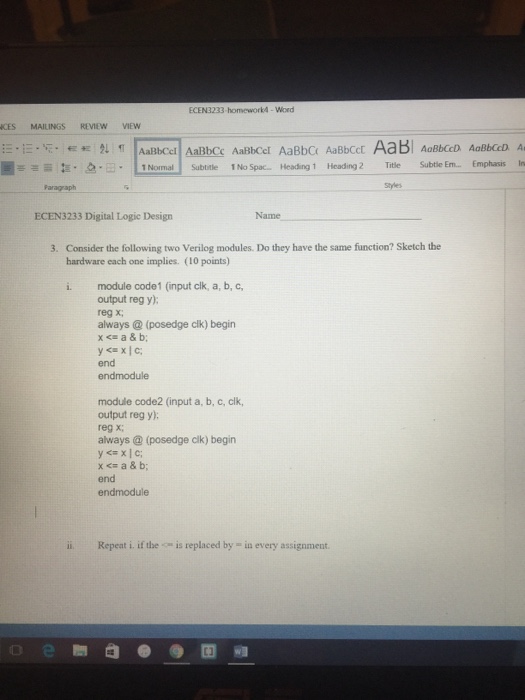

Question: Consider the following two Verilog modules. Do they have the same function? Sketch the hardware each one implies i. module code1(input clk, a, b, c

Consider the following two Verilog modules. Do they have the same function? Sketch the hardware each one implies i. module code1(input clk, a, b, c output reg y); re x; always @ (posedge clk) begin x

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
