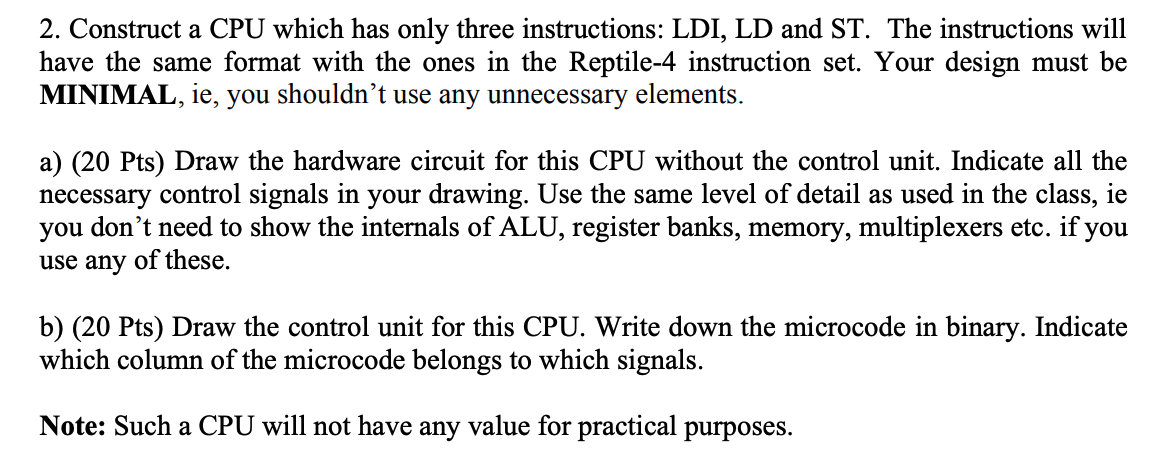

Construct a CPU which has only three instructions: LDI, LD and ST . The instructions will have the same format with the ones in the
Construct a CPU which has only three instructions: LDI, LD and ST The instructions will
have the same format with the ones in the Reptile instruction set. Your design must be
MINIMAL, ie you shouldn't use any unnecessary elements.
a Pts Draw the hardware circuit for this CPU without the control unit. Indicate all the
necessary control signals in your drawing. Use the same level of detail as used in the class, ie
you don't need to show the internals of ALU, register banks, memory, multiplexers etc. if you
use any of these.
b Pts Draw the control unit for this CPU. Write down the microcode in binary. Indicate
which column of the microcode belongs to which signals.
Note: Such a CPU will not have any value for practical purposes.
